Econo Center Drain Washing Machine Outlet Boxes with Hammer Arrester Valves

Product Description and Features

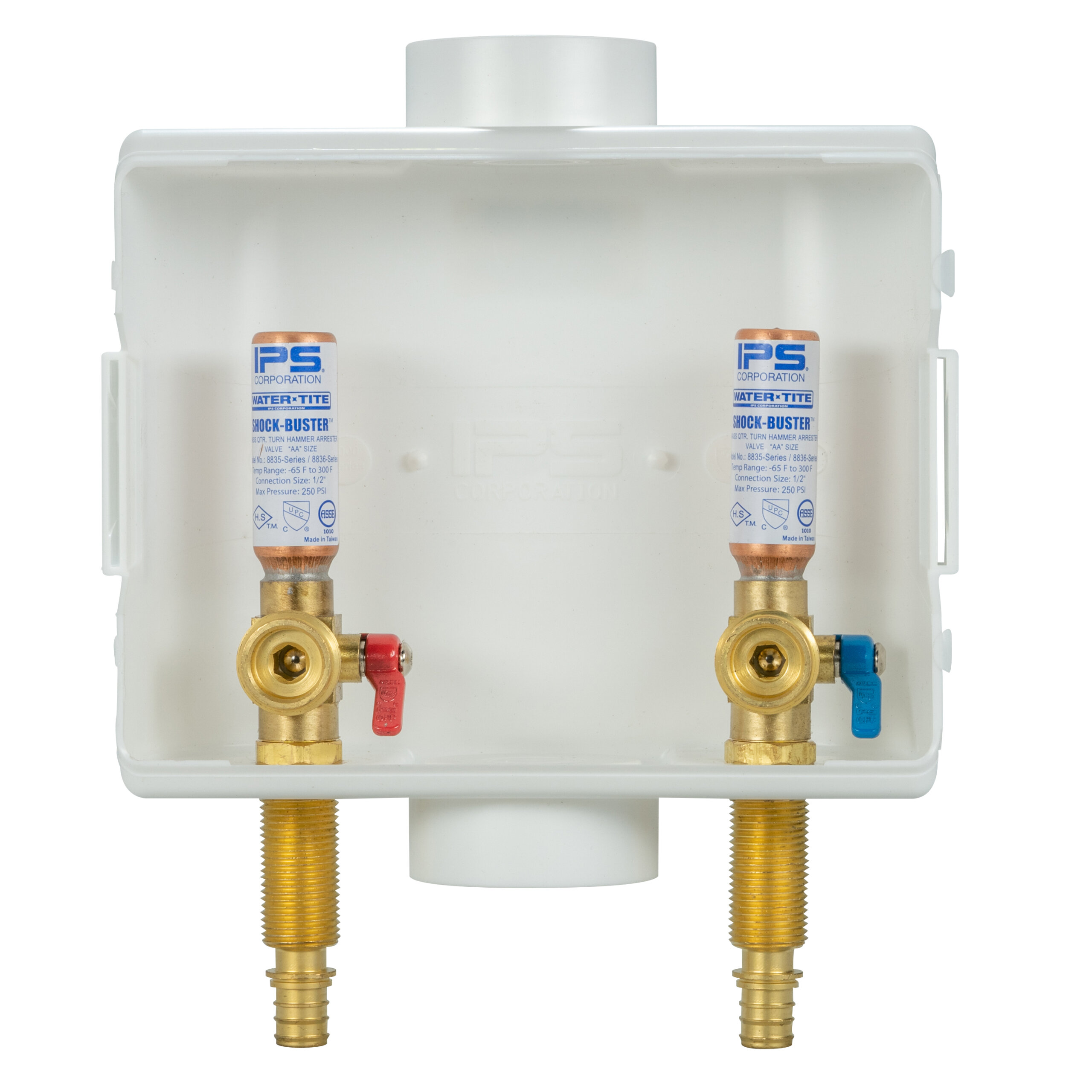

Designed for simple yet versatile installation, the Water-Tite Econo Box Center-Drain Washing Machine Outlet Box is thoughtfully constructed to reduce labor for contractors and homeowners. This outlet box comes with pre-installed quarter-turn brass valves and features a box design that can be inverted for top-mount valves with a center drain. Integrated hammer arresters inside the valves absorb sudden pressure changes to reduce stress on the plumbing system, providing continuous and maintenance-free protection against water hammer. The EZ Out test cap is raised for quick removal, and the knockouts are oversized, so they won’t fall down the drain. And thanks to a single-piece construction that includes a raised drip guard, any potential hose or valve leaks will be contained and sent directly down the drain instead of onto the laundry room wall and floor. Featuring a one-piece design, this washing machine outlet box can be installed more quickly than separate drain and valve boxes. It comes with a snap-on faceplate that measures 10-3/16 inches wide by 8-13/16 inches high and is interchangeable with DU-All outlet-box faceplates. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

  • Center-drain washing machine outlet box; includes 2 pre-installed valves with hammer arresters
  • Can be inverted for top-mount valves and center drain option
  • Built-in drip guard sends leaks directly down the drain
  • Raised EZ Out test cap designed for easy removal after drain-line testing; oversized knockouts won’t fall down the drain
  • Snap-on faceplate measures 10-3/16 inches wide by 8-13/16 inches high
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Hammer Arrester Standard Packs

85708

Brass Qtr-turn Arrester Valves, Installed, 1/2″ Sweat Conx.

W4700HA

10

85711

Brass Qtr-turn Arrester Valves, Installed, 1/2″ CPVC Conx.

W4701HA

10

85716

Brass Qtr-turn Arrester Valves, Installed, 1/2″ F1807 Conx.

W4702HA

10

85738

Brass Qtr-turn Arrester Valves, Installed, 1/2″ F1960

W4711HA

10

82754

Brass Qtr-turn Arrester Valves, Installed, 1/2″ REHAU EVERLOC+

W4705HA

10

Hammer Arrester Contractor Packs

85709

Brass Qtr-turn Arrester Valves, Installed, 1/2″ Sweat Conx.

W4700HACP

20

85713

Brass Qtr-turn Arrester Valves, Installed, 1/2″ Sweat Conx./Less Frame

W4700HACPLF

20

85712

Brass Qtr-turn Arrester Valves, Installed, 1/2″ CPVC Conx.

W4701HACP

20

85722

Brass Qtr-turn Arrester Valves, Installed 1/2″ F1807

W4702HACP

20

85739

Brass Qtr-turn Arrester Valves, Installed, 1/2″ F1960

W4711HACP

20

82755

Brass Qtr-turn Arrester Valves, Installed, 1/2″ REHAU EVERLOC+

W4705HACP

20

Don’t see the box you need? Call Customer Service at 800-888-8312.
