Mainline® Adapt-a-Valve TEST-EZE Gate

Product Description and Features

The TEST-EZE Tee was produced because there was a need for a safe, economical, and easy to use method for pressure testing DWV drainage systems. The TEST-EZE Tee can be used for extendible or non extendible pressure testing, horizontal and vertical pressure testing. This fitting is available for 3” pipe with a 4” riser for extendible applications. The test gate is a disc with an o-ring that slides into the Test Tee (o-ring on the ‘test side’)for pressure testing up to 50 psi (100+ feet). The Test Tee has two knockouts built into the body. By knocking out the knock-out and solvent welding a piece of ½” pipe and hose connection you may fill the system through the tee!

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

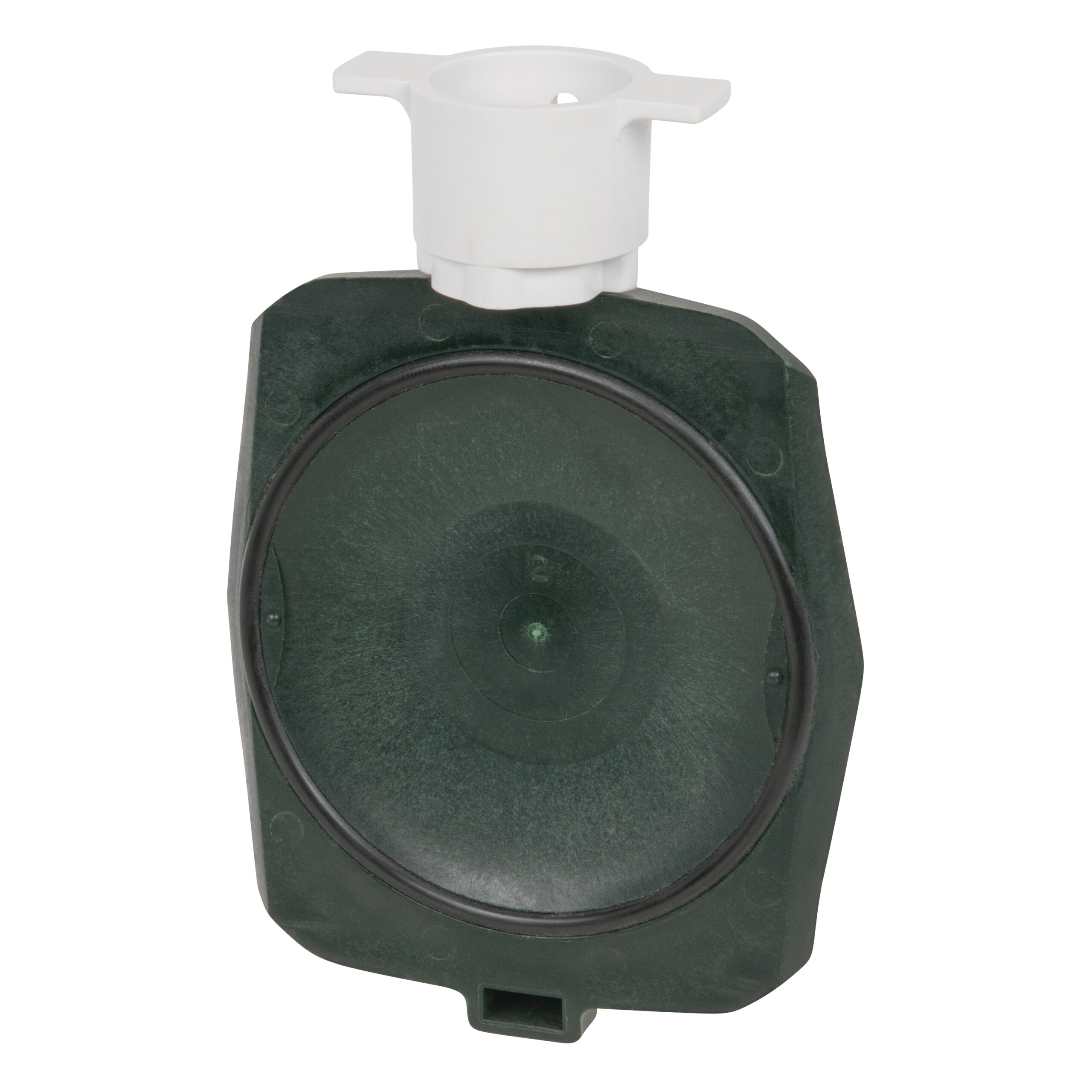

Extendable 3″ Adapt-A-Valve – Parts

66109

TEST-EZE Gate/Pressure testing

ABAML3TZ

24

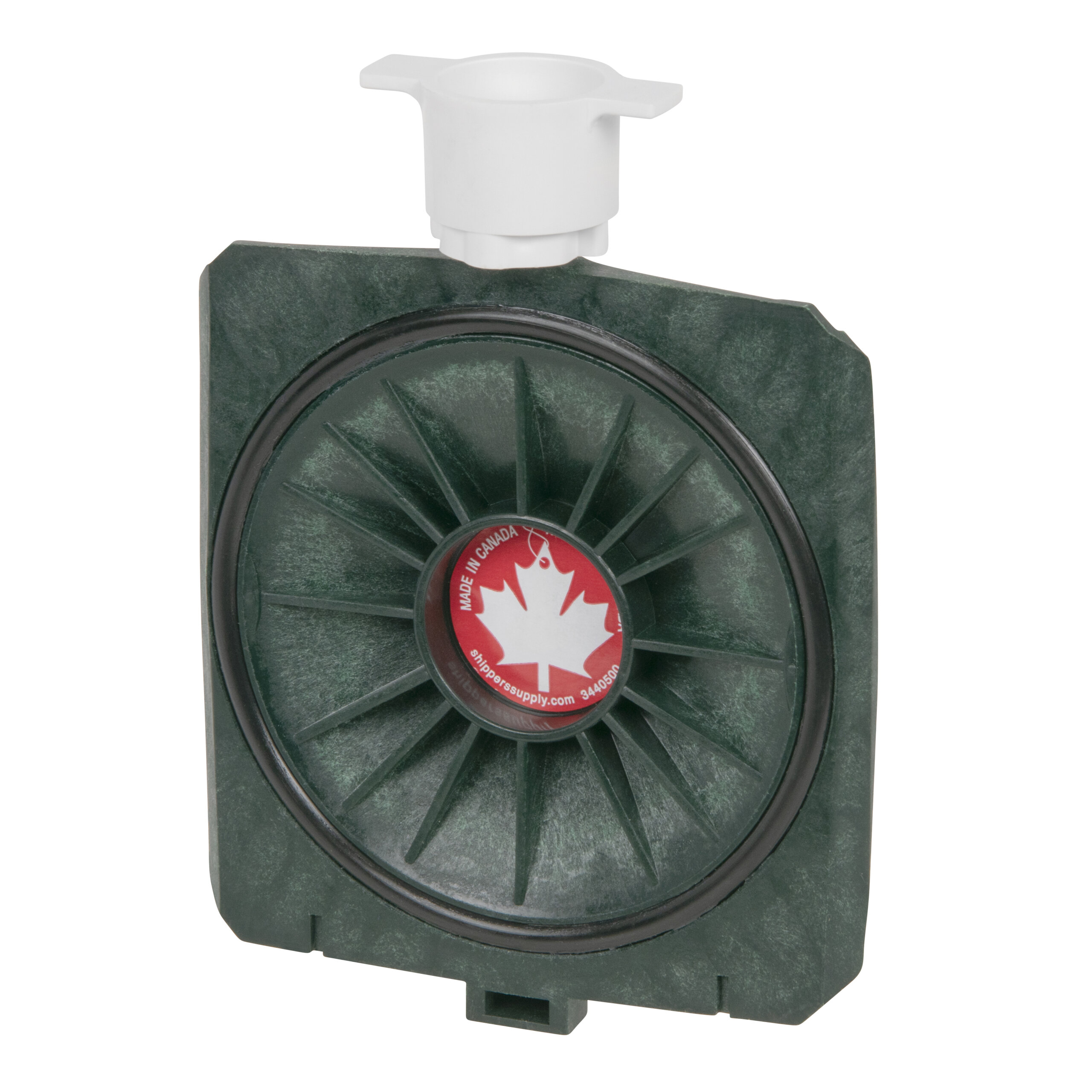

Extendable 4″ Adapt-A-Valve – Parts

66114

TEST-EZE Gate/Pressure testing

ABAML4TZ

24

66115

TEST-EZE Gate/Pressure testing (bagged with key)

ABAML4TZB

24

Don’t see the product you need? Call Customer Service at 800-888-8312.
