Integral Trap Floor Drain

Product Description and Features

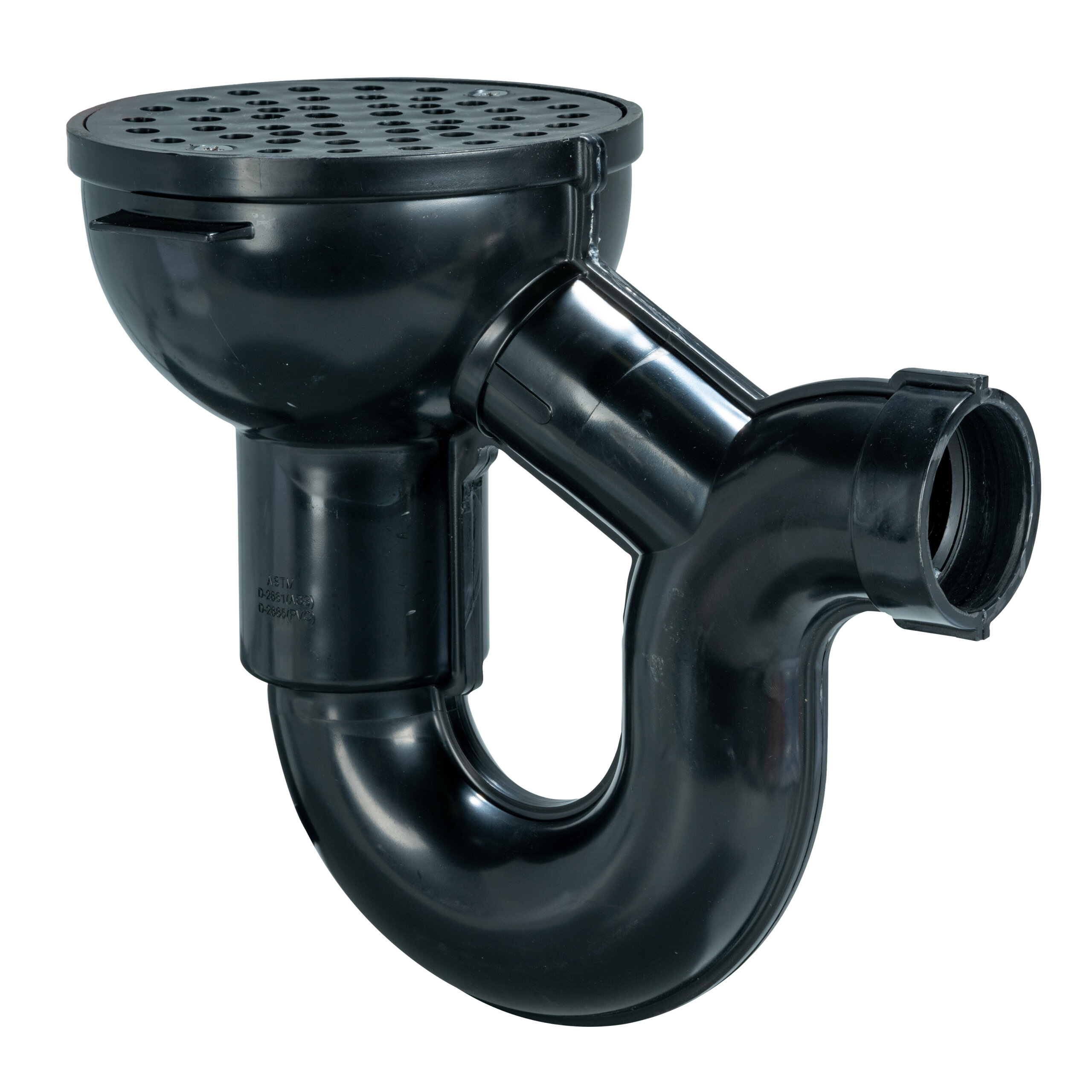

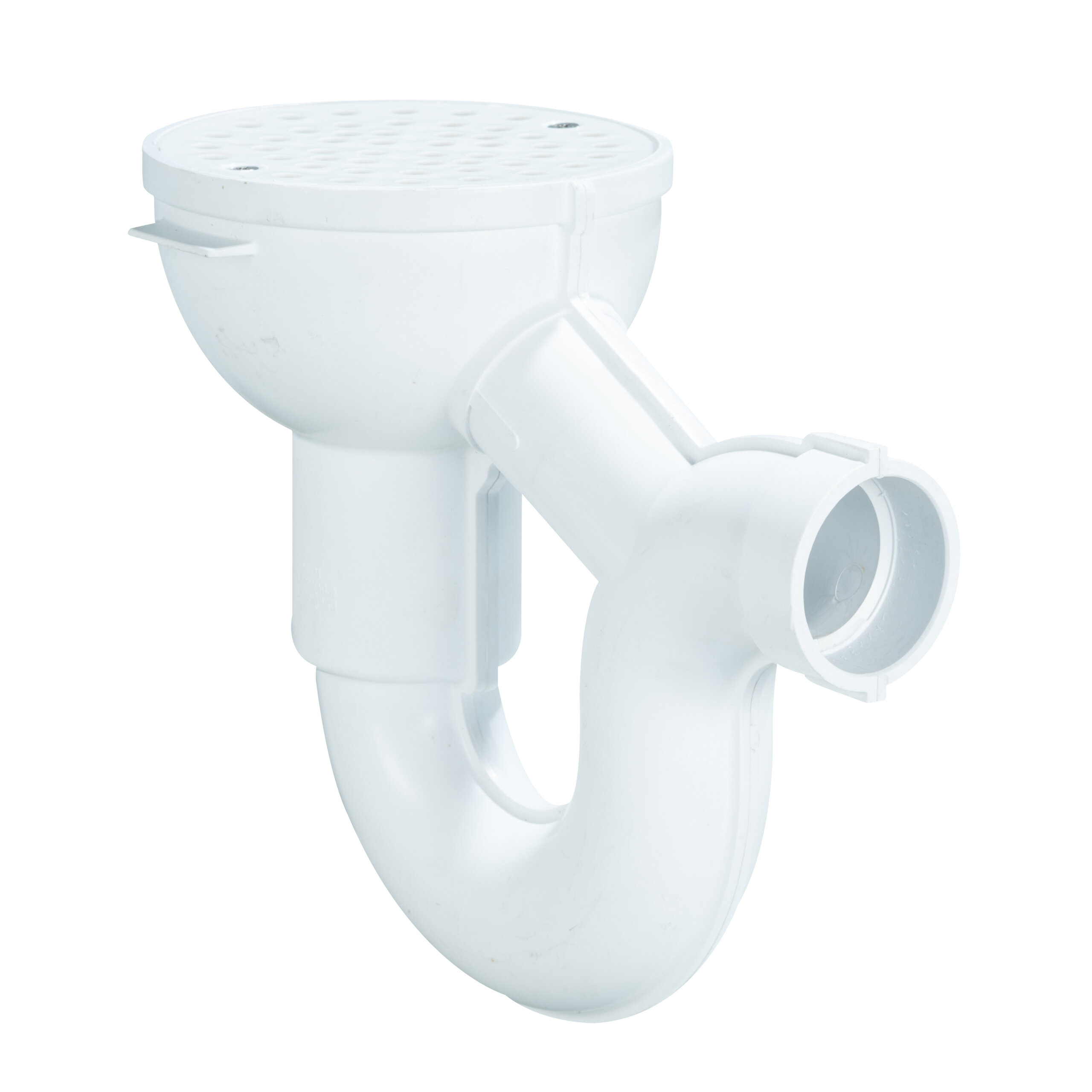

The AB&A Floor Drain with Integral Trap is a simple yet comprehensive drainage solution for light-to-medium commercial applications. Constructed with a single-piece plastic design, this ABS floor drain features a 3-3/4-inch-deep sump bowl with a polypropylene grid. The 3-inch integral trap has a curved design that automatically traps wastewater in the arc of the piping to create a water seal, preventing unpleasant gases from entering the building. For easy access to the piping in case of backups or foreign materials, this drain includes an integrated cleanout with a factory-installed 1-1/2-inch cleanout plug. The AB&A Floor Drain with Integral Trap is available with or without a backwater device that allows drainage while preventing sewage backup. AB&A bath wastes, drains, fittings, cleanouts, and associated accessories are available in a variety of configurations and finishes to complement today’s designs and customer preferences, delivering consistent high quality in both new construction and retrofit markets.

• Floor drain with one-piece ABS drain body and polypropylene grid
• Integrated cleanout with factory-installed 1-1/2-inch cleanout plug
• Conforms to ASTM D2661 (ABS) / ASTM D2665 (PVC)
• 3 ¾" deep sump bowl
• 3" trap seal
• Available with or without backwater device
