Classic Full Kits with Test Kit

Schedule 40 Waste & Overflow

Product Description and Features

The AB&A Waste and Overflow Full Kit includes everything you need to replace or install a new waste and overflow system in your bathtub. Compatible with Schedule 40 ABS, this full kit comes with pipes and tee—center-to-center measurements of 14-1/4 inches in height and 7-3/8 inches in length. It also includes a high-flow-capacity overflow plate that is slotted to provide greater drainage through the tub overflow, draining water at a rate of 7 GPM (gallons per minute) compared to the output of a typical tub spout of 5-6 GPM. Designed for quick, tool-free installation, this waste and overflow kit features a convenient push-on overflow plate that secures to the overflow elbow with a simple push for a snug fit against the tub wall. An additional thin gasket is included for thick-walled tubs made of material such as marble, as well as a test kit that allows the waste and overflow system to be pressure tested for safety. The stopper, strainer, and overflow plate all feature a chrome finish.

  • “Classic” high-flow capacity slotted overflow plate provides greater drainage through the tub overflow
  • Thin gasket included for thick-walled tubs (e.g. marble)
  • With pipe and tee
  • Strainer and stopper are brass unless noted
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

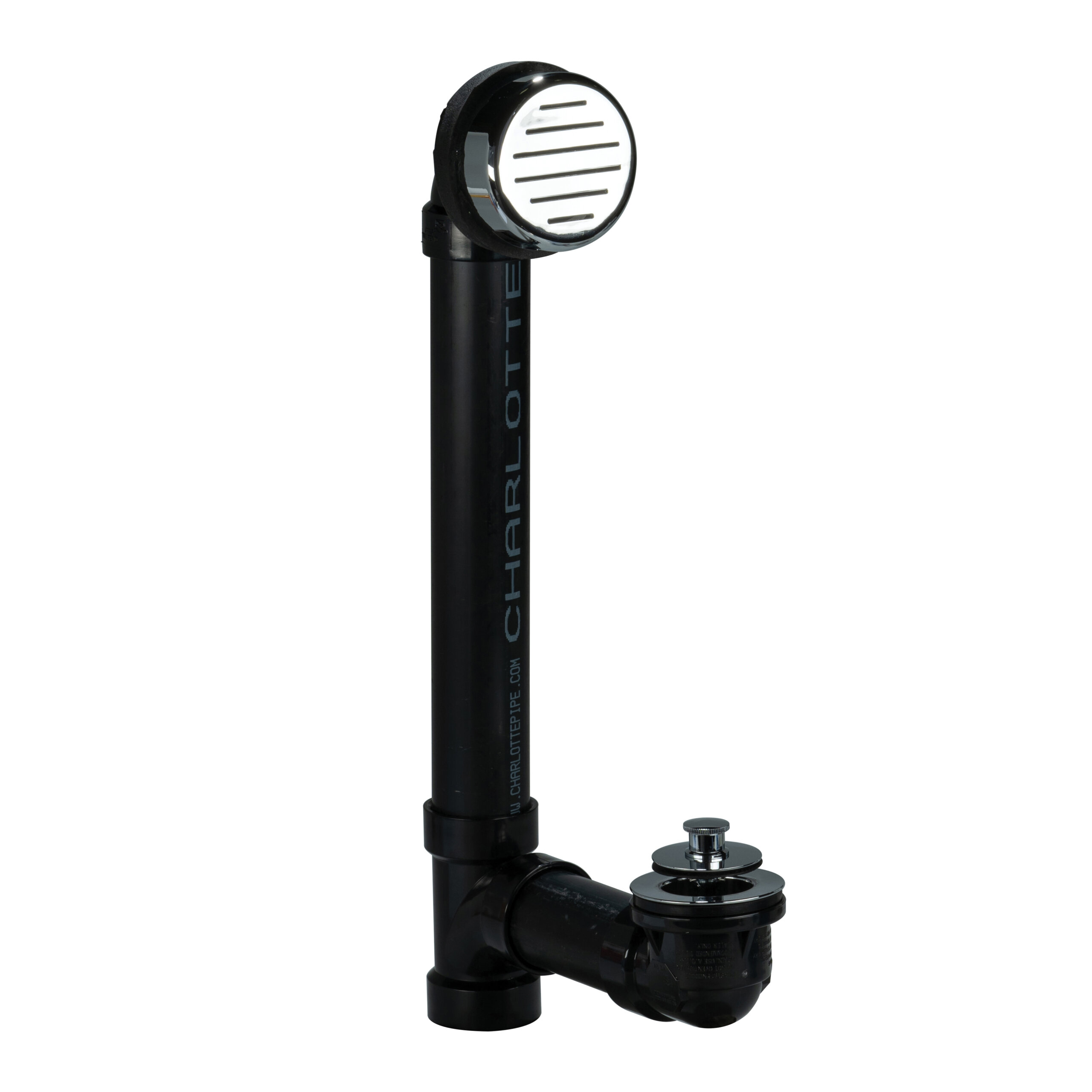

ABS with Classic Test Kit

62094

ABS with Push eN Lift Chrome Stopper

ABA2225HF

10

61741

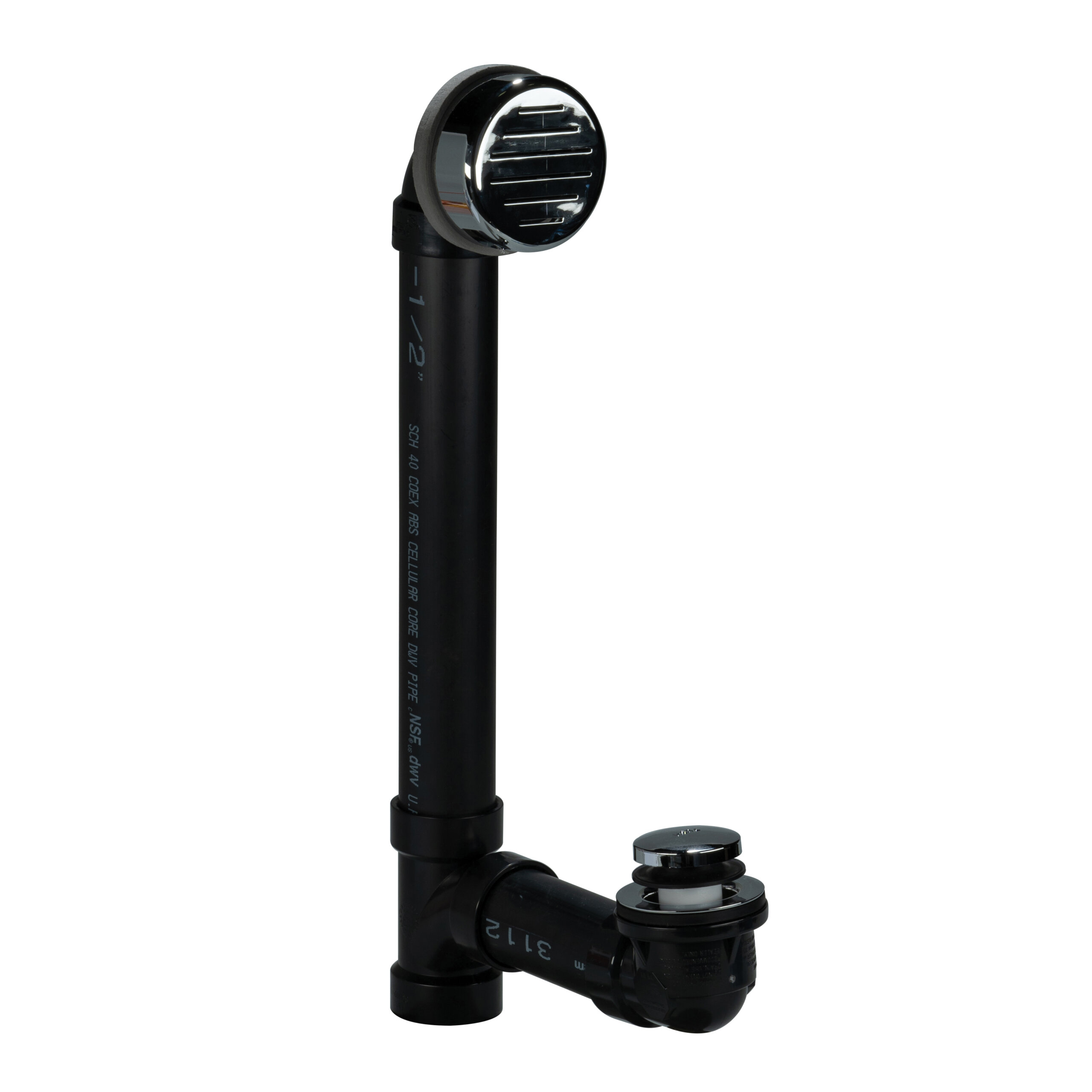

ABS with Turn Top Chrome Stopper

ABA2258HF

10

61236

ABS with Touch Toe Chrome Stopper

ABA2242CSHF

10

61226

ABS with Flip Top Chrome Stopper

ABA2210HF

10

PVC with Classic Test Kit

61023

PVC with Push eN Lift Chrome Stopper

ABA2226HF

10

61025

PVC with Turn Top Chrome Stopper

ABA2259HF

10

61024

PVC with Touch Toe Chrome Stopper

ABA2243CSHF

10

Don’t see the product you need? Call Customer Service at 800-888-8312.
