Classic One-Piece Direct Drain Full Kits with Flex Pipe and Test Kit

Schedule 40 Waste & Overflow

Product Description and Features

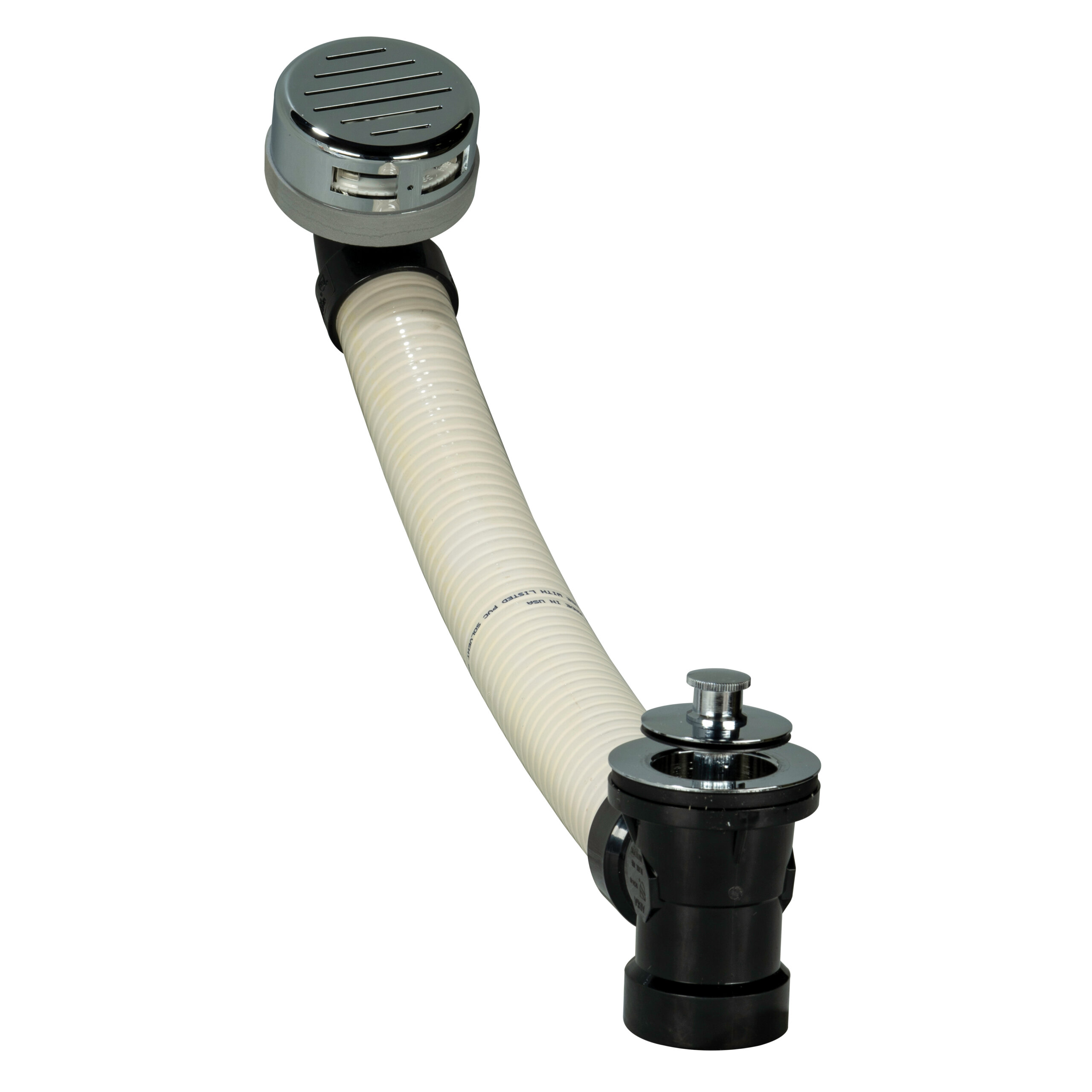

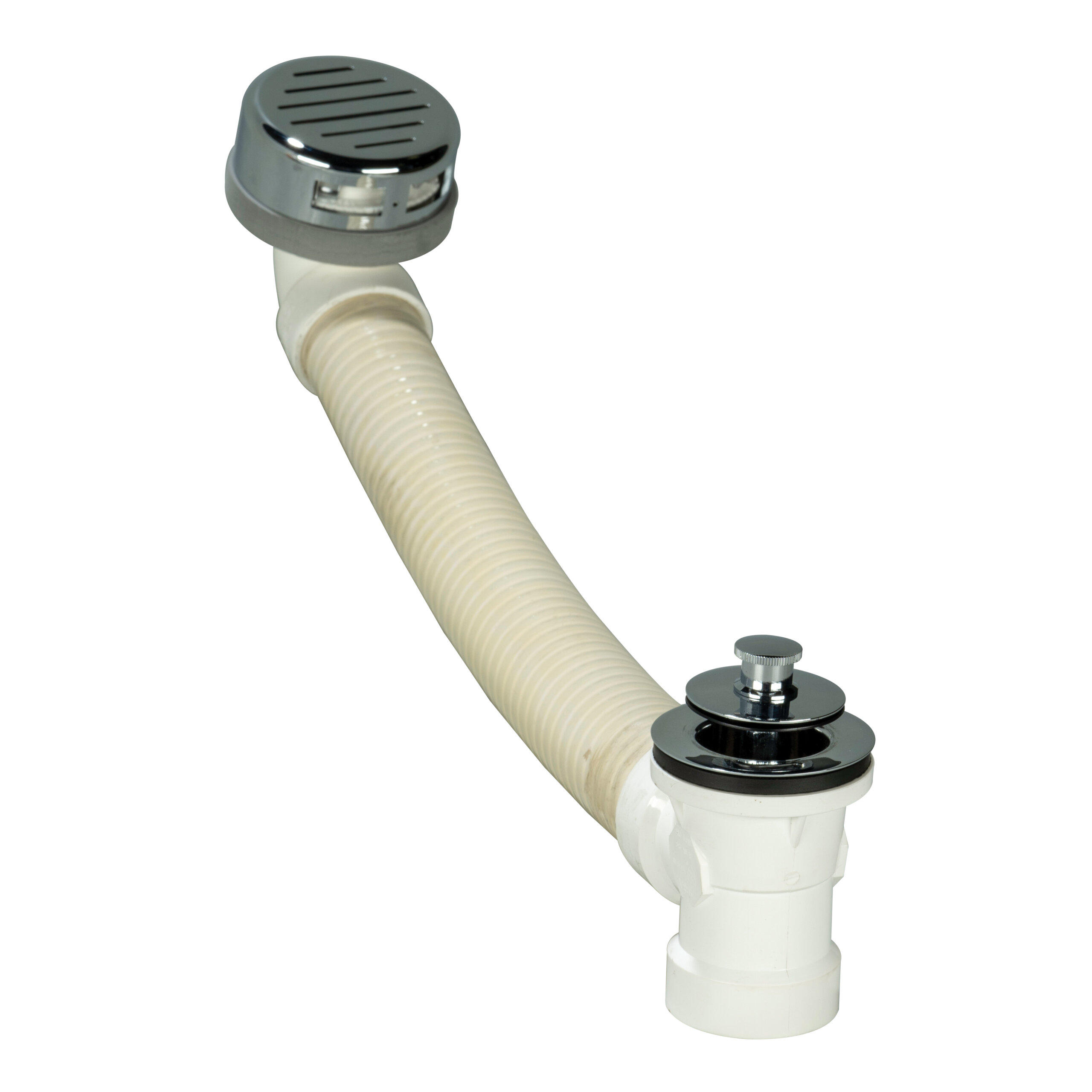

The AB&A Classic Waste and Overflow Direct Drain Full Kit gives installers the confidence that they will complete the job correctly the first time. Ideal for use in installations where baths are installed back to back, such as apartments, hotels, and condos, this ABS full kit includes waste and overflow trim, an overflow elbow, a 1-1/2-inch direct drain shoe, and 16-inch one-piece flex piping for consistent and streamlined installation. The high-flow-capacity overflow plate is slotted to provide greater drainage through the tub overflow, draining water at a rate of 7 GPM (gallons per minute) compared to the output of a typical tub spout of 5-6 GPM. The Push eN Lift Stopper allows for easy plugging and unplugging of the tub drain. Designed for simple, tool-free installation, installers can easily secure the overflow elbow, gasket, and overflow cover plate to the tub without the use of a screwdriver or screws. This kit also includes an extra gasket (thin) for thick-walled tubs as well as a test kit for pressure testing your waste and overflow system. The stopper, strainer, and overflow plate all feature a chrome finish.

• Fully assembled, one-piece FLEX full kit requires no trimming for a faster install
• Available in multiple lengths: 14”, 14.5”, 15” and 16”. For special lengths contact customer service: 800-888-8312
• To ensure proper size of one-piece FLEX is ordered, simply send us your tub manufacturer name and tub model number and IPS will do the rest
• Direct drain shoe is ideal for installations where baths are installed back to back such as apartments, hotels and condos
• Classic high-flow capacity slotted overflow plate provides greater drainage through the tub overflow, and requires no tools to install
• Strainer and stopper are brass unless noted
• California Residents: WARNING – www.P65warnings.ca.gov

• Download Specification Sheet
• 1-Piece FLEX & Direct Drain Literature
