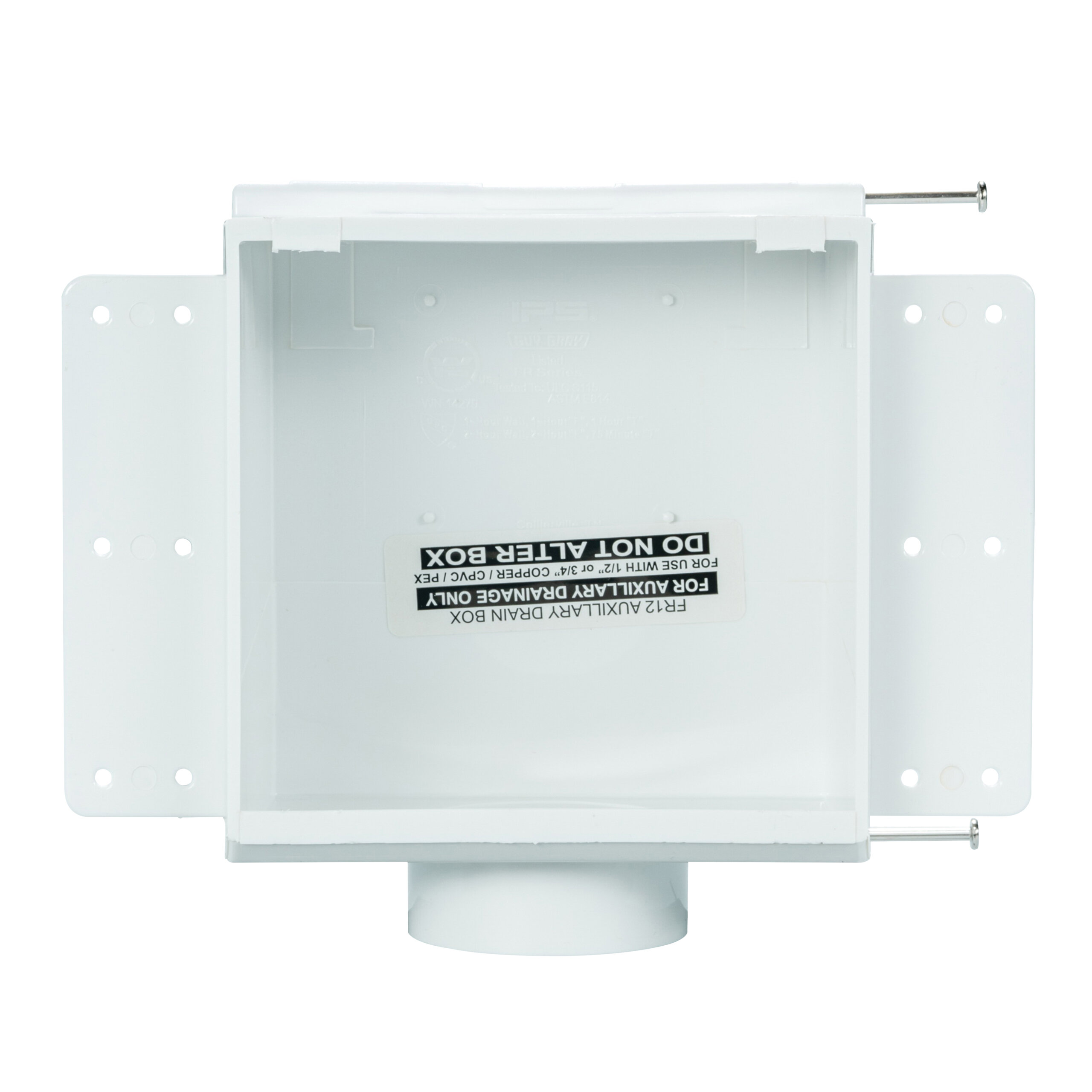

FR-12 Auxiliary Drain Outlet Box

Product Description and Features

Ensure your appliance is properly connected to piping and fits snugly against the wall with the Guy Gray White PVC Resin Fire-Rated Auxiliary Drain Outlet Box. This recessed outlet box is designed to be installed in the stud bay, keeping your drain piping and auxiliary line hidden from view. It is compatible with nominal 2-inch or larger PVC, ABS, or metallic drain pipe and 1/2- or 3/4-inch copper, CPVC, or ASTM 1807 tubing (auxiliary line). Made of high-temperature PVC resin, this fire-rated auxiliary drain outlet box features a snap-on frame and measures 8-5/16 inches wide by 7-7/8 inches high (with faceplate).

  • Intumescent Pad Attached to Back of Outlet Box
  • Molded In Test Cap for Testing of DWV Drain System – Test Cap Will Not Fall Down the Drain
  • Snap-On Frame with Hot & Cold Supply Designations Embossed on Front, Accommodates up to 1" Drywall and is Interchangeable with Dual Drain Washer Box.
  • Simple Installation-Just Nail or Screw to Stud
  • Preloaded Nails for Right or Left Stud Bay Installation
  • One Face Plate Fits Washer, Ice Maker, Gas, AAV and Auxiliary Drain Outlet Boxes
  • ETL Certified
  • 1hr & 2hr Rated
  • Made of High Temperature Resin
  • No Special Wrapping or Sheet Rock Fabrication Needed
  • California Residents: WARNING –






Fire-rated Auxiliary Drain Outlet Box




Replacement Faceplate for Model FR, Plastic
