FR-12 Plastic Air Admittance Valve Recess Outlet Box

Product Description and Features

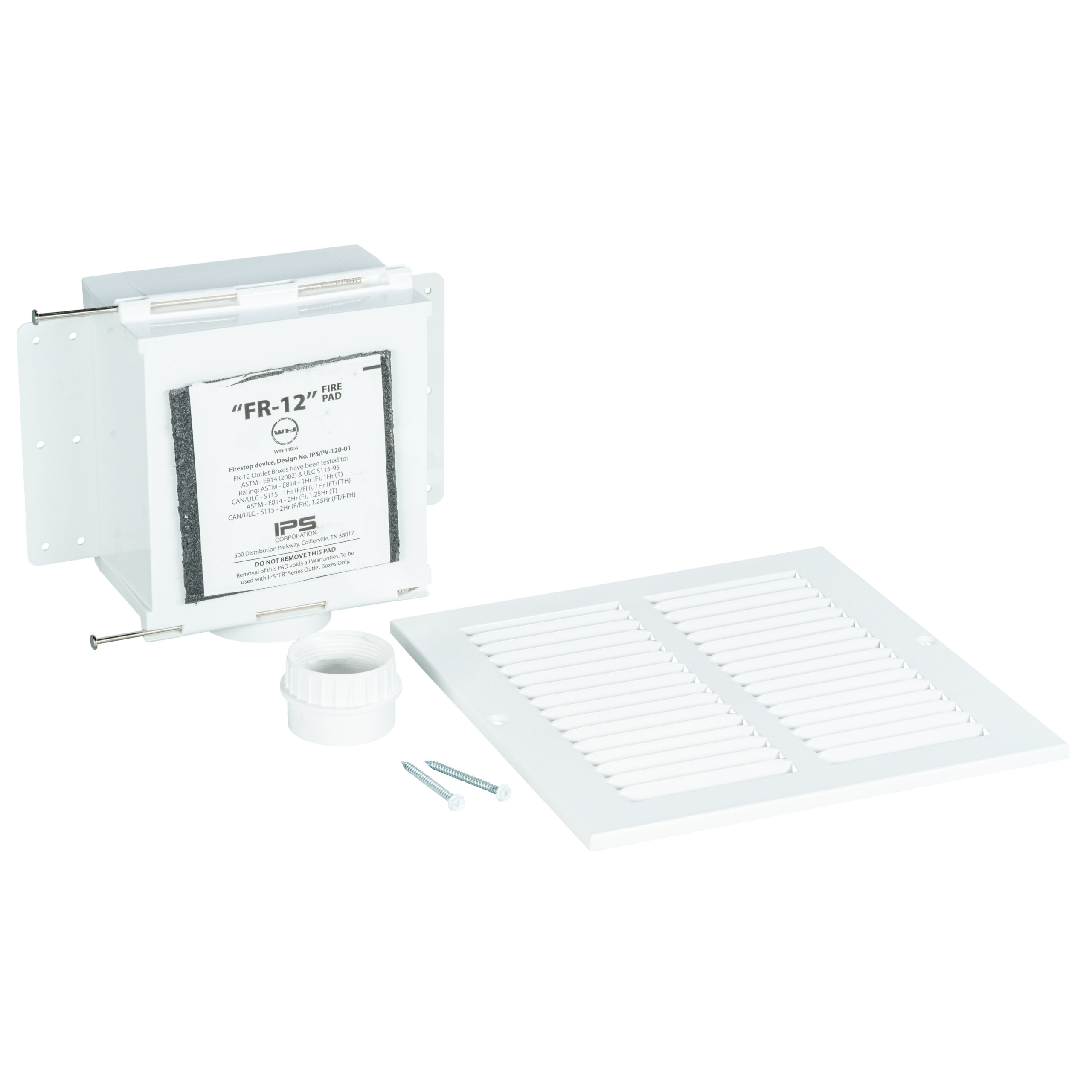

Connect and conceal your air admittance valve with the Guy Gray White PVC Resin Fire-Rated Air Admittance Valve Recess Outlet Box with Grill. This recessed outlet box is designed to be installed in the stud bay and comes with an accessory grill, keeping your air admittance valve hidden from view. Made of high-temperature PVC resin, the fire-rated air admittance valve outlet box measures 9-1/2 inches wide by 9-1/2 inches high (with grill faceplate) and comes with a 1-1/2-inch female adaptor.

• Intumescent Pad Attached to Back of Outlet Box
• Molded In Test Cap for Testing of DWV Drain System – Test Cap Will Not Fall Down the Drain
• Snap-On Frame with Hot & Cold Supply Designations Embossed on Front, Accommodates up to 1" Drywall and is Interchangeable with Dual Drain Washer Box.
• Simple Installation-Just Nail or Screw to Stud
• Preloaded Nails for Right or Left Stud Bay Installation
• One Face Plate Fits Washer, Ice Maker, Gas, AAV and Auxiliary Drain Outlet Boxes
• ETL Certified
• 1hr & 2hr Rated
• Made of High Temperature Resin
• No Special Wrapping or Sheet Rock Fabrication Needed
• California Residents: WARNING – www.P65warnings.ca.gov

• Download Specification Sheet
• Download Design Specification Sheet
