FR-12 Metal Ice Maker Outlet Box

Product Description and Features

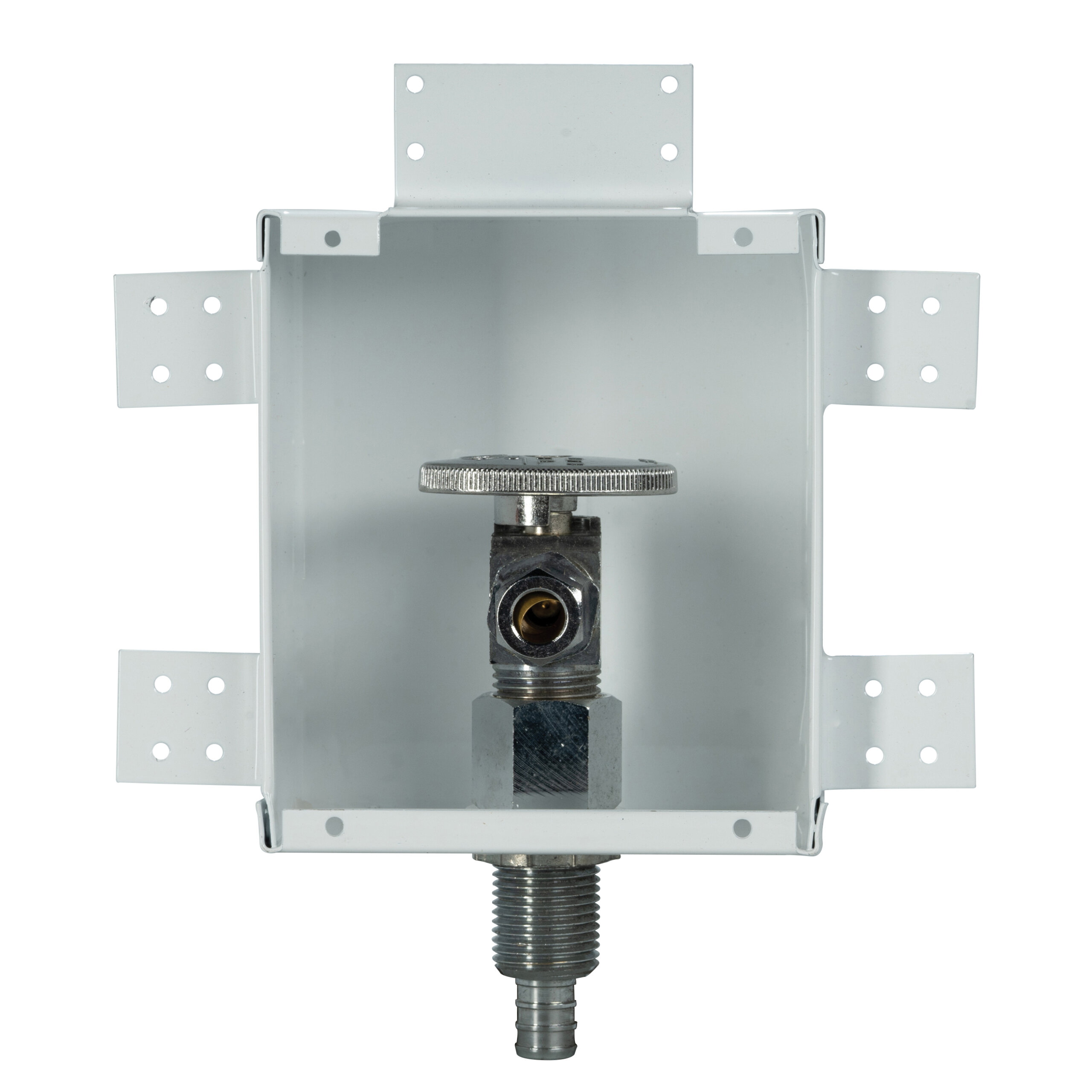

Ensure your icemaker is properly connected to a water supply with the Guy Gray White Powder Coat on 20 Gauge Cold Rolled Steel Fire-Rated Ice Maker Outlet Box. This recessed outlet box is designed to be installed in the stud bay, minimizing bulkiness and increasing living space. It has two intumescent pads and is ETL Certified. Made of heavy-duty cold-rolled steel, this fire-rated icemaker outlet box (with faceplate) measures 8-1/2 inches wide by 8-1/2 inches high and is available with a variety of different valve types.

  • Valves comply with the requirements of NSF 61-G and the “Reduction of Lead in Drinking Water Act” (Federal Public Law 111-380)
  • Valves feature white handle stamping
  • White Powder Coat on 20 Gauge Cold Rolled Steel

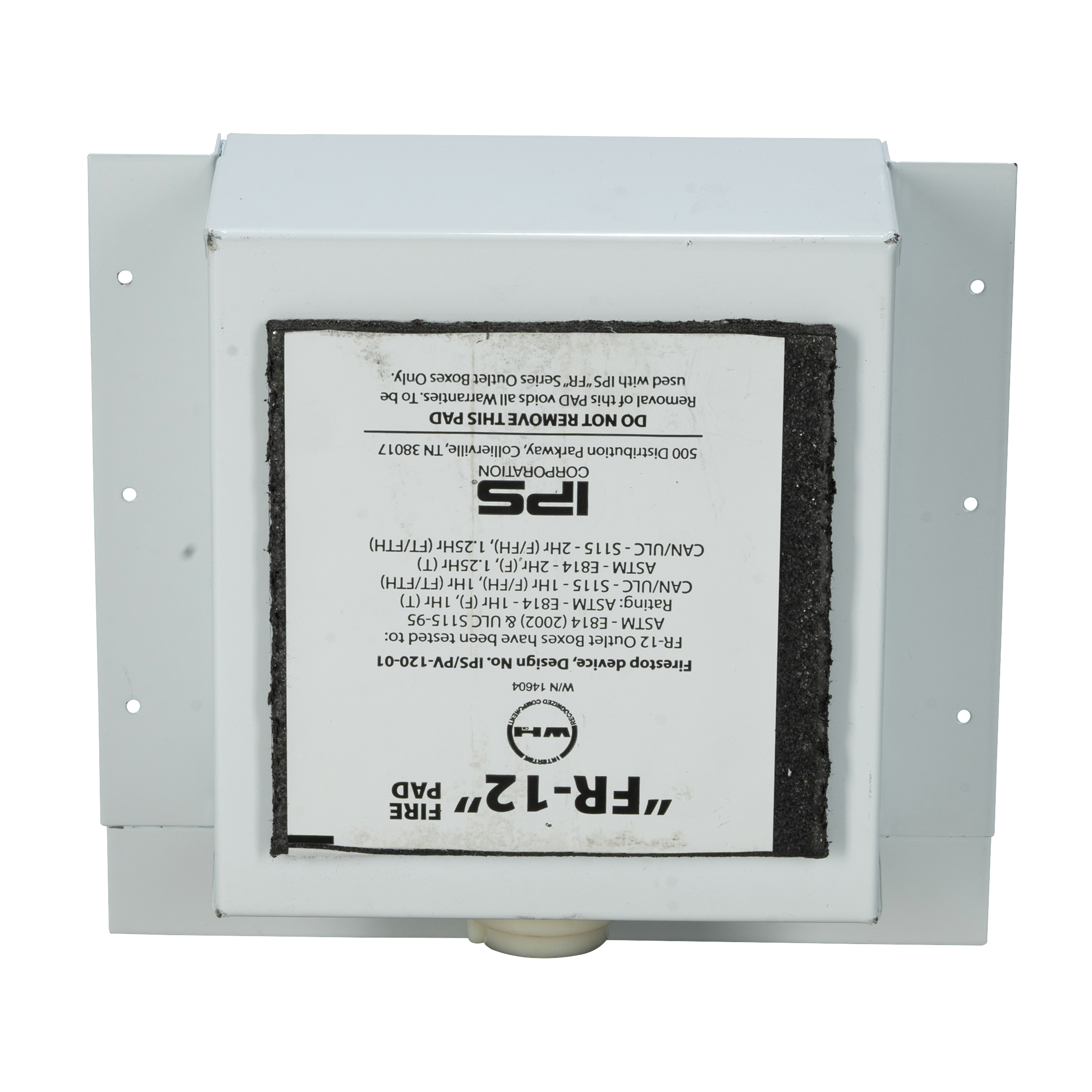

  • 2 intumescent pads attached to inside and back of outlet box
  • Simple installation – just nail or screw to stud
  • No loose pieces to assemble allows quick installation
  • Rough opening: 5 3⁄8" W x 5 7⁄8" H x 2 ¼" D
  • Faceplate dimension: 8 ½" W x 8 ½" H
  • ETL certified
  • 1hr & 2hr rated – see design specification for exact rating
  • Available in Quarter-turn and domestic valves; with and without hammer arresters installed
  • City of LA listed



PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

82390

Qtr-turn Valve, 1/2″ Sweat Connection

FRMIB12ABS

5

82393

Qtr-turn Valve, 1/2″ CPVC Connection

FRMIB12ABC

5

82395

Qtr-turn Valve, 1/2″ F1807 Connection

FRMIB12ABP

5

82397

Qtr-turn Valve, 1/2″ F1960 Connection

FRMIB12ABW

5

82398

Qtr-turn Arrester Valve, 1/2″ F1960 Connection

FRMIB12ABWHA

5



97983

Replacement Faceplate for Model FR, Metal

97983

1

Don’t see the product you need? Call Customer Service at 800-888-8312.
