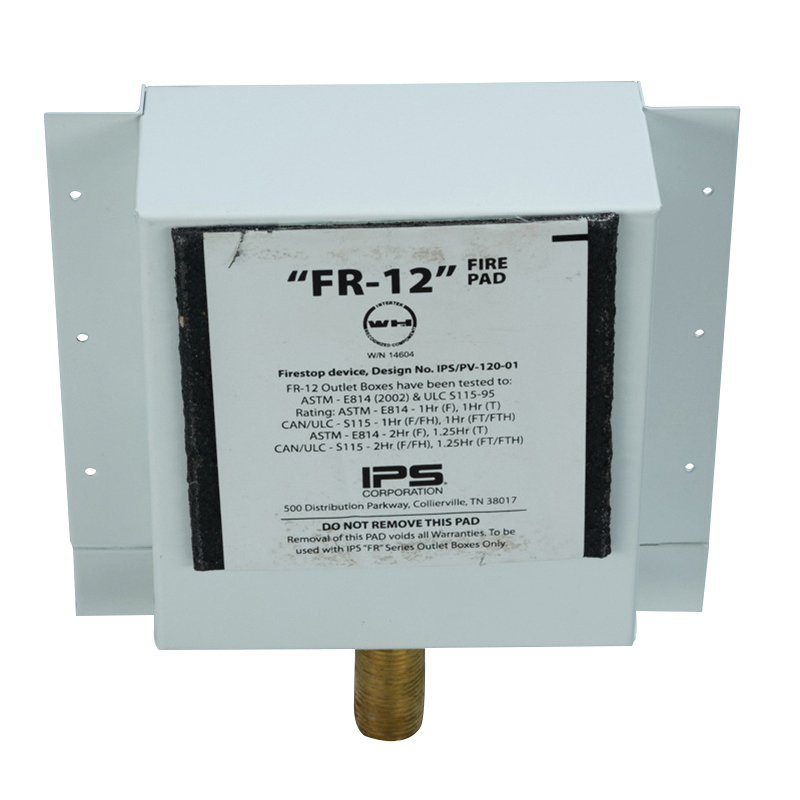

FR-12 Metal Ice Maker Outlet Box with Domestic Valve

Product Description and Features

Ensure your icemaker is properly connected to a water supply with the Guy Gray White Powder-Coated Cold-Rolled Steel Fire-Rated Ice Maker Outlet Box. This recessed outlet box is designed to be installed in the stud bay, minimizing bulkiness and increasing living space. It has two intumescent pads and is ETL Certified. Made of heavy-duty cold-rolled steel, this fire-rated icemaker outlet box (with faceplate) measures 8-1/2 inches wide by 8-1/2 inches high and is available with a variety of different valve types.

  • Valves comply with the requirements of NSF 61-G and the “Reduction of Lead in Drinking Water Act” (Federal Public Law 111-380)
  • Manufactured from heavy duty steel with a white powder-coated finish
  • 2 intumescent pads attached to inside and back of outlet box
  • Simple installation – just nail or screw to stud
  • No loose pieces to assemble allows quick installation
  • Rough opening: 5 3⁄8" W x 5 7⁄8" H x 2 ¼" D
  • Faceplate dimension: 8 ½" W x 8 ½" H
  • ETL certified
  • 1hr & 2hr rated – see design specification for exact rating
  • Available in Quarter-turn and domestic valves; with and without hammer arresters installed






Domestic Valve, 1/2″ Sweat Connection




Replacement Faceplate for Model FR, Metal



Don’t see the product you need? Call Customer Service at 800-888-8312.
