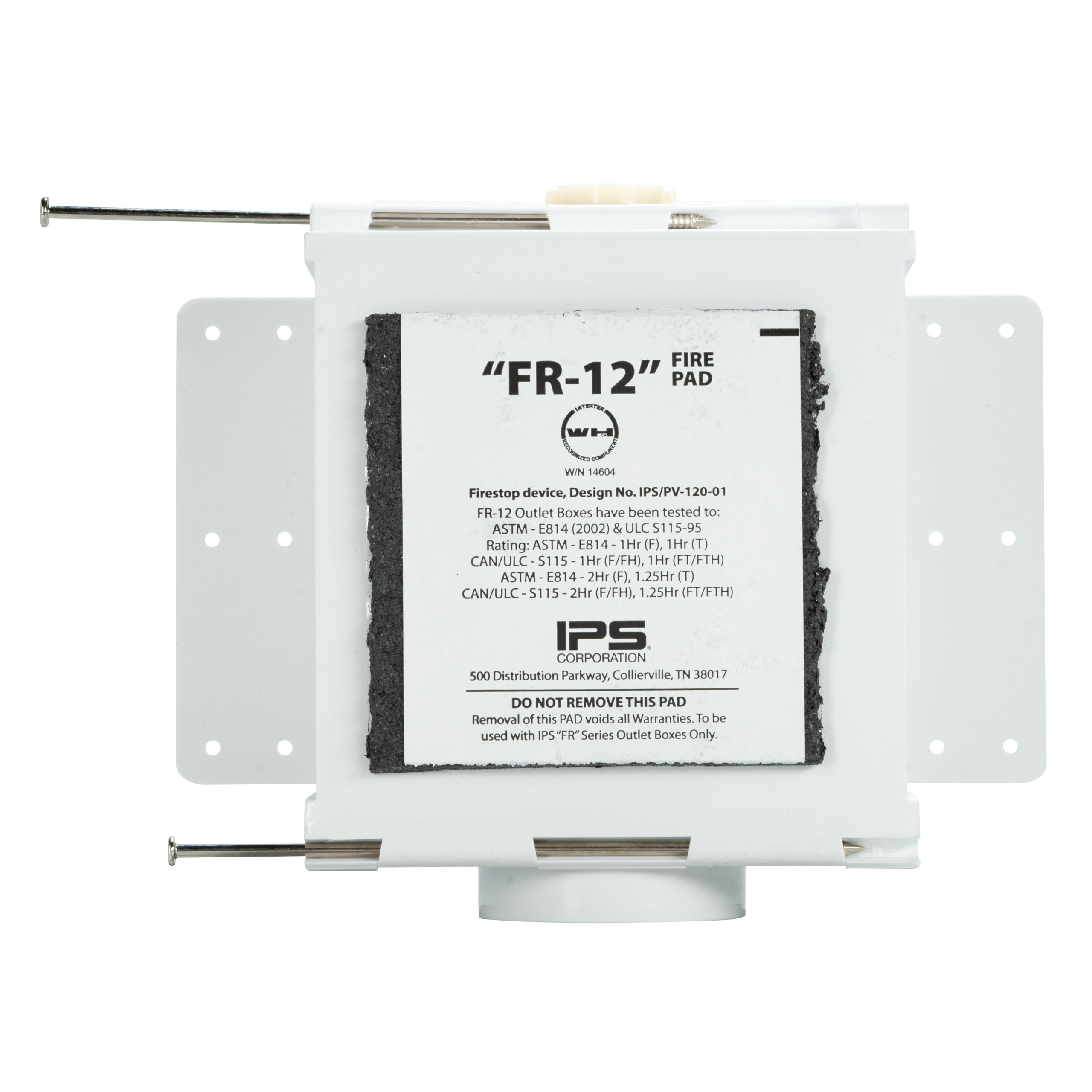

FR-12 Plastic Lead-Free Ice Maker Outlet Box with Hammer Arrester Valve

Product Description and Features

Ensure your icemaker is properly connected to a water supply with the Guy Gray White PVC Resin Fire-Rated Ice Maker Outlet Box. This recessed outlet box is designed to be installed in the stud bay, minimizing bulkiness and increasing living space. It features a snap-on frame and a forward-mounted valve that gives easy access for on/off operation. Made of high-temperature PVC resin, this fire-rated icemaker outlet box (with faceplate) measures 8-5/16 inches wide by 7-7/8 inches high and is available with a variety of different valve types.

  • Intumescent Pad Attached to Back of Outlet Box
  • Molded In Test Cap for Testing of DWV Drain System – Test Cap Will Not Fall Down the Drain
  • Snap-On Frame with Hot & Cold Supply Designations Embossed on Front, Accommodates up to 1" Drywall and is Interchangeable with Dual Drain Washer Box.
  • Simple Installation-Just Nail or Screw to Stud
  • Preloaded Nails for Right or Left Stud Bay Installation
  • One Face Plate Fits Washer, Ice Maker, Gas, AAV and Auxiliary Drain Outlet Boxes
  • ETL Certified
  • 1hr & 2hr Rated
  • Made of High Temperature Resin
  • No Special Wrapping or Sheet Rock Fabrication Needed
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE
Standard Packs

82417

Qtr-turn Arrester Valve, 1/2″ Sweat Connection

FRIB12ABSHA

5

82419

Qtr-turn Arrester Valve, 1/2″ CPVC Connection

FRIB12ABCHA

5

82421

Qtr-turn Arrester Valve, 1/2″ F1807 Connection

FRIB12ABPHA

5

82423

Qtr-turn Arrester Valve, 1/2″ F1960 Connection

FRIB12ABWHA

5

Contractor Packs

82418

Qtr-turn Arrester Valve, 1/2″ Sweat Connection

FRIB12ABSHACP

10

82420

Qtr-turn Arrester Valve, 1/2″ CPVC Connection

FRIB12ABCHACP

10

82422

Qtr-turn Arrester Valve, 1/2″ F1807 Connection

FRIB12ABPHACP

10

82424

Qtr-turn Arrester Valve, 1/2″ F1960 Connection

FRIB12ABWHACP

10

83375

Qtr-turn Arrester Valves, 1/2″ REHAU EVERLOC+™

FRIB12ABRHACP

10

89282

Replacement Faceplate for Model FR, Plastic

FR7070

1

Wirsbo® is a registered trademark of Uponor/ Wirsbo. ProPEX® is a registered trademark of Uponor/ Wirsbo
