FR-12 Plastic Lead-Free Ice Maker Outlet Boxes with Quarter Turn Valves

Product Description and Features

Ensure your icemaker is properly connected to a water supply with the Guy Gray White PVC Resin Fire-Rated Ice Maker Outlet Box. This recessed outlet box is designed to be installed in the stud bay, minimizing bulkiness and increasing living space. It features a snap-on frame and a forward-mounted valve that gives easy access for on/off operation. Made of high-temperature PVC resin, this fire-rated icemaker outlet box (with faceplate) measures 8-5/16 inches wide by 7-7/8 inches high and is available with a variety of different valve types. Established in 1958, Guy Gray is known throughout the plumbing industry as the creator of the original washing machine outlet box. Since its founding, Guy Gray has grown its product line from a handful of galvanized metal boxes to an extensive line of outlet boxes for a wide variety of applications.

  • Intumescent Pad Attached to Back of Outlet Box
  • Molded In Test Cap for Testing of DWV Drain System – Test Cap Will Not Fall Down the Drain
  • Snap-On Frame with Hot & Cold Supply Designations Embossed on Front, Accommodates up to 1" Drywall and is Interchangeable with Dual Drain Washer Box.
  • Simple Installation-Just Nail or Screw to Stud
  • Preloaded Nails for Right or Left Stud Bay Installation
  • One Face Plate Fits Washer, Ice Maker, Gas, AAV and Auxiliary Drain Outlet Boxes
  • Warnock Hersey Certified
  • 1hr & 2hr Rated
  • Made of High Temperature Resin
  • No Special Wrapping or Sheet Rock Fabrication Needed
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs

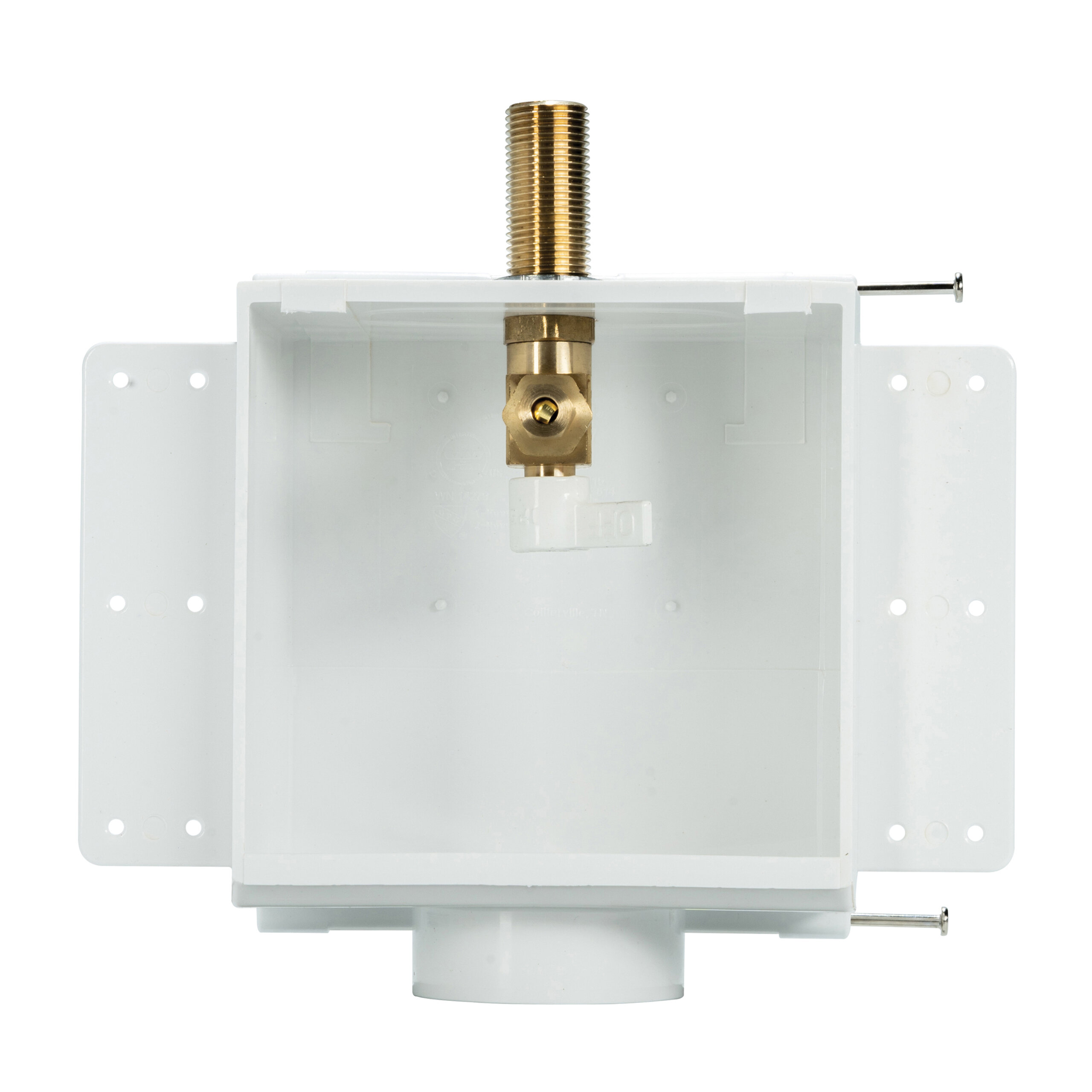

82408

Qtr-turn Valve, 1/2″ Sweat Connection

FRIB12ABS

5

82411

Qtr-turn Valve, 1/2″ CPVC Connection

FRIB12ABC

5

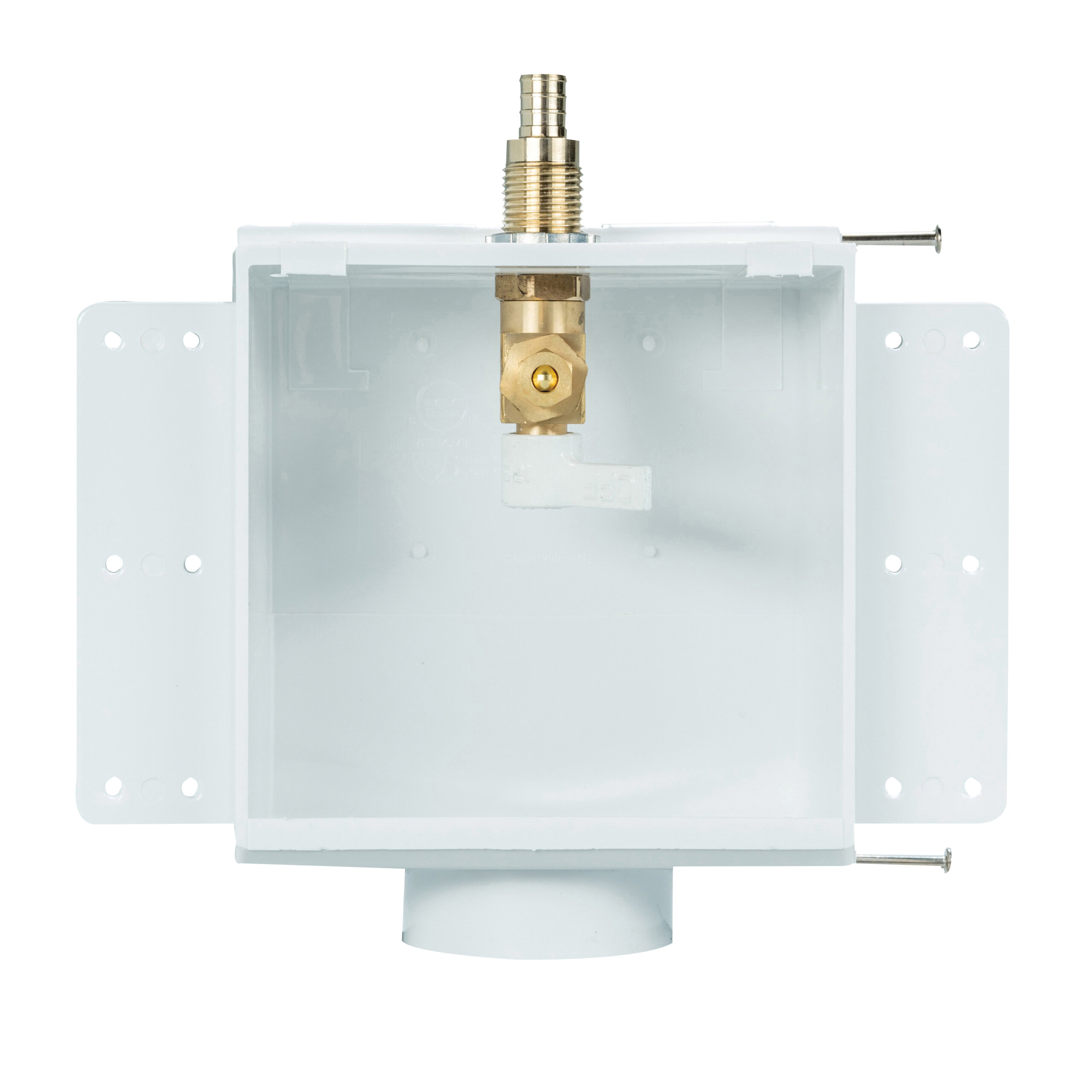

82413

Qtr-turn Valve, 1/2″ F1807 Connection

FRIB12ABP

5

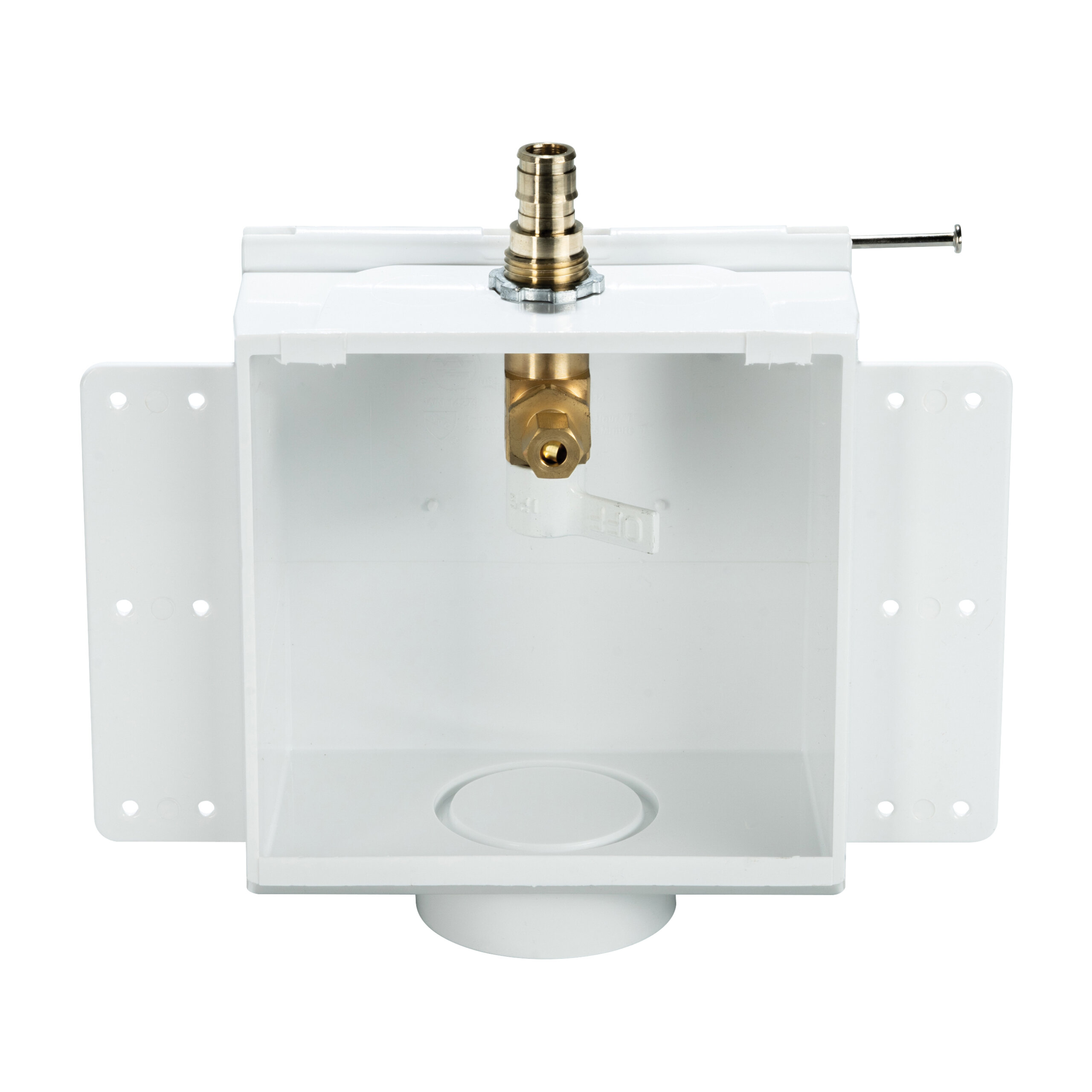

82415

Qtr-turn Valve, 1/2″ F1960 Connection

FRIB12ABW

5

Contractor Packs

82409

Qtr-turn Valve, 1/2″ Sweat Connection

FRIB12ABSCP

10

82412

Qtr-turn Valve, 1/2″ CPVC Connection

FRIB12ABCCP

10

82414

Qtr-turn Valve, 1/2″ F1807 Connection

FRIB12ABPCP

10

82416

Qtr-turn Valve, 1/2″ F1960 Connection

FRIB12ABWCP

10

83374

Qtr-turn Valve, 1/2″ REHAU EVERLOC+

FRIB12ABRCP

10

89282

Replacement Faceplate for Model FR, Plastic

FR7070

1

Wirsbo® is a registered trademark of Uponor/ Wirsbo. ProPEX® is a registered trademark of Uponor/ Wirsbo

Don’t see the product you need? Call Customer Service at 800-888-8312.
