Dialysis Supply and Waste Box

Product Description and Features

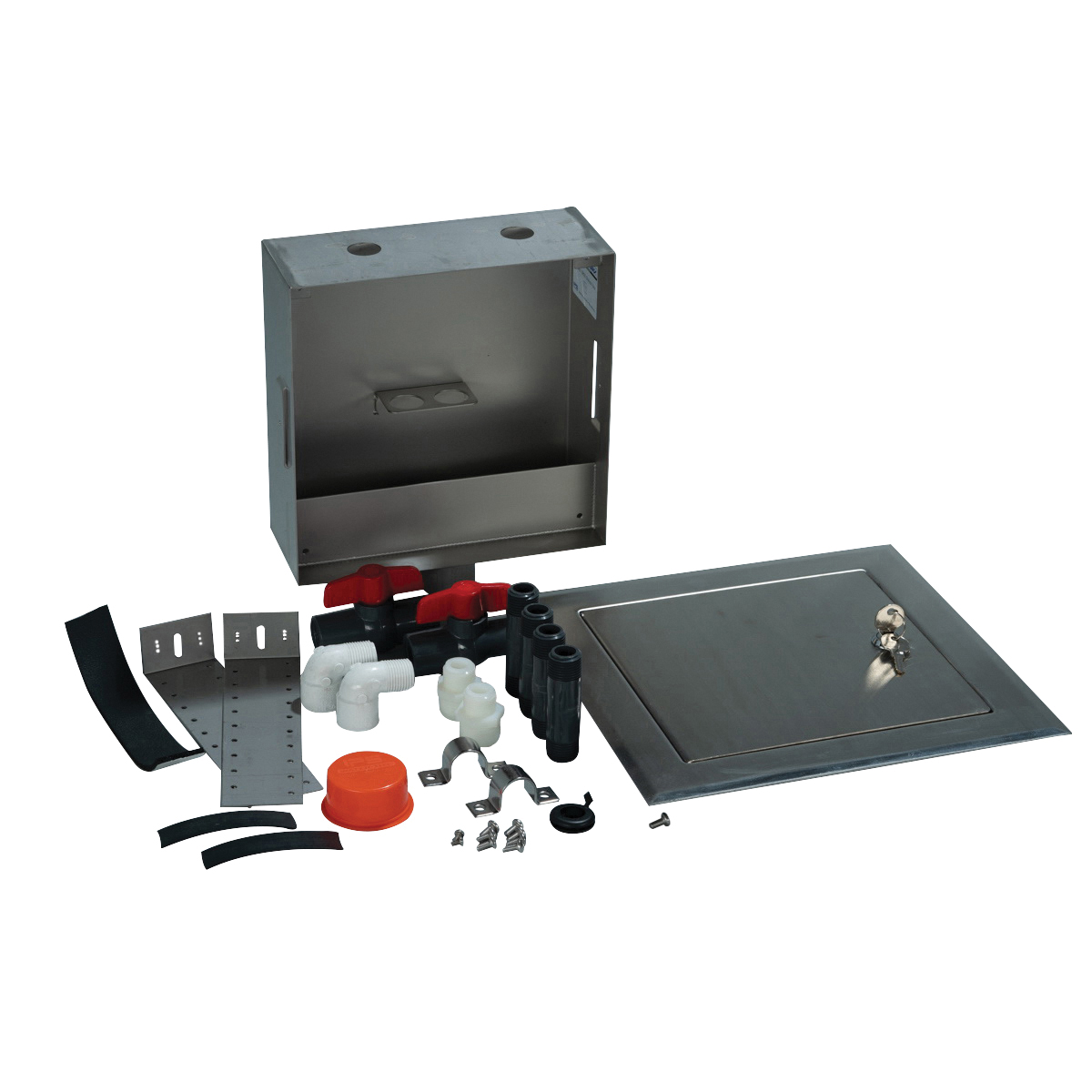

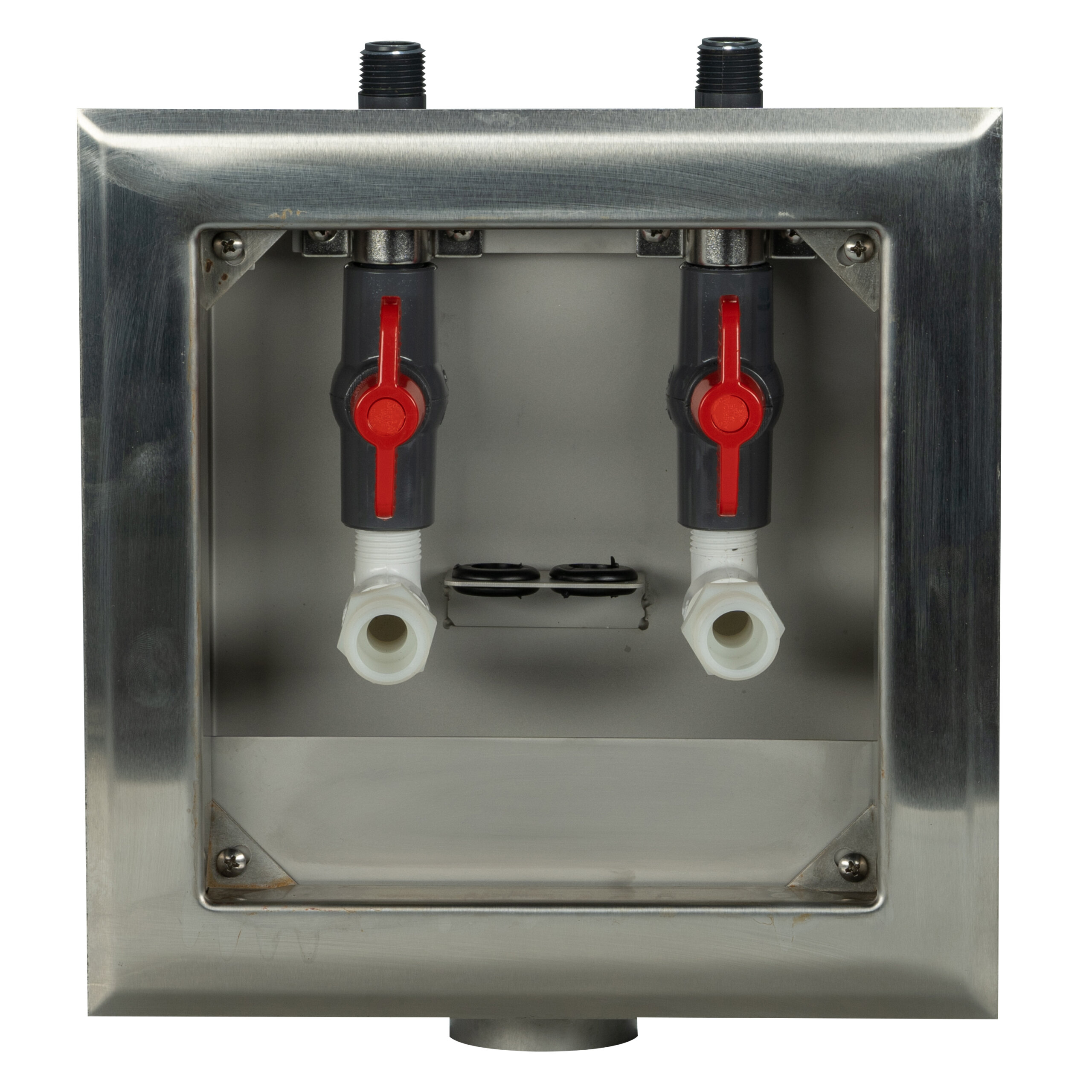

The Guy Gray Stainless Steel Recessed Dialysis Supply and Waste Box is an excellent option for configuring dialysis systems. This series of boxes (when equipped with valves) is designed specifically for reverse osmosis and deionized water mixed with dialysate saline concentrate. Made of corrosion-resistant stainless steel, these recessed dialysis waste and supply boxes have a 2-inch waste outlet and are available with either one or two valves (PVC or stainless steel) or valve holes only. The boxes can be easily secured to the wall via adjustable, stainless steel mounting flanges and some models feature a locking door.

  • 316 Stainless Steel Box with Stainless Steel Frame & Door
  • Provides a recessed connection and drain for operation of Dialysis machines with either a one or two valve configuration
  • PVC valves are ball type with EPDM seals and O-ring; 1/2" FPT Schedule 80; flushing nipple included
  • Access door (optional) and frame may be positioned in any convenient orientation; door includes concealed hinge with Cam Cylinder Lock and two keys
  • Two adjustable stainless steel mounting flanges provide easy securement of box to wall, eliminating the need to build supports
  • Available with or without valves
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

With PVC Valves

82643

Dialysis Box, One Valve, Less Door

DBSS1

4

82644

Dialysis Box, One Valve, Locking Door

DBSS1D

4

82645

Dialysis Box, Two Valves, Less Door

DBSS2

4

82646

Dialysis Box, Two Valves, Locking Door

DBSS2D

4

With Stainless Steel Valves

82688

One Valve, Less Door

DBSS1SV

4

82689

One Valve, Locking Door

DBSS1DSV

4

82690

Two Valves, Less Door

DBSS2SV

4

82691

Two Valves, Locking Door

DBSS2DSV

4

Accessories

82647

One Valve Hole, Less Valves, Locking Door

DBSS1DLV

4

82648

Two Valve Holes, Less Valves, Locking Door

DBSS2DLV

4

97211

Frame (Faceplate) for “door” applications

97212

Replacement Door, Lock & Key

Download Revit/BIM files for Recessed Dialysis Supply & Waste Box.

Don’t see the product you need? Call Customer Service at 800-888-8312.
