Metal Gas Outlet Box

Product Description and Features

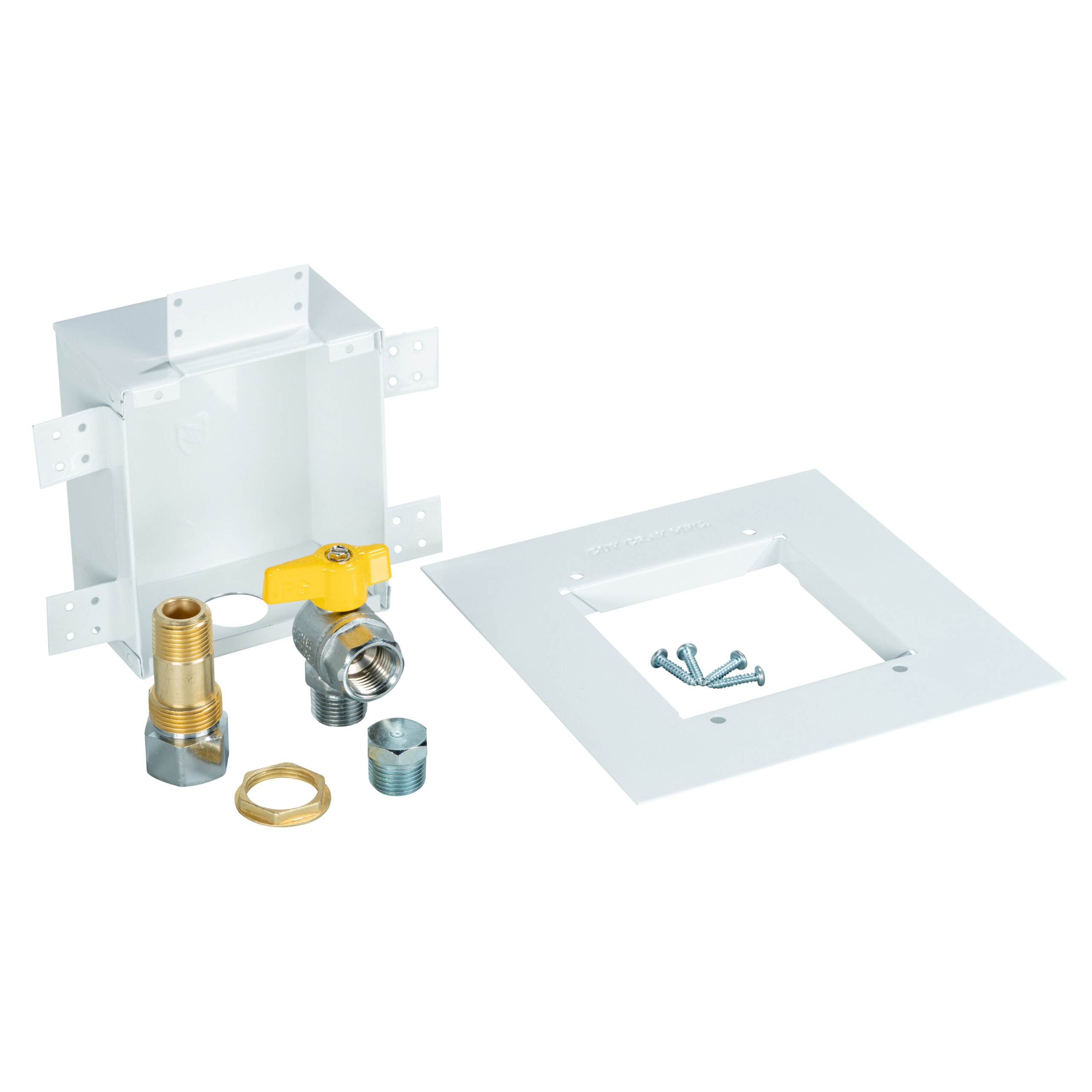

Designed to be installed within the stud bay, the Guy Gray White Powder-Coated Cold-Rolled Steel Gas Outlet Box eliminates floor connections, allowing appliances to be closer to the wall. Ideal for residential, commercial, and industrial direct-connect applications, this recessed gas outlet box is compatible with 1/2-inch iron pipe. It measures 7 inches wide by 7 inches high (with faceplate) and includes a test plug for testing the valve assembly.

  • 20 Gauge Box / 20 Gauge Faceplate
  • White Powder Coat on Cold Rolled Steel Finish
  • Provides a recessed valve installation allowing appliances to be closer to the wall
  • Valves are CSA listed to ANSI Z21/CSA9.1
  • Test plug provided for testing of valve assembly
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

88112

CSA Listed 1/2″ IPS Gas Valve

MGB1

5

90254

Replacement Faceplate for Metal IMOB (7″ x 7″) 20 Ga. Steel

MIB 7063

1

Don’t see the product you need? Call Customer Service at 800-888-8312.
