Dual Control Single-Lever Washing Machine Outlet Box

Product Description and Features

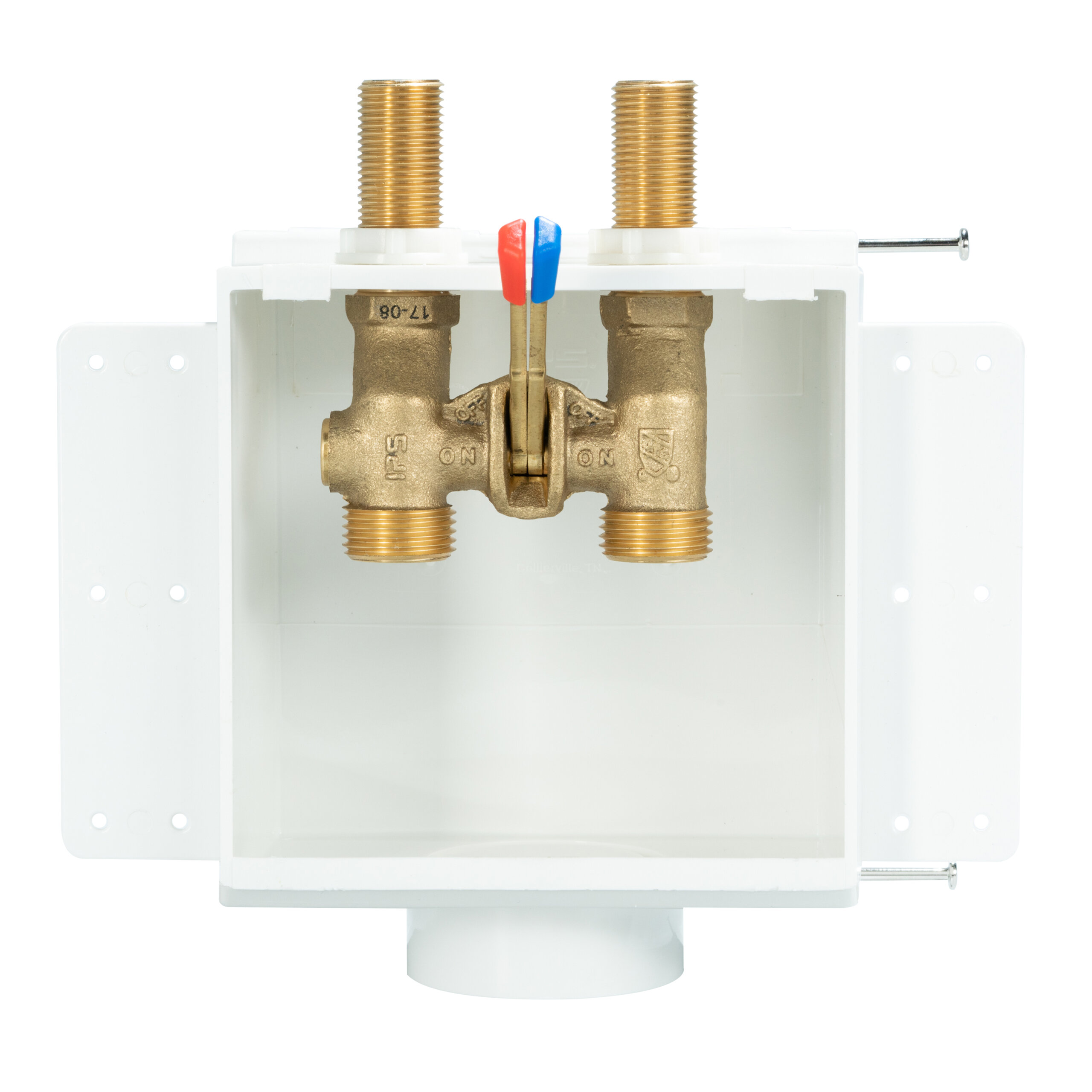

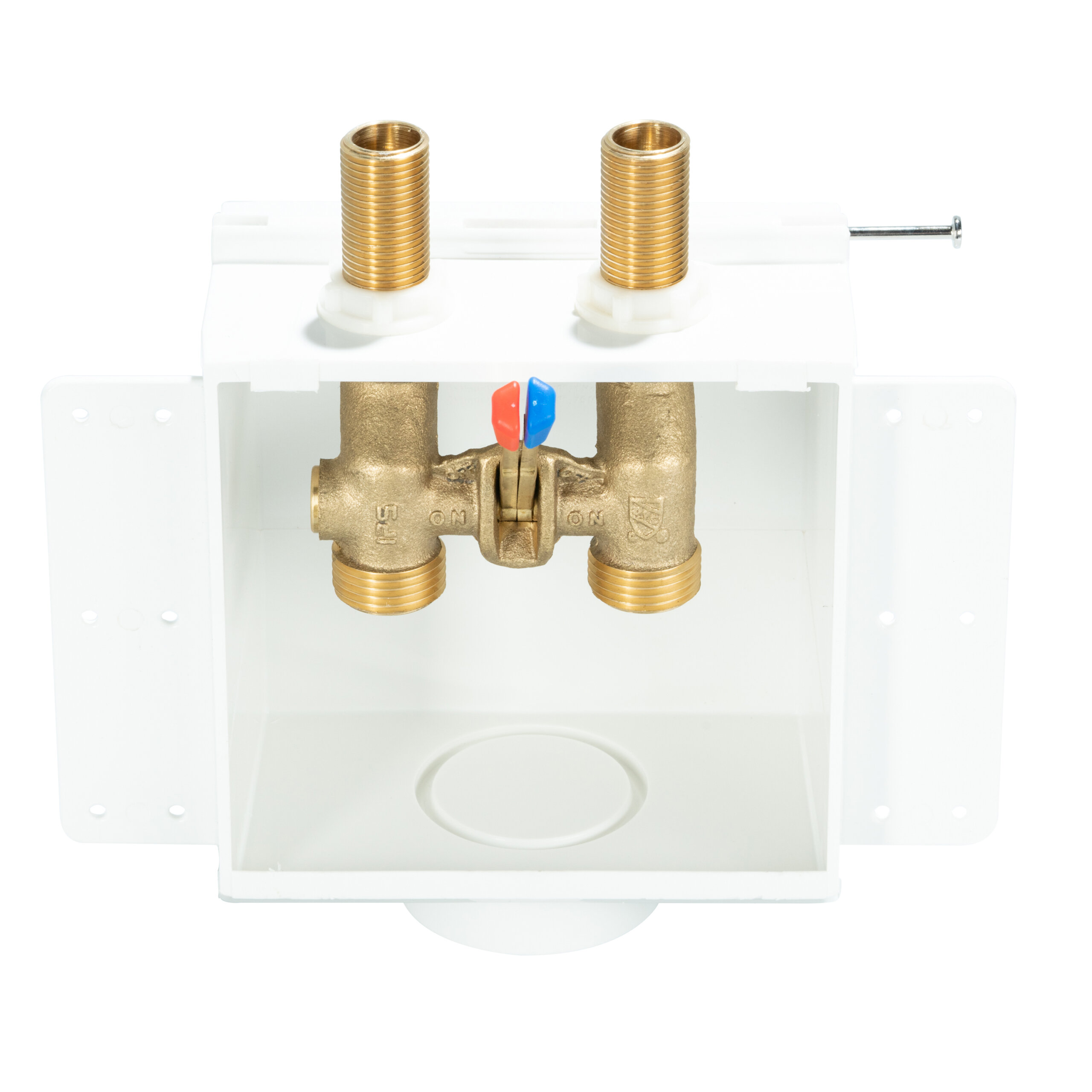

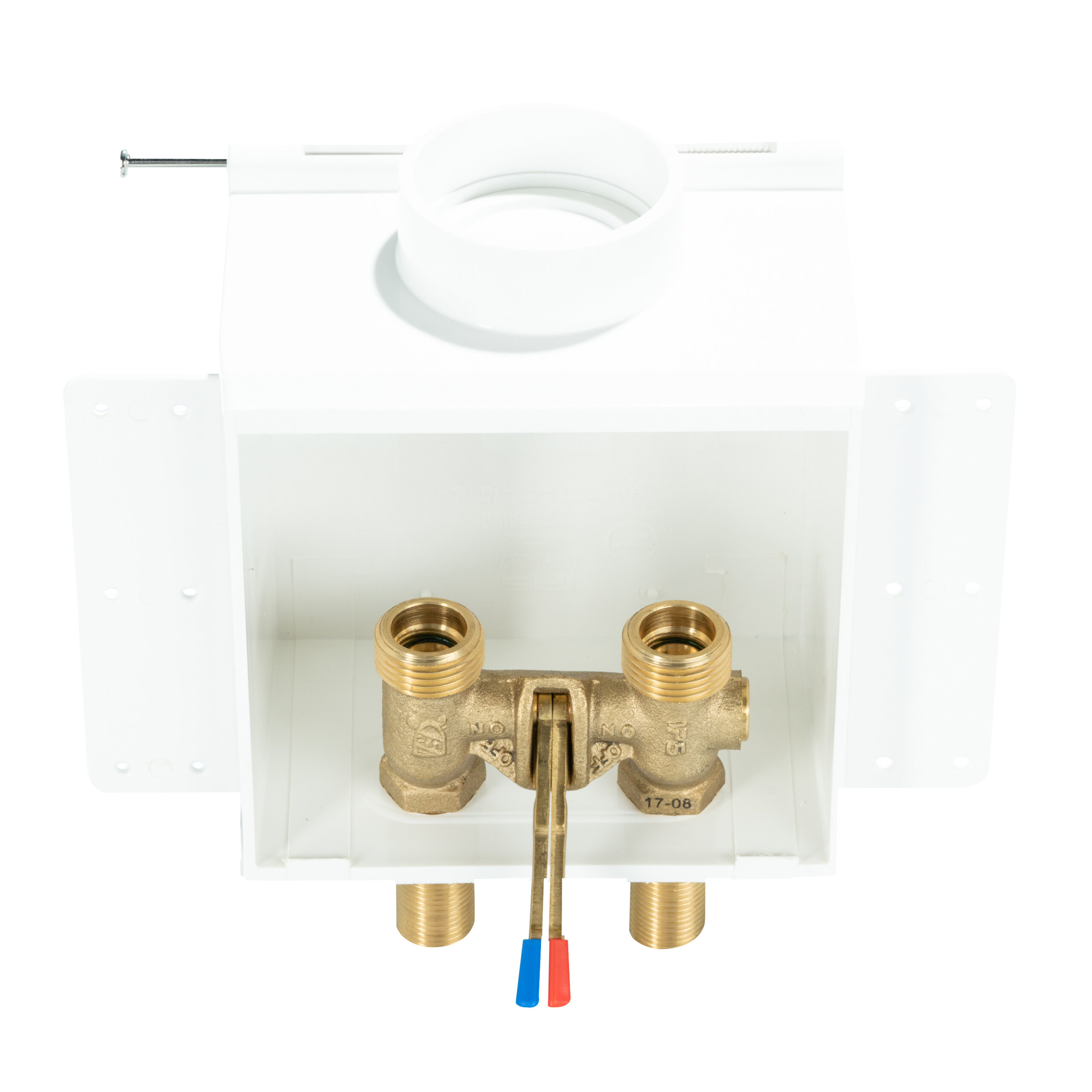

Ensure your washing machine is properly connected to piping and increase living space by fitting it closer to the wall with the Guy Gray Dual-Control Washing Machine Outlet Box. This recessed outlet box is designed to be installed in the stud bay, increasing living space and allowing for any hose leaks to be captured in the box. It features an innovative dual-handle single-lever valves that enables the user to control hot and cold supply lines together or independently. Made of high-temperature PVC resin, this washing machine outlet box has a snap-on frame and measures 8-9/32 inches wide by 7-7/8 inches high.

  • Hot and cold valves can be operated individually or together. Inserting pin through lever holes combines controls.
  • Faceplate design allows flush installation and covers the entire box for a clean finish
  • One-piece box design, no loose parts to assemble
  • Solid, one-piece high-impact resin construction with raised drip guard contains and directs hose leaks down the drain
  • Snap-on frame
  • Oversized knockouts will not fall down drain
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

82472

Dual Handle Single-lever Valve Box, Installed, 1/2″ Sweat Conx.

DLWB1

5

89284

Replacement Faceplate for 82472

89284

1

Don’t see the product you need? Call Customer Service at 800-888-8312.
