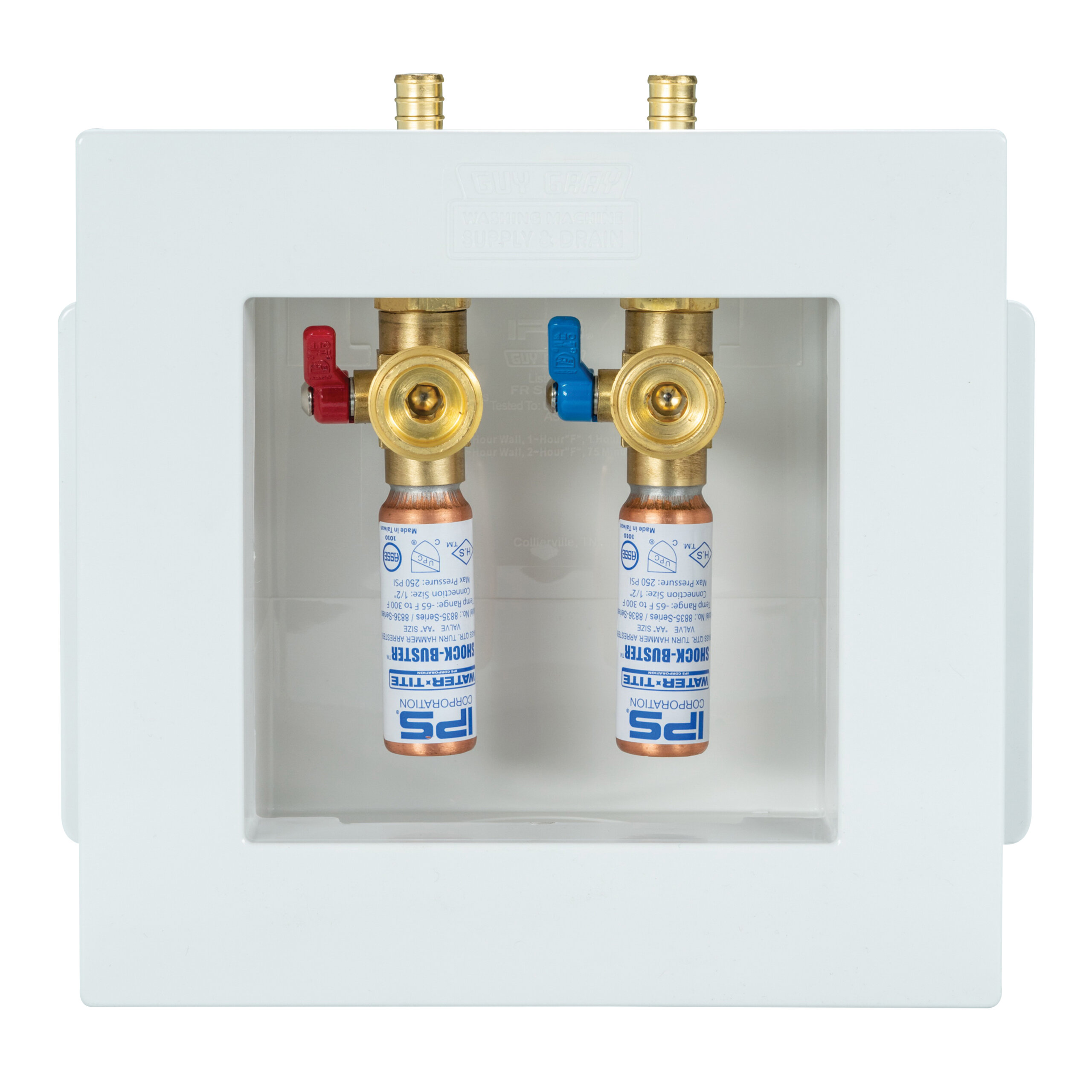

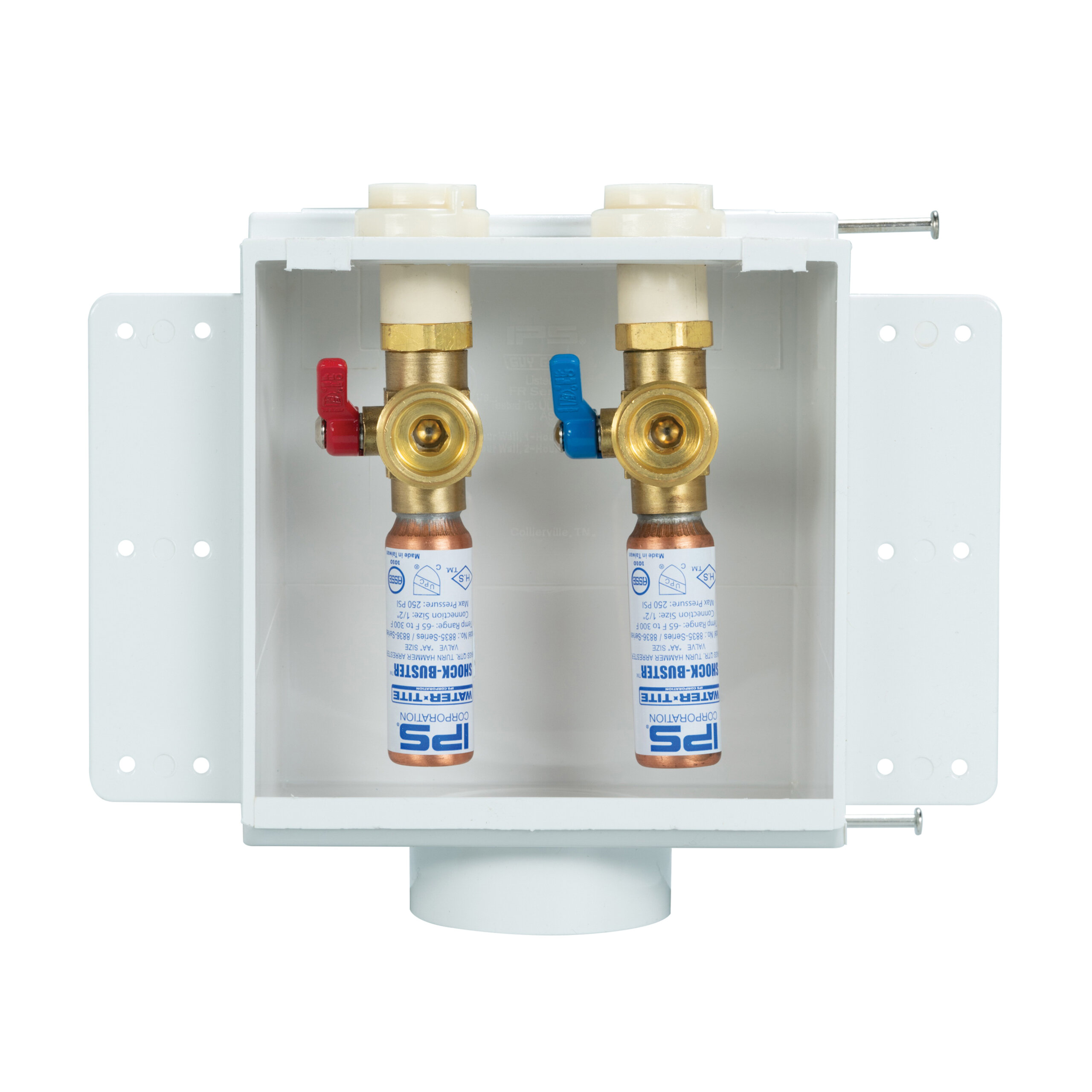

FR-12 Plastic Washing Machine Outlet Box with Quarter-Turn Hammer Arrester Valves

Product Description and Features

Ensure your washing machine is properly connected to piping and increase living space by fitting it closer to the wall with the Guy Gray White Plastic Fire-Rated Washing Machine Outlet Box. This recessed outlet box is designed to be installed in the stud bay, increasing living space and allowing for any hose leaks to be captured in the box. It features a snap-on frame and an intumescent pad that is attached to the back of the box. Made of high-temperature PVC resin, this fire-rated outlet box (with faceplate) measures 8-5/16 inches wide by 7-7/8 inches high and is available with a variety of different valve types.

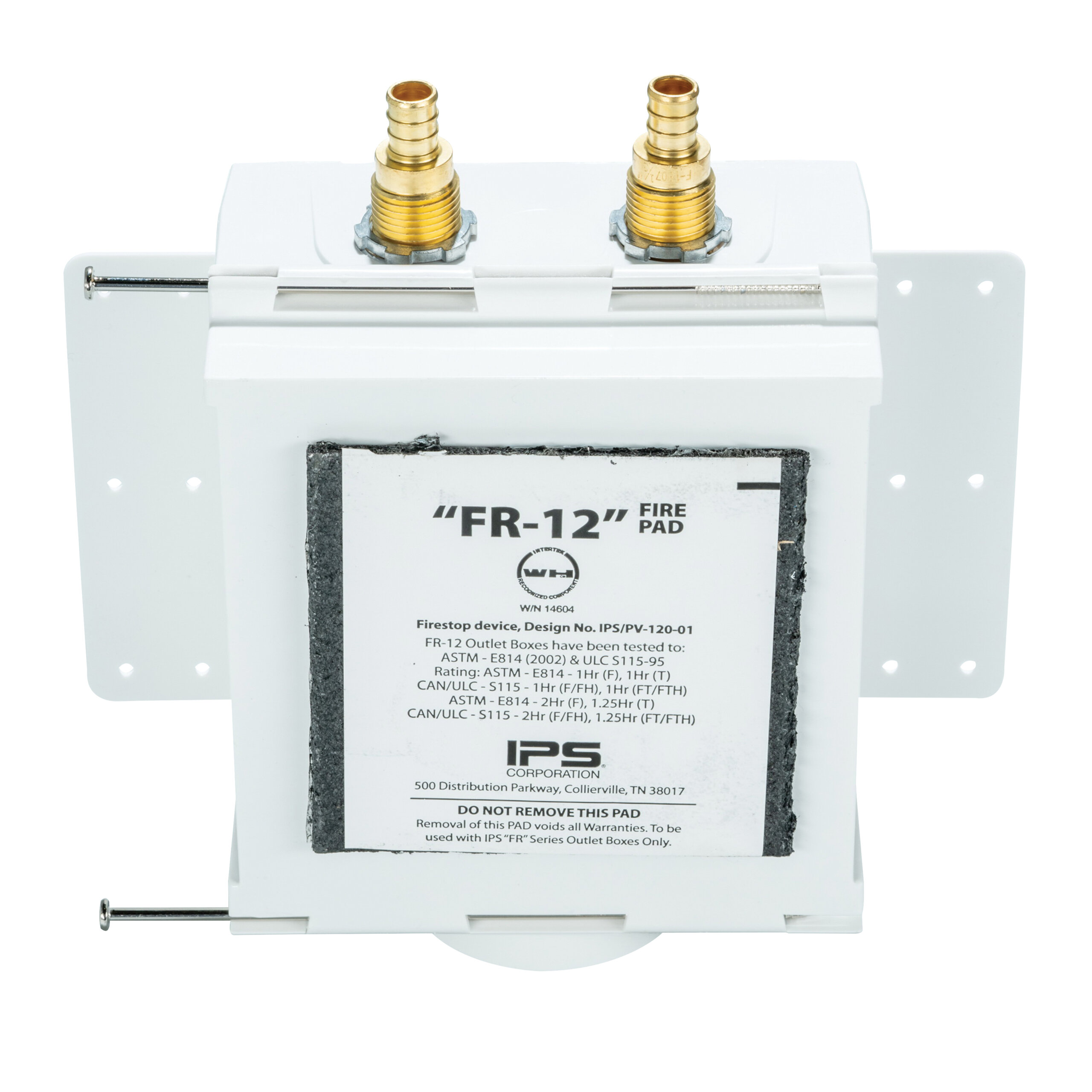

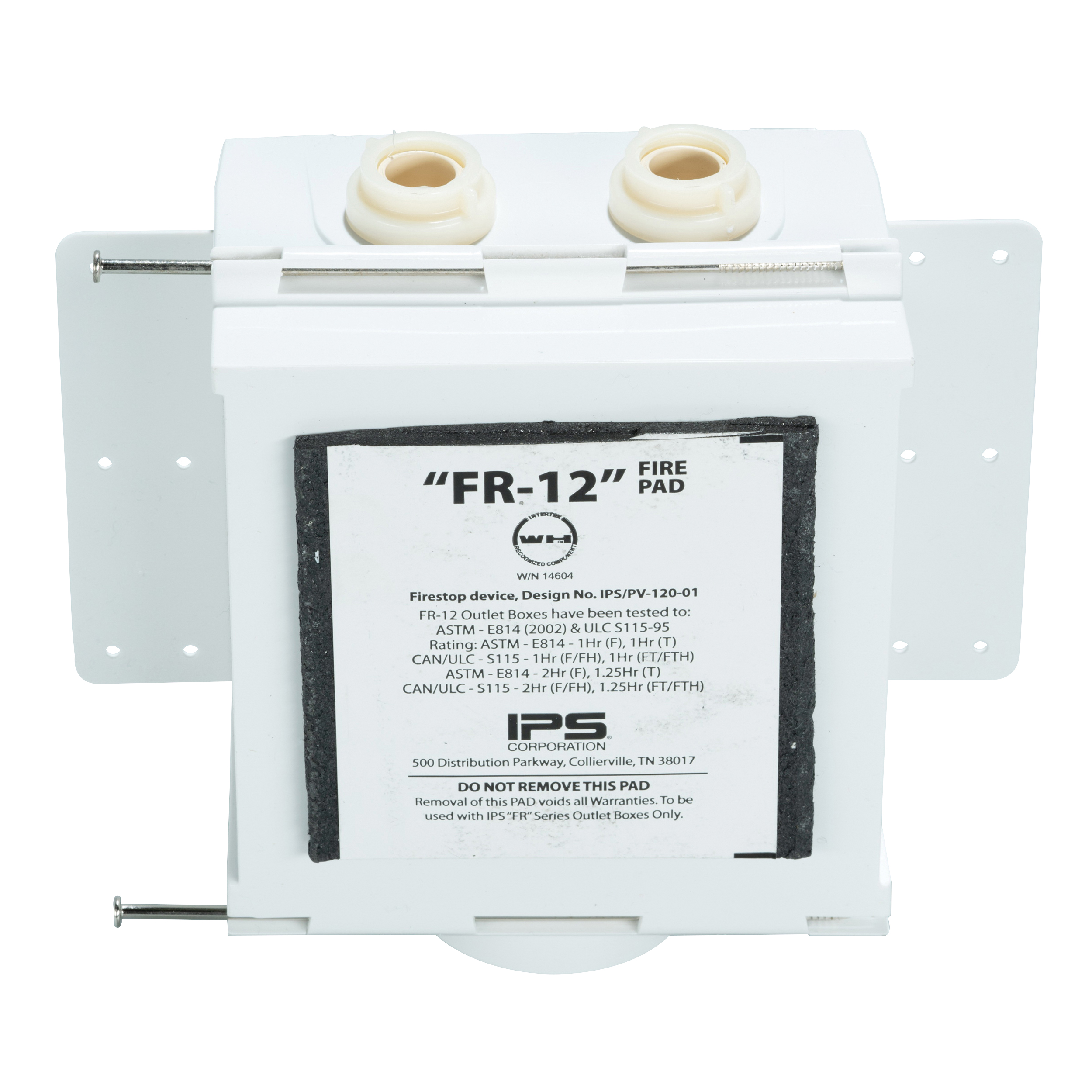

  • Intumescent Pad Attached to Back of Outlet Box
  • Molded In Test Cap for Testing of DWV Drain System – Test Cap Will Not Fall Down the Drain
  • Snap-On Frame with Hot & Cold Supply Designations Embossed on Front, Accommodates up to 1" Drywall and is Interchangeable with Dual Drain Washer Box.
  • Simple Installation-Just Nail or Screw to Stud
  • Preloaded Nails for Right or Left Stud Bay Installation
  • One Face Plate Fits Washer, Ice Maker, Gas, AAV and Auxiliary Drain Outlet Boxes
  • ELT Certified
  • 1hr & 2hr Rated
  • Made of High Temperature Resin
  • No Special Wrapping or Sheet Rock Fabrication Needed
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs

82371

Qtr-turn Arrester Valve, 1/2″ Sweat Connection

FR-12SHA

5

82373

Qtr-turn Arrester Valve, 1/2″ CPVC Connection

FR-12CHA

5

82375

Qtr-turn Arrester Valve, 1/2″ F1807 Connection

FR-12PHA

5

82377

Qtr-turn Arrester Valve, 1/2″ F1960  Connection

FR-12WHA

5

Contractor Packs

82372

Qtr-turn Arrester Valve, 1/2″ Sweat Connection

FR-12SHACP

10

82374

Qtr-turn Arrester Valve, 1/2″ CPVC Connection

FR-12CHACP

10

82376

Qtr-turn Arrester Valve, 1/2″ F1807 Connection

FR-12PHACP

10

82378

Qtr-turn Arrester Valve, 1/2″ F1960 Connection

FR-12WHACP

10

83371

Qtr-turn Arrester Valves, 1/2″ REHAU EVERLOC+

FR12RHACP

10

89282

Replacement Faceplate for Model FR, Plastic

FR7070

1

Wirsbo® is a registered trademark of Uponor/ Wirsbo. ProPEX® is a registered trademark of Uponor/ Wirsbo

Don’t see the product you need? Call Customer Service at 800-888-8312.
