FR-12 Plastic Washing Machine Outlet Box with Quarter-Turn Valves

Product Description and Features

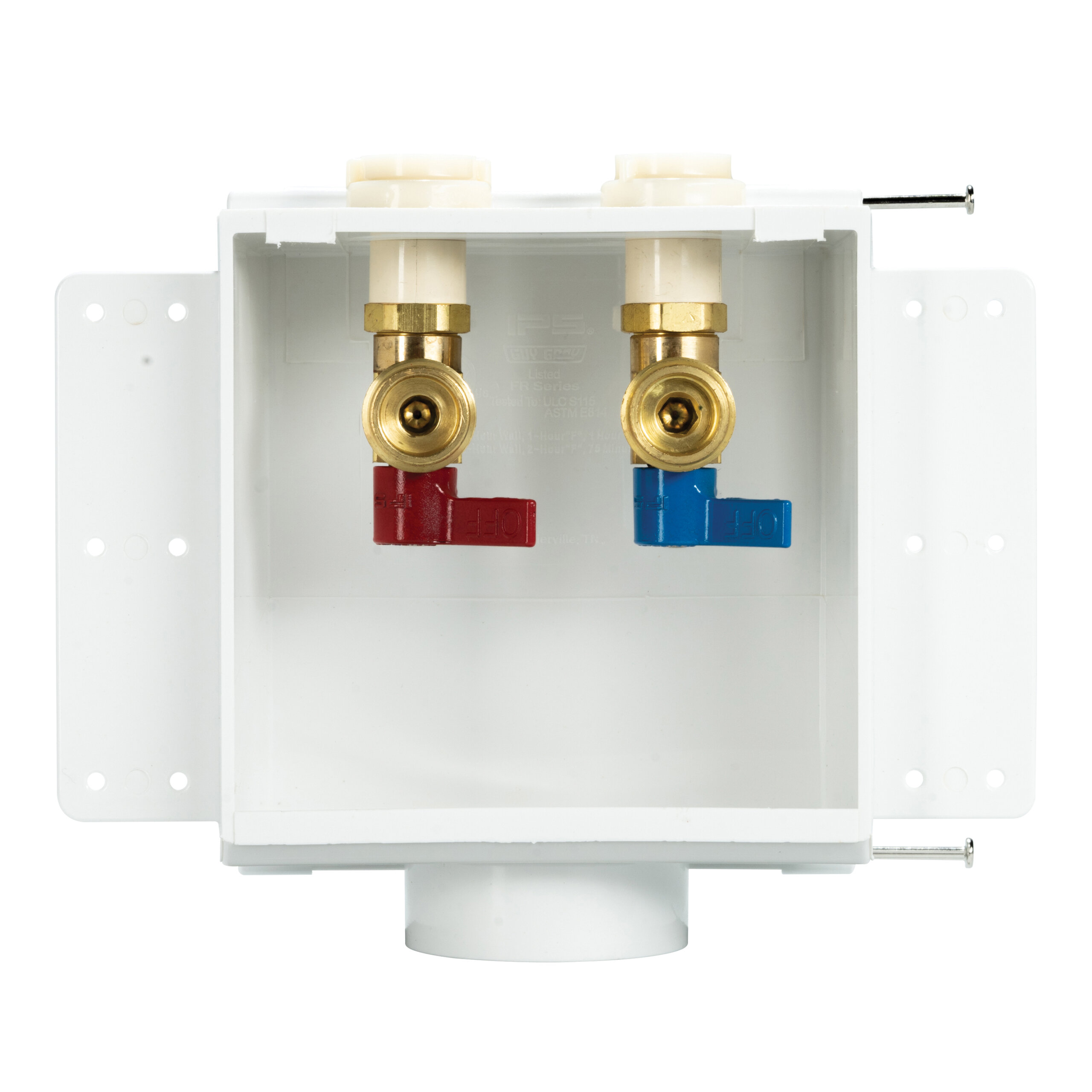

Ensure your washing machine is properly connected to piping and increase living space by fitting it closer to the wall with the Guy Gray White Plastic Fire-Rated Washing Machine Outlet Box. This recessed outlet box is designed to be installed in the stud bay, increasing living space and allowing for any hose leaks to be captured in the box. It features a snap-on frame and an intumescent pad that is attached to the back of the box. Made of high-temperature PVC resin, this fire-rated outlet box (with faceplate) measures 8-5/16 inches wide by 7-7/8 inches high and is available with a variety of different valve types.

  • Intumescent Pad Attached to Back of Outlet Box
  • Molded In Test Cap for Testing of DWV Drain System – Test Cap Will Not Fall Down the Drain
  • Snap-On Frame with Hot & Cold Supply Designations Embossed on Front, Accommodates up to 1" Drywall and is Interchangeable with Dual Drain Washer Box.
  • Simple Installation-Just Nail or Screw to Stud
  • Preloaded Nails for Right or Left Stud Bay Installation
  • One Face Plate Fits Washer, Ice Maker, Gas, AAV and Auxiliary Drain Outlet Boxes
  • ETL Certified
  • 1hr & 2hr Rated
  • Made of High Temperature Resin
  • No Special Wrapping or Sheet Rock Fabrication Needed
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs

82355

Qtr-turn Valve, 1/2″ Sweat Connection

FR-12S

5

82357

Qtr-turn Valve, 1/2″ CPVC Connection

FR-12C

5

82359

Qtr-turn Valve, 1/2″ F1807 Connection

FR-12P

5

82361

Qtr-turn Valve, 1/2″ F1960 Connection

FR-12W

5

Contractor Packs

82356

Qtr-turn Valve, 1/2″ Sweat Connection

FR-12SCP

10

82358

Qtr-turn Valve, 1/2″ CPVC Connection

FR-12CCP

10

82360

Qtr-turn Valve, 1/2″ Connection

FR-12PCP

10

82362

Qtr-turn Valve, 1/2″ F1960 Connection

FR-12WCP

10

83370

Qtr-turn Valves, 1/2″ REHAU EVERLOC+

FR12RCP

10

89282

Replacement Faceplate for Model FR, Plastic

FR7070

1

Wirsbo® is a registered trademark of Uponor/ Wirsbo. ProPEX® is a registered trademark of Uponor/ Wirsbo

Don’t see the product you need? Call Customer Service at 800-888-8312.
