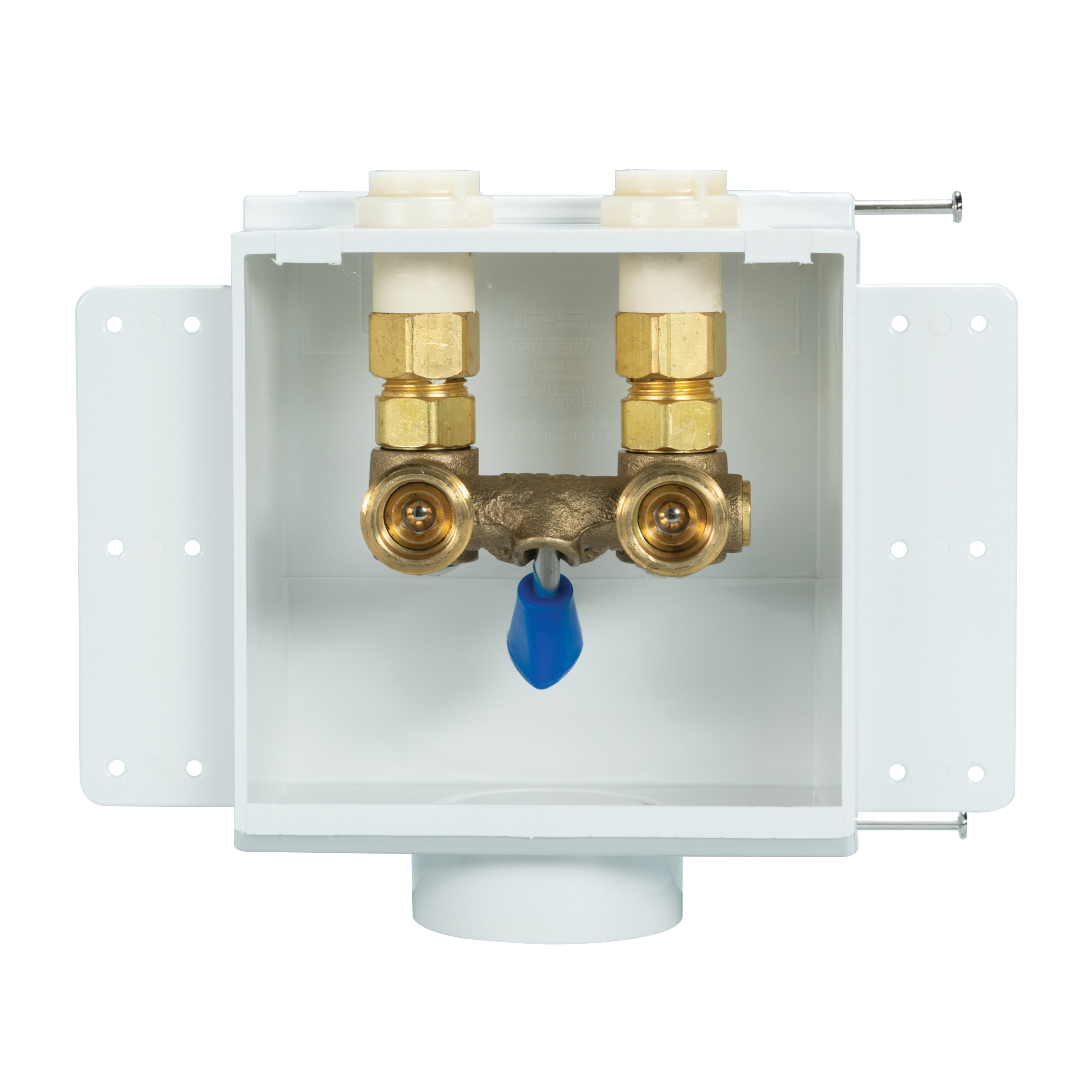

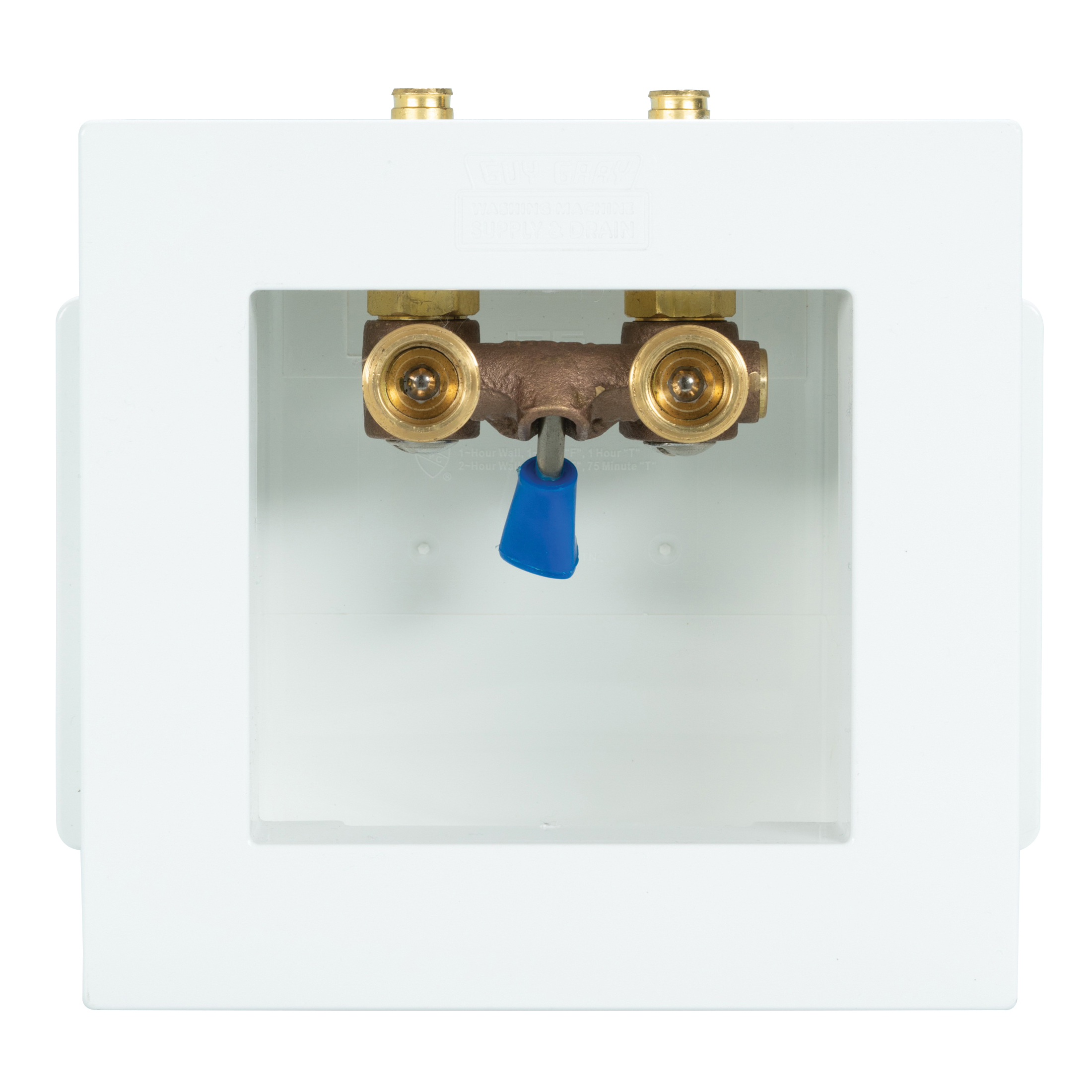

FR-12 Plastic Washing Machine Outlet Box with Single-Lever Valves

Product Description and Features

Ensure your washing machine is properly connected to piping and increase living space by fitting it closer to the wall with the Guy Gray White Plastic Fire-Rated Washing Machine Outlet Box. This recessed outlet box is designed to be installed in the stud bay, increasing living space and allowing for any hose leaks to be captured in the box. It features a snap-on frame and an intumescent pad that is attached to the back of the box. Made of high-temperature PVC resin, this fire-rated outlet box (with faceplate) measures 8-5/16 inches wide by 7-7/8 inches high and is available with a variety of different valve types.

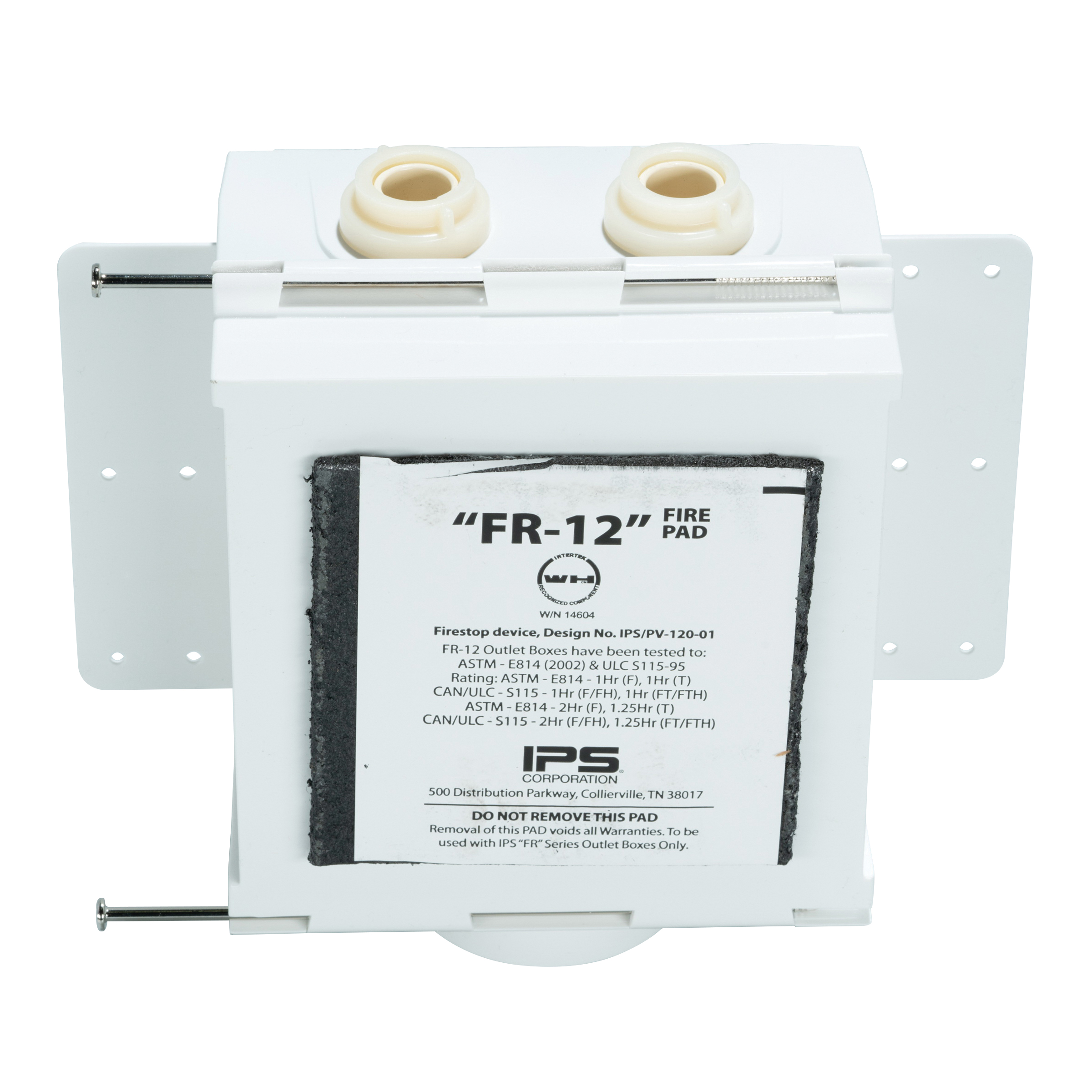

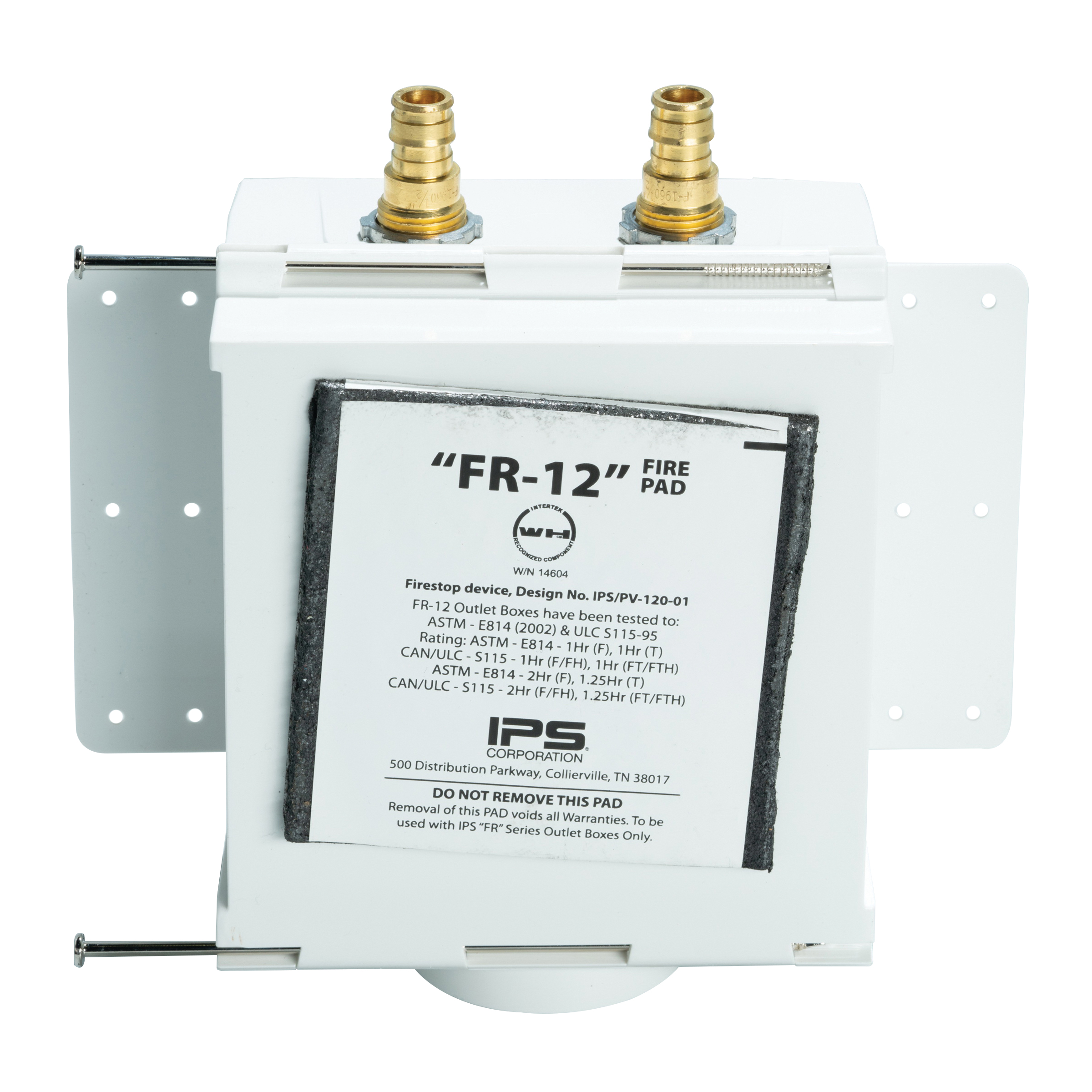

  • Intumescent Pad Attached to Back of Outlet Box
  • Molded In Test Cap for Testing of DWV Drain System – Test Cap Will Not Fall Down the Drain
  • Snap-On Frame Accommodates two 5/8" Drywall
  • Simple Installation-Just Nail or Screw to Stud
  • Preloaded Nails for Right or Left Stud Bay Installation
  • One Face Plate Fits Washer, Ice Maker, Gas, AAV and Auxiliary Drain Outlet Boxes
  • ELT Certified
  • 1hr & 2hr Rated
  • Made of High Temperature Resin
  • No Special Wrapping or Sheet Rock Fabrication Needed
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs

82363

Single-lever Valve, 1/2″ Sweat Connection

FR-12SS

5

82365

Single-lever Valve, 1/2″ CPVC Connection

FR-12CS

5

82367

Single-lever Valve, 1/2″ F1807 Connection

FR-12PS

5

82369

Single-lever Valve, 1/2″ F1960 Connection

FR-12WS

5

Contractor Packs

82364

Single-lever Valve, 1/2″ Sweat Connection

FR-12SSCP

10

82366

Single-lever Valve, 1/2″ CPVC Connection

FR-12CSCP

10

82368

Single-lever Valve, 1/2″ F1807 Connection

FR-12PSCP

10

82370

Single-lever Valve, 1/2″ F1960 Connection

FR-12WSCP

10

89282

Replacement Faceplate for Model FR, Plastic1

FR7070

1

Wirsbo® is a registered trademark of Uponor/ Wirsbo. ProPEX® is a registered trademark of Uponor/ Wirsbo

Don’t see the product you need? Call Customer Service at 800-888-8312.
