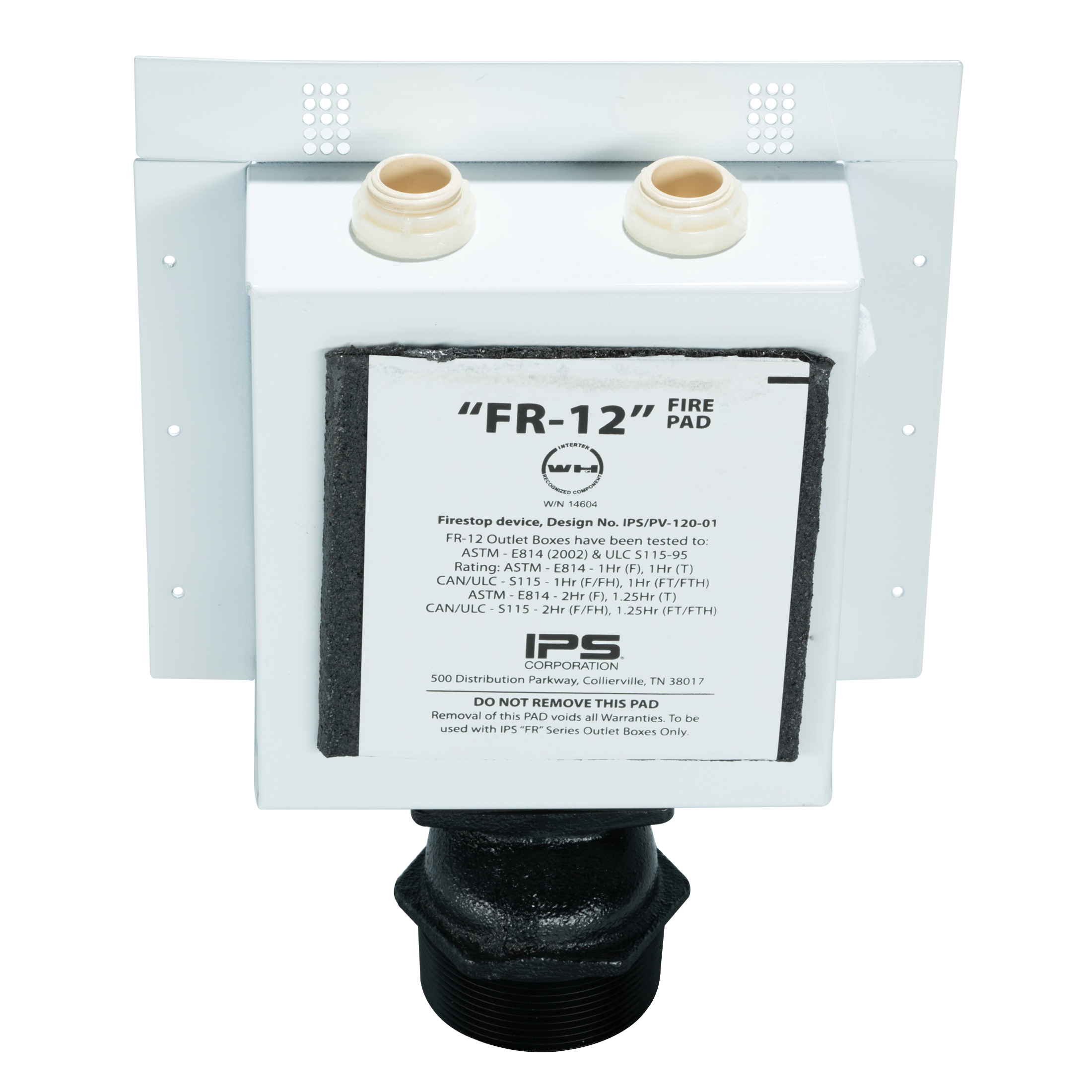

FR-12 Metal Washing Machine Outlet Box with Quarter-Turn Hammer Arrester Valves
Product Description and Features
- Manufactured from heavy duty steel with a white powder-coated finish
- 2 Intumescent Pad Attached to Inside and Back of Outlet Box
- Simple installation – just nail or screw to stud
- No loose pieces to assemble allows quick installation
- ETL Certified
- Rough opening: 5-3/8" W x 5-7/8" H x 3-1/8" D
- Faceplate dimension: 8-1/2" W x 8-1/2" H
- 1 and 2 HR Rated
- Drains may be nominal 2” or larger PVC, ABS, or metallic pipe
- Metal Fire Rated Ice Maker Box also available
- Available in 1/4 turn, domestic and Single Lever valve; with and without hammer arresters installed
- City of LA listed
- California Residents: WARNING – www.P65warnings.ca.gov
|
PRODUCT |
DESCRIPTION |
MODEL |
UNITS/CASE |
|
82583 |
Qtr-turn Arrester Valve, 1/2″ Sweat Connection |
FRM12SHA |
5 |
|
82585 |
Qtr-turn Arrester Valve, 1/2″ CPVC Connection |
FRM12CHA |
5 |
|
82587 |
Qtr-turn Arrester Valve, 1/2″ F1807 Connection |
FRM12PHA |
5 |
|
82589 |
Qtr-turn Arrester Valve, 1/2″ F1960 Connection |
FRM12WHA |
5 |
|
97983 |
Replacement Faceplate for Model FR, Metal1 |
97983 |
1 |
Don’t see the box you need? Call Customer Service at 800-888-8312.
