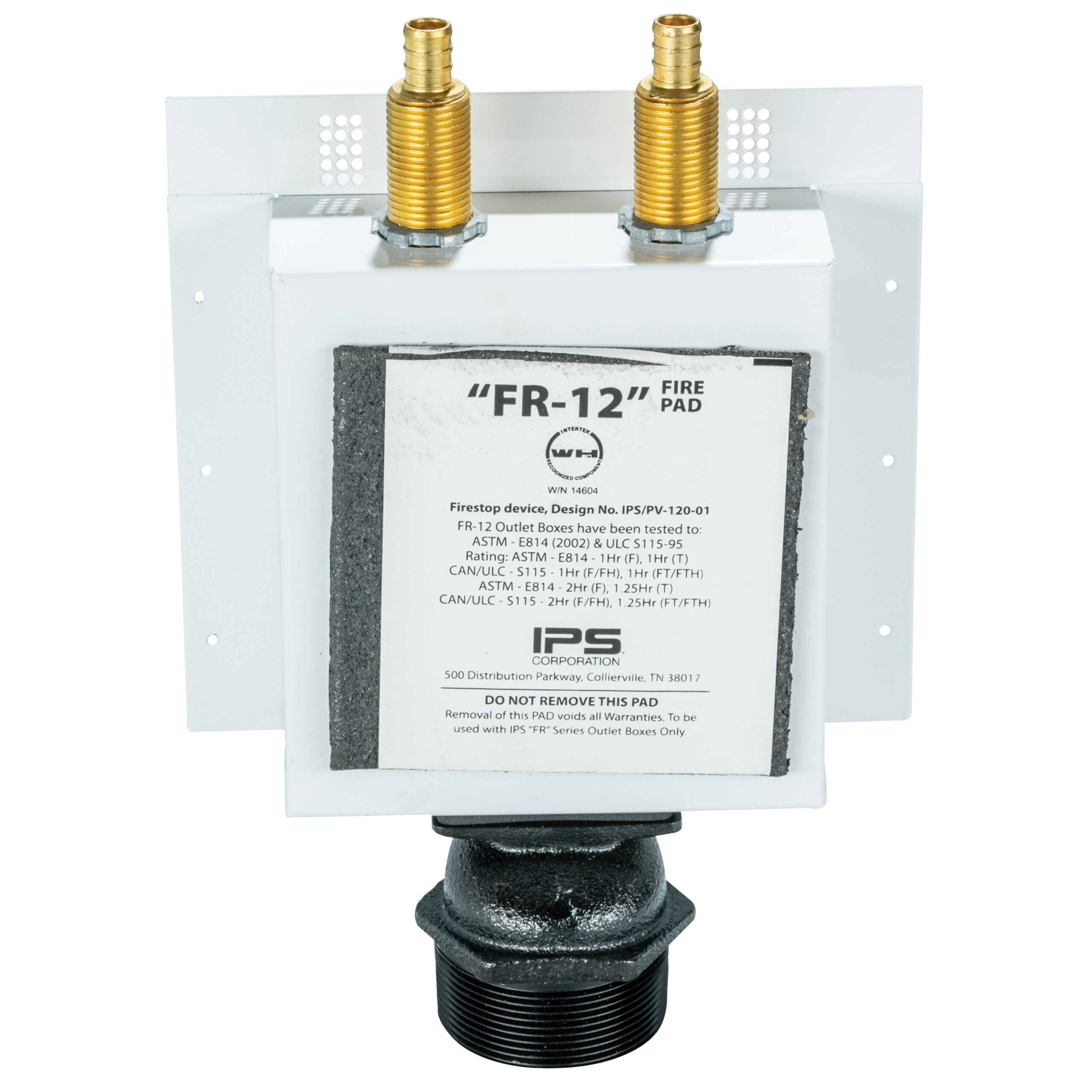

FR-12 Metal Washing Machine Outlet Box with Single-Lever Hammer Arrester Valve

Product Description and Features

  • Manufactured from heavy duty steel with a white powder-coated finish
  • 2 Intumescent Pad Attached to Inside and Back of Outlet Box
  • Simple installation – just nail or screw to stud
  • No loose pieces to assemble allows quick installation
  • ETL Certified
  • Rough opening: 5-3/8" W x 5-7/8" H x 3-1/8" D
  • Faceplate dimension: 8-1/2" W x 8-1/2" H
  • 1 and 2 HR Rated
  • Drains may be nominal 2” or larger PVC, ABS, or metallic pipe
  • Metal Fire Rated Ice Maker Box also available
  • Available in 1/4 turn, domestic and Single Lever valve; with and without hammer arresters installed
  • City of LA listed
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

82591

Single-lever Arrester Valve, 1/2″ Sweat Connection

FRM12SSHA

5

82593

Single-lever Arrester Valve, 1/2″ F1807 Connection

FRM12PSHA

5

97983

Replacement Faceplate for Model FR, Metal

97983

1

Don’t see the box you need? Call Customer Service at 800-888-8312.

Download Warnock Hersey Authorization to Mark.
