Recessed Air Admittance Valve Boxes
Product Description and Features

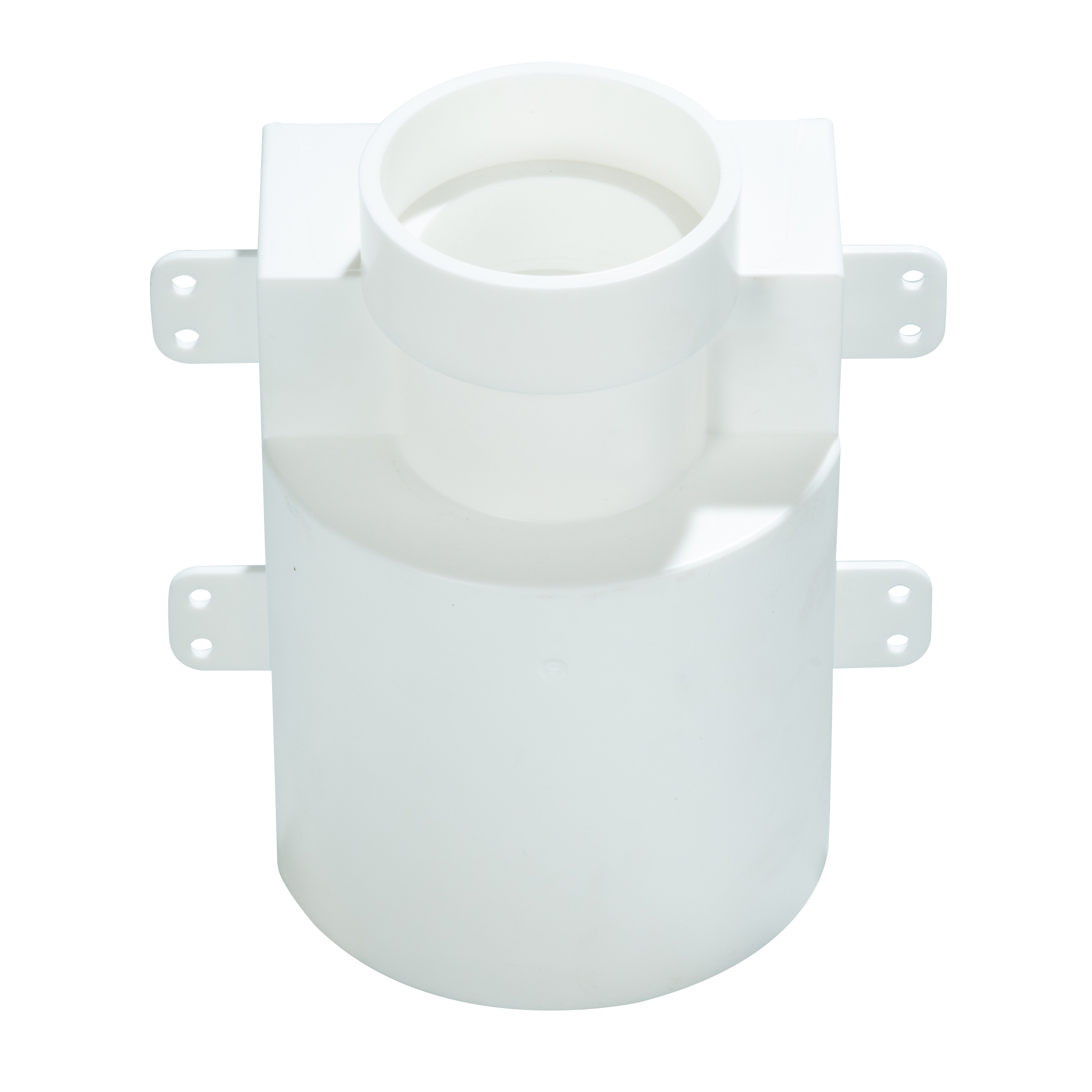

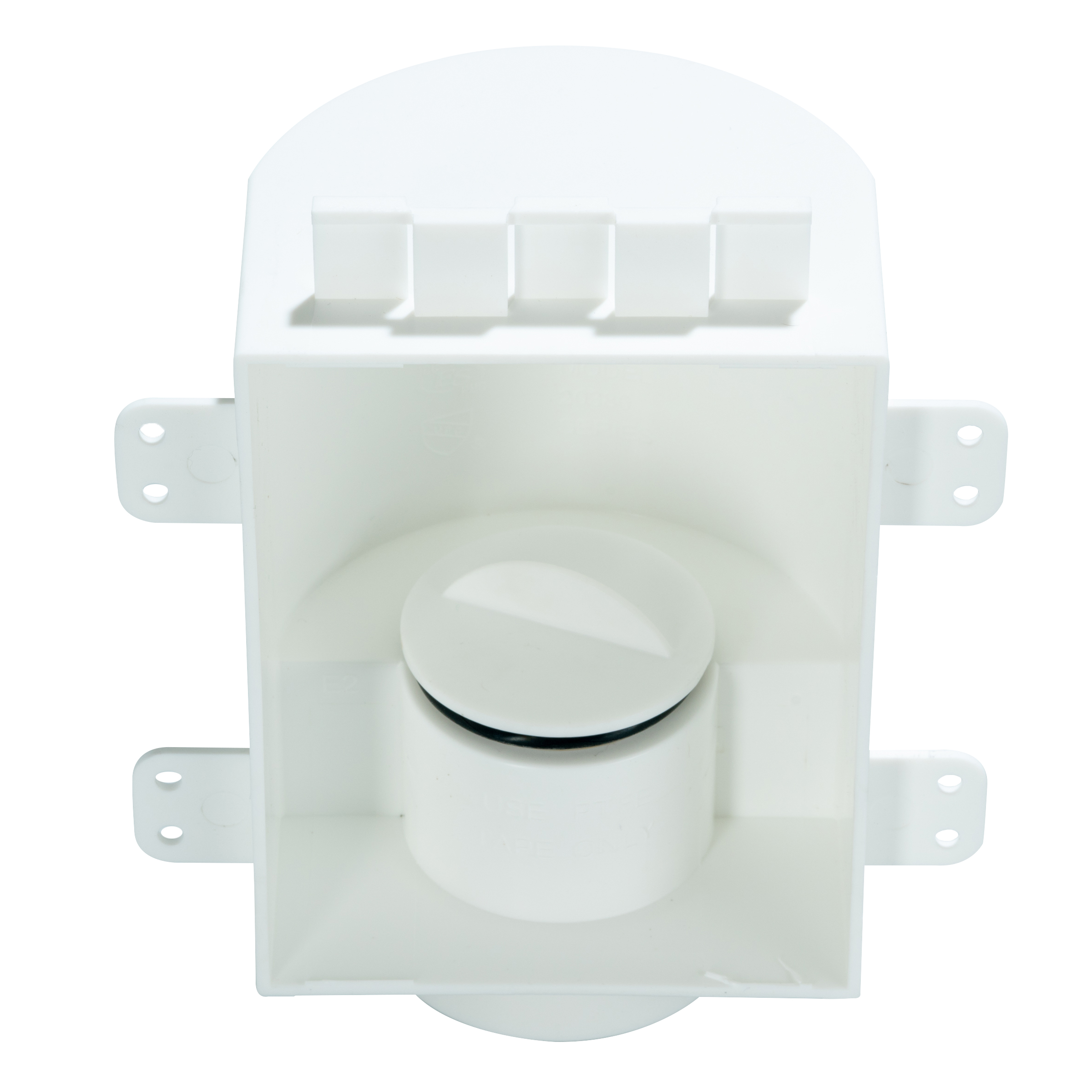

Connect and conceal your air admittance valve with the Studor Recessed Air Admittance Valve Box and Grill. Featuring a simple one-piece construction, this recessed outlet box has a built-in mounting flange and needs no additional framing or support when installed in the study bay. The box comes with an accessory grill that keeps the air admittance valve (not included) hidden from view.
- One piece box and mounting flange design needs no additional framing or support when installed to the stud bay
- Optional mounting by use of the Water-Tite Stabilizer Bar allows the box to be positioned anywhere in the stud bay
- Contains integral test cap with rubber gasket for leak testing and protection during the construction phase
- Access Box connects to 1½" or 2" ABS or PVC vent pipe
- Includes a one-piece snap-on grille
- Recess box carries UPC and ICC listings
- California Residents: WARNING – www.P65warnings.ca.gov
|
PRODUCT |
DESCRIPTION |
MODEL |
UNITS/CASE |
|
20380 |
Studor AAV Recess Box |
20380 |
10 |
|
20381 |
Studor AAV Recess Box with REDI-VENT® |
20381 |
10 |
|
20385 |

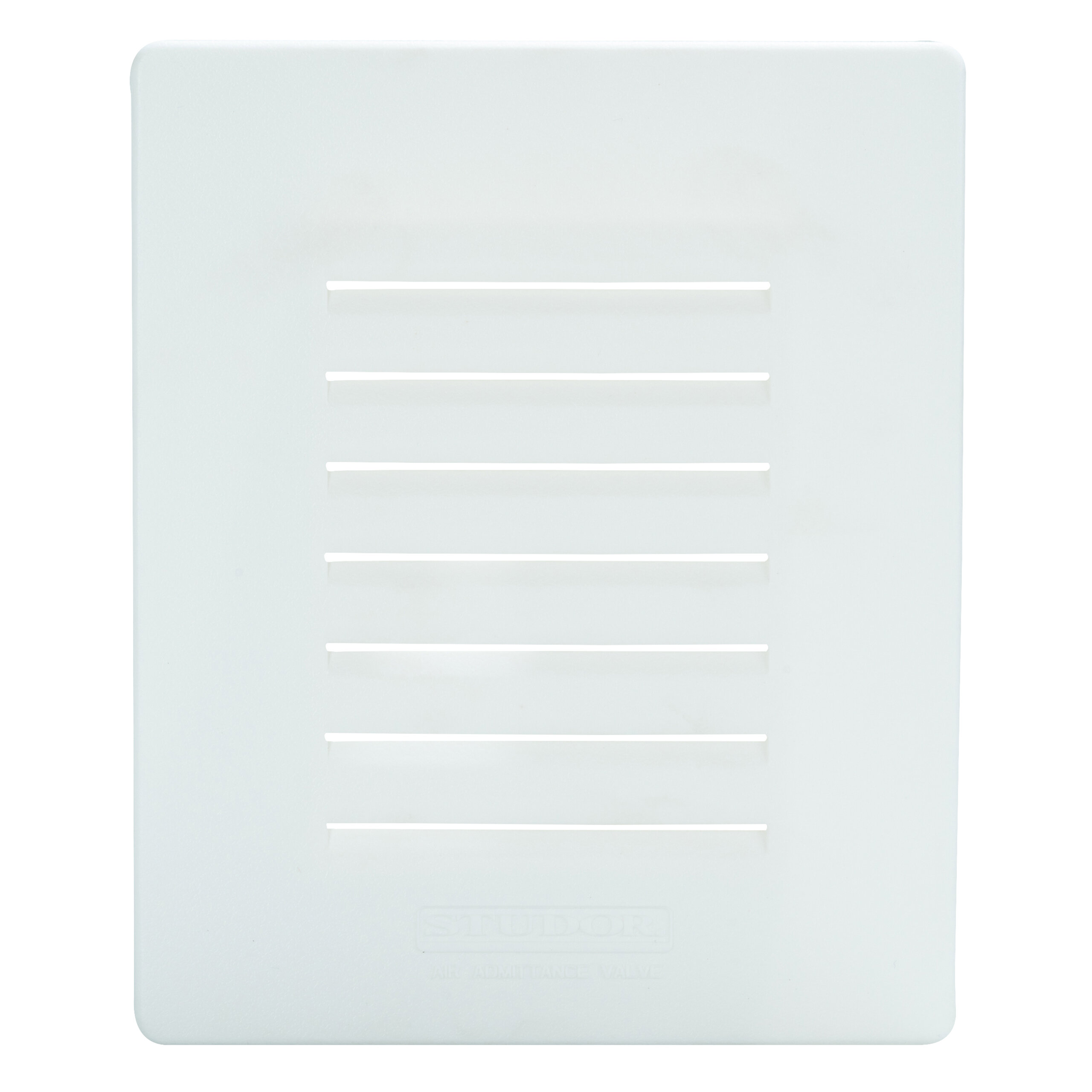

Louvered Faceplate Only |
20385 |
20 |
For general planning and installation, we recommend the use of the information contained on the specification sheet for the Recess Box. The information is based on national standards, plumbing codes and the Hunter curve.
