Tec-Vent®
Product Description and Features

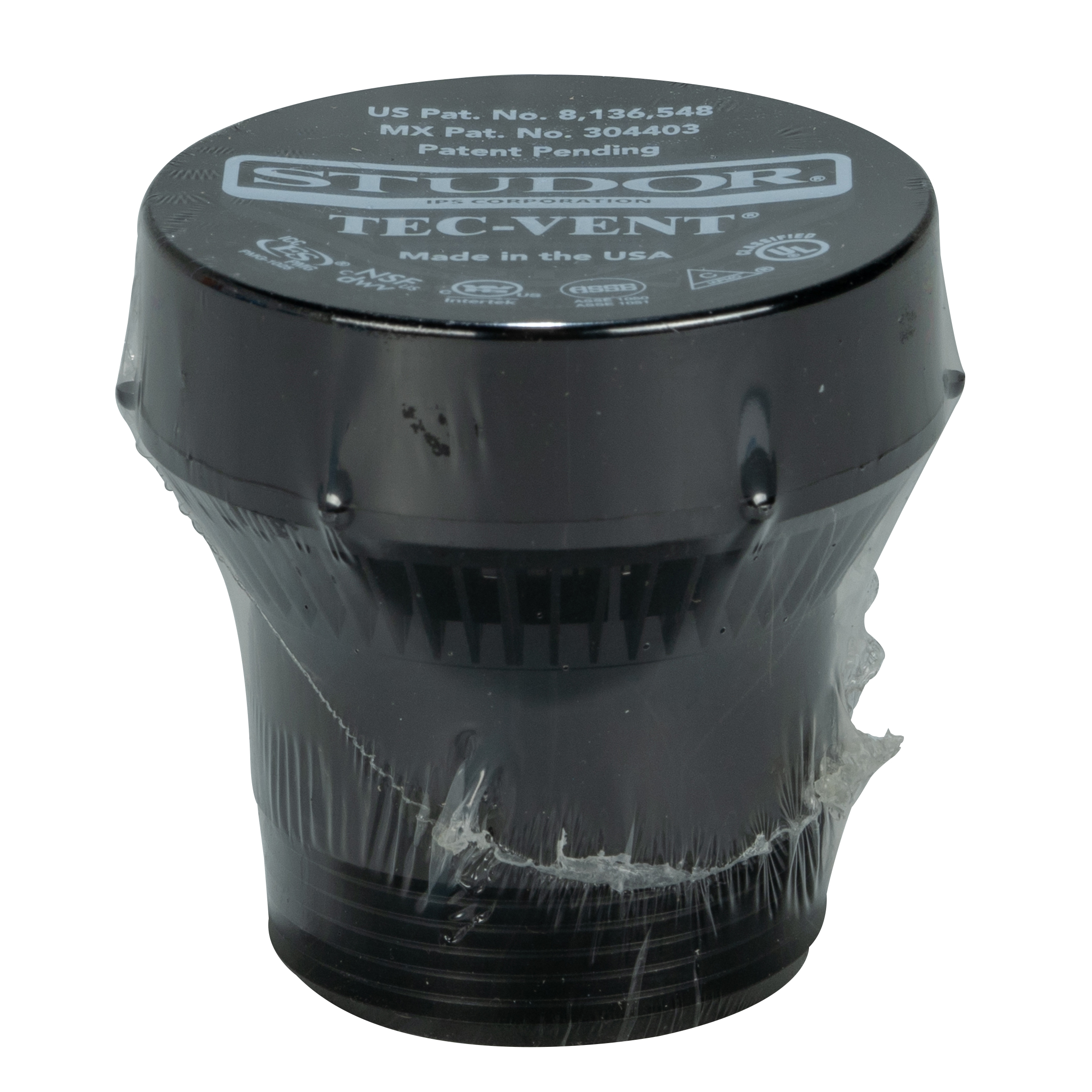

Designed specifically for commercial applications, the Studor Tec-Vent Air Admittance Valve offers a simple drain and waste venting solution. Made of flame-retardant, high-tensile-strength polycarbonate resin, this UV-rated one-way valve automatically opens and takes in fresh air when negative pressure (suction) occurs from a fixture discharging into the plumbing system. When the water flow stops, the Tec-Vent closes naturally due to gravity, preventing the circulation of any bad bathroom or drain odors.
- Classified in accordance with UL2043 for installation in plenums when the system is designed by a design professional
- Manufactured from flame-retardant polycarbonate resin
- High tensile strength
- Will vent up to 160 DFUs
- Exclusive vermin protection system
- Expands architectural design limits
- Reduces the number of fire-stopping applications
- UV rated for outside installations
- Limited lifetime warranty for replacement of defective valves
- Commercial Use
- NSF 14, (In Revision) ASSE 1049 Performance requirements for individual and branch type AAV’s for Chemical Drainage Systems
|
PRODUCT |
DESCRIPTION |
MODEL |
UNITS/CASE |
|
20344 |
Tec-Vent® Air Admittance Valve |
20344 |
12 |
Note: Only thread seal tape can be used on the valves’ threads. Use of primer, solvent cement, or pipe dope will void the Studor® warranty.
For general planning and installation, we recommend the use of the information contained on the specification sheet for the Tec-Vent. The information is based on national standards, plumbing codes and the Hunter curve.
