T-Cone Combination Cleanout Test Plugs

Product Description and Features

The Test-Tite Combination T-Cone Test Plug offers contractors an efficient and reusable option for testing DWV (drain, waste, and vent) systems. Available in many different sizes and compatible with a variety of piping materials (including Schedule 40 DWV, copper, PVC, cast iron, and more), this economical drain test plug is rustproof and designed for reuse. The rubber gasket creates positive sealing that effectively tests up to 50 feet of head pressure.

  • Economical, rust-proof and reusable
  • Positive sealing
  • Tests up to 50 feet of head pressure
  • Materials for 1 ½", 2", and 3" plugs include flexible PVC for the gasket and polypropylene for the threaded plug
  • Materials for 4", 6", and 8" plugs include polyurethane for the gasket and polypropylene for the threaded plug

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

86375

Tests 1-1/2″ Sch. 40 DWV

S 152

10

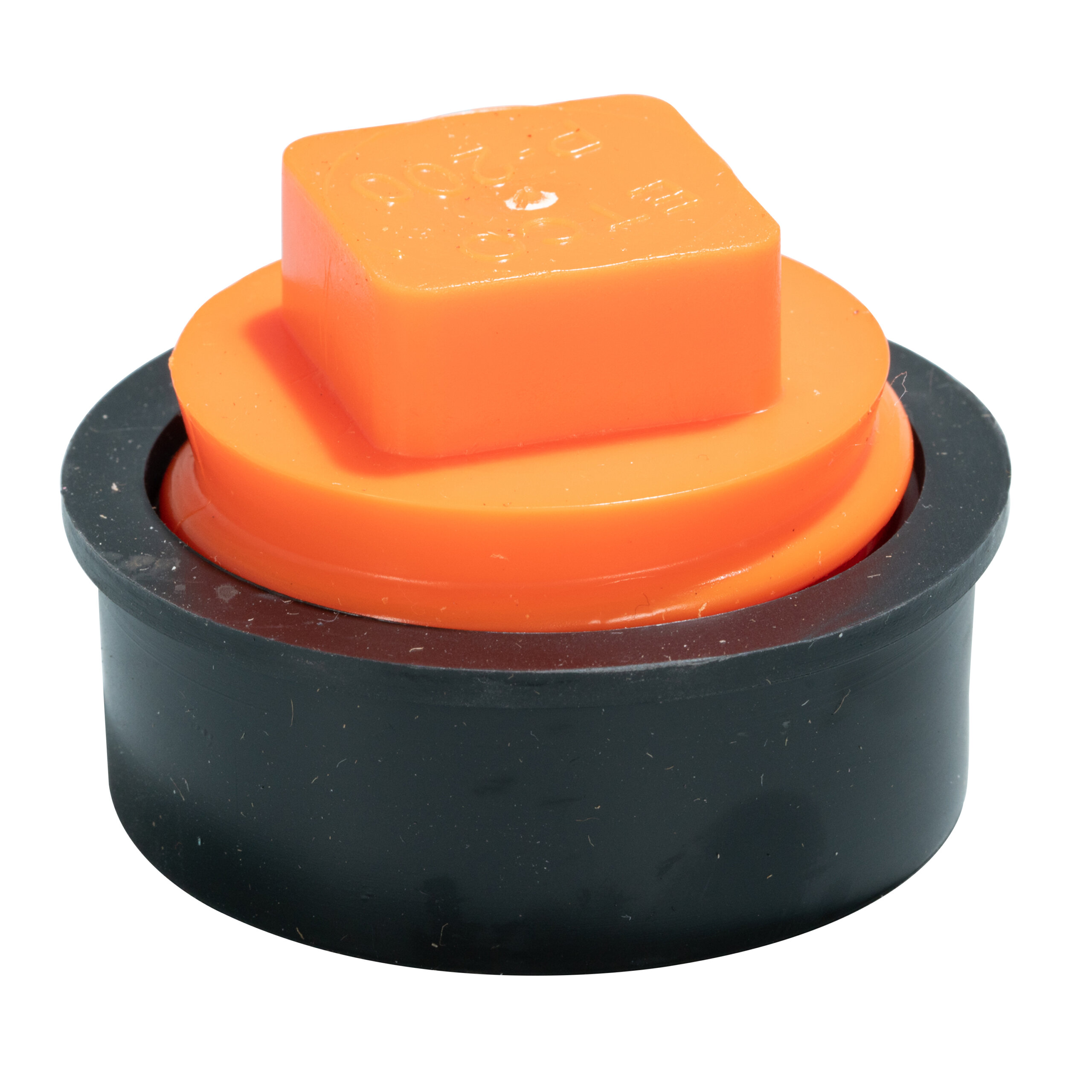

86385

Tests 2″ Sch. 40 DWV & Type “M” Copper Tube

S 202

10

86520

Flush Mount Recessed Plug; Tests 2″ Sch. 40 DWV

CS 202

10

86390

Tests 3″ Sch. 40 & Copper DWV; 2″ Cast Iron Hub

S 302

10

86526

Flush Mount Recessed Plug; Tests 3″ Sch. 40 & Copper DWV, Type “M” Copper

CS 302

50

86455

Tests 3″ Sch. 40 Socket

S 300

50

86395

Tests 4″ Type “M” Copper Tube, Cast Iron Closet Bend (SW), VCP Barrel

S 401

10

86400

Tests 4″ Sch. 40 & Copper DWV, PVC S&D, Cast Iron & VCP Barrel; 3″ Cast Iron Hub

S 402

10

86535

Flush Mount Recessed Plug; Tests 4″ Sch. 40 & Copper DWV, PVC S&D, Cast Iron Barrel

CO 402

50

86420

Tests 6″ Copper DWV, PVC PSM (SDR 35), PVC DR-14, CI & VCP Barrel

S601

10

86425

Tests 6″ Sch. 40 DWV, PVC DR-18, Cast Iron Barrel (EH)

S602

10

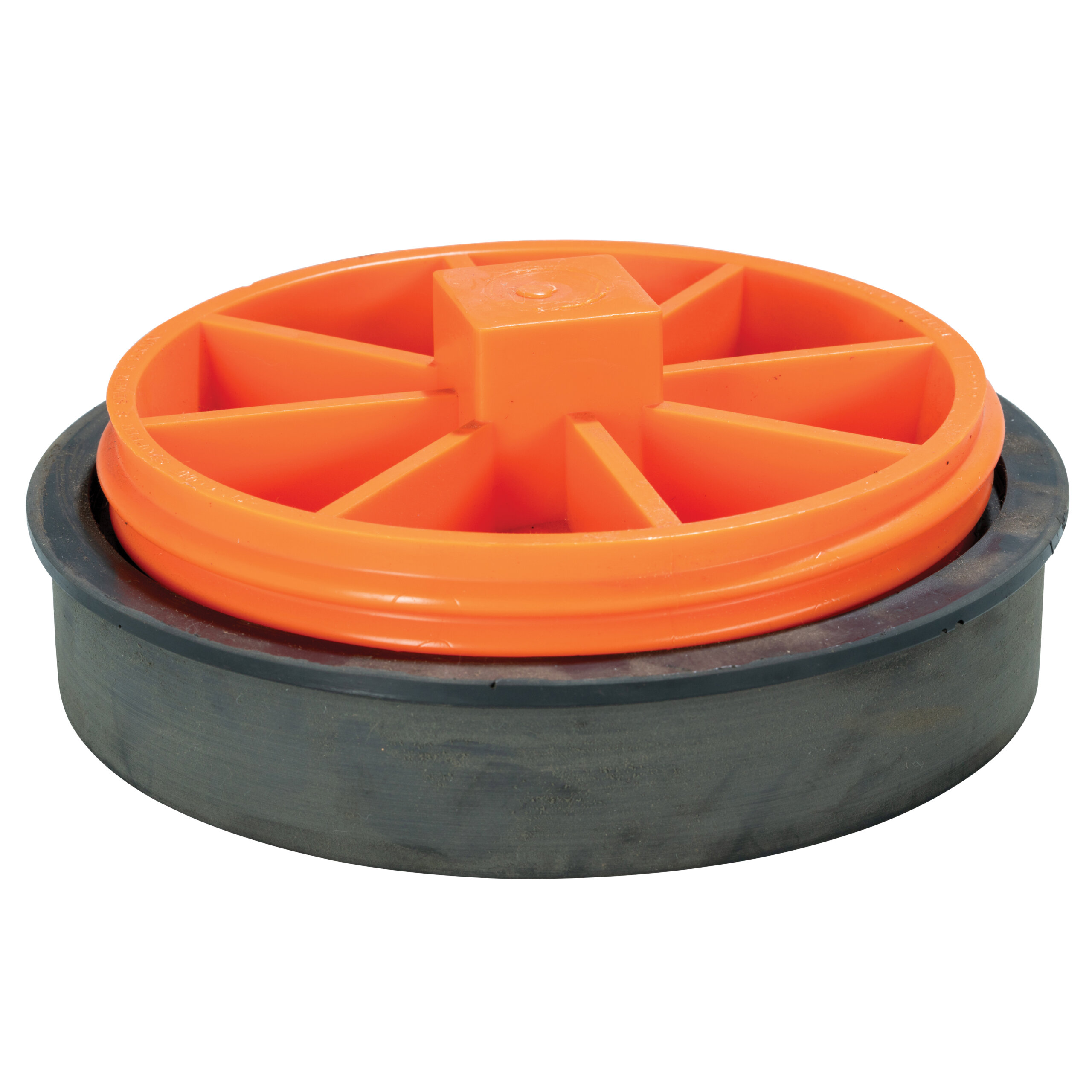

86435

Tests 8″ Sch. 40 DWV, PVC PSM (SDR 35), PVC DR-18, VCP Barrel

S802

20

Don’t see the product you need? Call Customer Service at 800-888-8312.
