Multi-Size Pneumatic Test Plugs

Product Description and Features

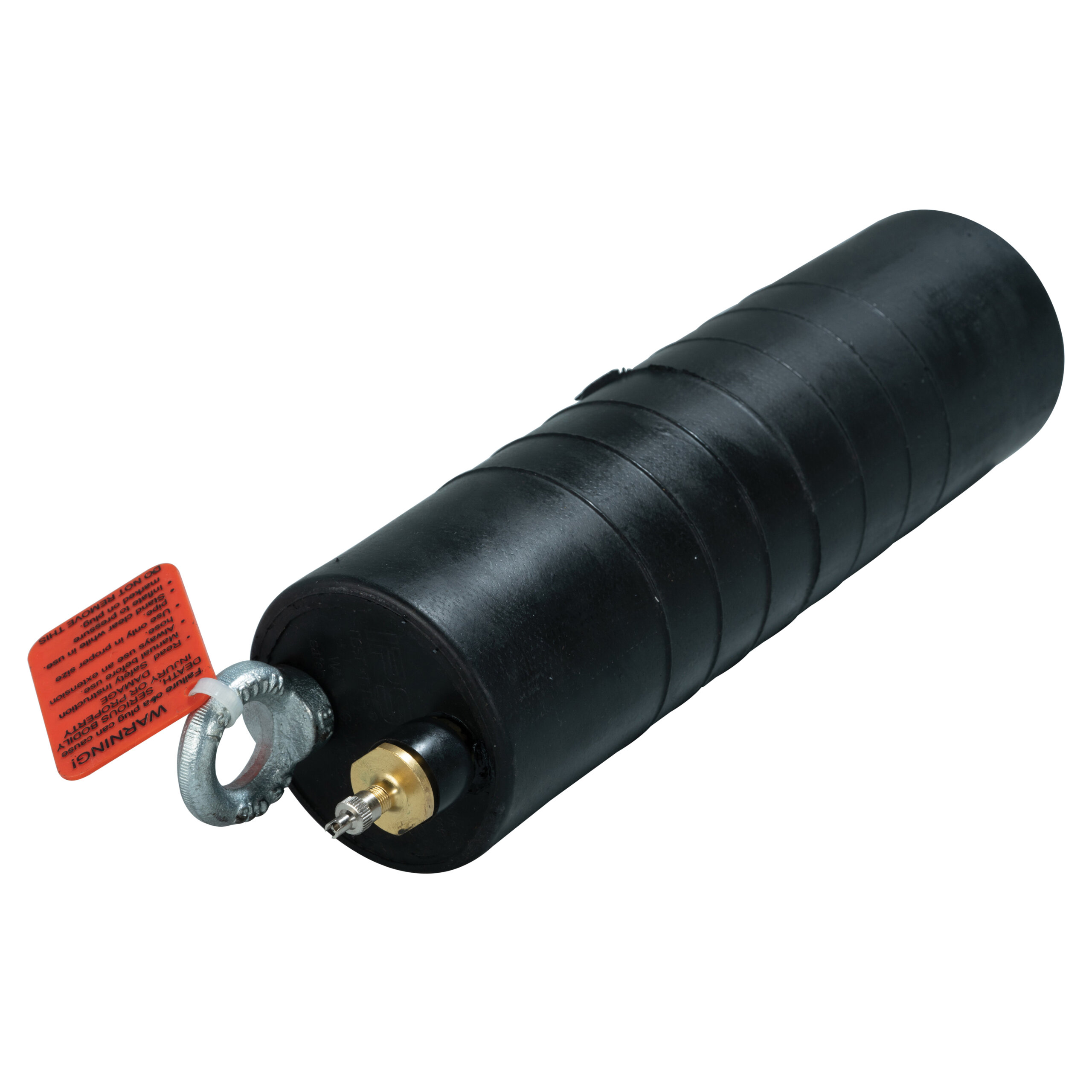

Safely and reliably test DWV (drain, waste, and vent) systems with the Test-Tite Natural Rubber Multi-Size Pneumatic Test Plug. Designed for two or more pipe sizes, this test plug is suitable for use with many different piping materials and offers contractors a dependable option for testing and temporarily stopping the flow of pipelines. Plug models for 4- to 8-inch NPS through 12- to 24-inch NPS include a pressure-relief valve that reduces the risk associated with overinflation by releasing excess pressure into the atmosphere, so the plug doesn’t rupture in the pipe. Flexible yet rugged, the Test-Tite Multi-Size Pneumatic Test Plug is constructed from a durable natural rubber compound and can be reused for multiple jobs. Plug models for 1-1/4- to 2-inch NPS through 3- to 4-inch NPS come with a 1/4-inch NPT replaceable inflation valve.

  • Designed for the testing of pipelines or to temporarily stop the flow
  • Each plug is designed for two or more pipe sizes
  • Plugs are suitable for many different pipe materials
  • Manufactured from a durable natural rubber compound
  • 4-8" through 12-24" sizes come with a replaceable pressure relief valve
  • 1 1/4"-2" through 3-4" sizes come with a 1/4" NPT Replaceable Inflation Valve
  • Contains an eyebolt for tethering
  • Replaceable tank valve can be changed to a quick disconnect plug for faster inflation
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs

83211

3/4″ – 1-1/2″ Multi-Size Standard Pneumatic Test Plug

83211

1

83212

1-1/4″ – 2″ Multi-Size Standard Pneumatic Test Plug

83212

6

83225

2″ – 3″ Multi-Size Standard Pneumatic Test Plug

83225

6

83234

3″ – 4″ Multi-Size Standard Pneumatic Test Plug

83234

6

83246

4″ – 6″ Multi-Size Standard Pneumatic Test Plug

83246

1

83248

4″ – 8″ Multi-Size Standard Pneumatic Test Plug w/ PR Valve

83248

1

83268

6″ – 8″ Multi-Size Standard Pneumatic Test Plug w/ PR Valve

83268

1

83261

6″ – 10″ Multi-Size Standard Pneumatic Test Plug w/ PR Valve

83261

1

83282

8″ – 12″ Multi-Size Standard Pneumatic Test Plug w/ PR Valve

83282

1

83216

10″ – 16″ Multi-Size Standard Pneumatic Test Plug w/ PR Valve

83216

1

83218

12″ – 18″ Multi-Size Standard Pneumatic Test Plug w/ PR Valve

83218

1

83633

12″ – 24″ Large Diameter Multi-Size Pneumatic Test Plug w/ PR Valve

83633

1

Don’t see the product you need? Call Customer Service at 800-888-8312.
