Plastic Water Heater Pans
Product Description and Features

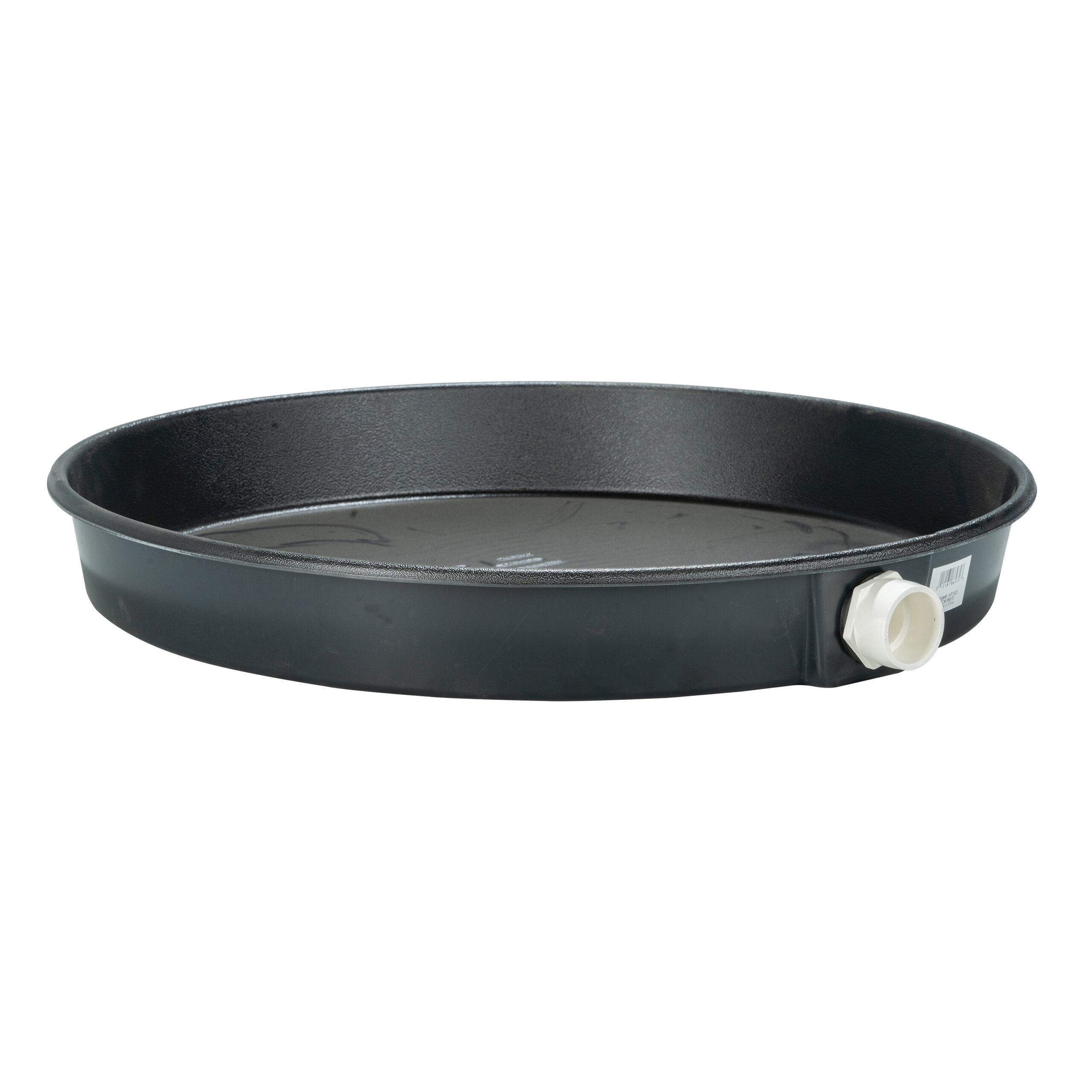

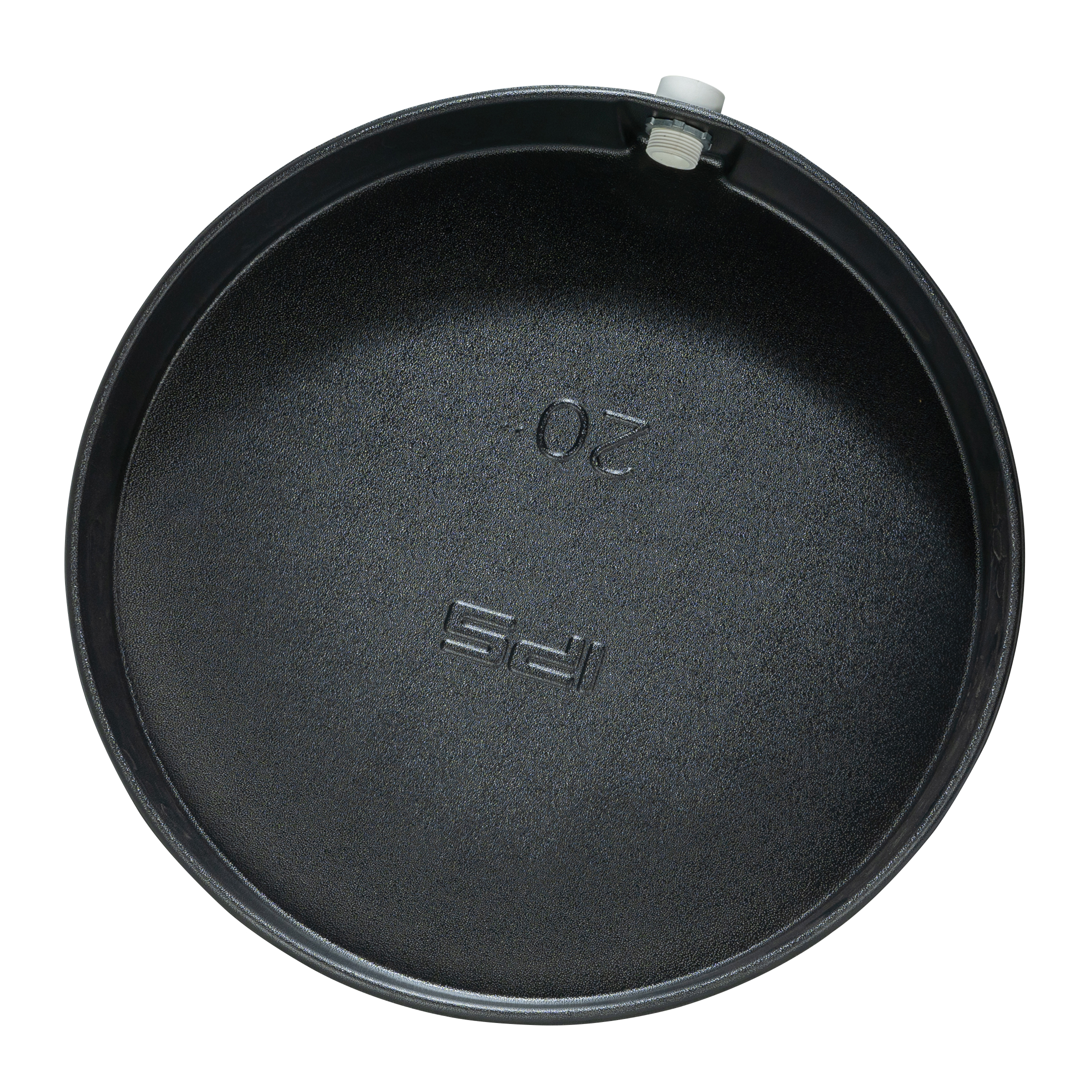

Prevent costly water damage to walls, floors, and more with the Water-Tite Circular Water Heater Pan. Measuring 2-1/2 inches deep, this water heater pan is designed to be installed under electric water heaters to catch potential leaks. It comes with a pre-drilled drain connection hole and is furnished with a drain kit that allows water to run freely from the pan to the drain, preventing the drain pan from overflowing. Each water heater pan is made of flexible high-impact plastic that will not rust and is easy to install. Choose from a variety of pan diameters to fit your current or future water heater (a 2-inch clearance around the diameter of the water heater pan is recommended). PVC and CPVC-compatible drain connections are both available. In PVC models, the drain adapter fits over 1-inch and inside of 1-1/2-inch PVC pipe. In CPVC models, the drain adapter fits 1-inch CPVC pipe.
- New plastic material allows for increased flexibility and ease of installation
- Circular pans recommended for electric water heater protection
- 2 1/2" inch deep and .065 in thickness
- 1 piece construction of high impact plastic
- Available with Pre-drilled with 1 x 1-1/2" PVC Drain Kit or 1" CPVC Kit
- Complies with the 2015 IRC thickness requirements of not less than .036
- California Residents: WARNING – www.P65warnings.ca.gov
|
PRODUCT |
DESCRIPTION |
MODEL |
UNITS/CASE |
|
Plastic Water Heater Pans, PVC Drain Connection |
|||
|
86970 |
18″ ID x 20″ OD Pan, 1″ x 1-1/2″ PVC Drain Conx. |
HP1820 |
20 |
|
86975 |
20″ ID x 22″ OD Pan, 1″ x 1-1/2″ PVC Drain Conx. |
HP2022 |
20 |
|
86980 |
22″ ID x 24″ OD Pan, 1″ x 1-1/2″ PVC Drain Conx. |
HP2224 |
20 |
|
86985 |
24″ ID x 26″ OD Pan, 1″ x 1-1/2″ PVC Drain Conx. |
HP2426 |
20 |
|
86990 |
26″ ID x 28″ OD Pan, 1″ x 1-1/2″ PVC Drain Conx. |
HP2628 |
10 |
|
86997 |
28″ ID x 30″ OD Pan, 1″ x 1-1/2″ PVC Drain Conx. |
HP2830 |
5 |
|
86995 |
30″ ID x 32″ OD Pan, 1″ x 1-1/2″ PVC Drain Conx. |
HP3032 |
5 |
|
87066 |
32″ ID x 34″ OD Pan, 1″ x 1-1/2″ PVC Drain Conx. |
HP3234 |
5 |
|
Plastic Water Heater Pans, CPVC Drain Connection |
|||
|
86979 |
20″ ID x 22″ OD Pan, 1″ CPVC Drain Conx. |
HP2022C |
20 |
|
86984 |
22″ ID x 24″ OD Pan, 1″ CPVC Drain Conx. |
HP2224C |
20 |
|
86989 |
24″ ID x 26″ OD Pan, 1″ CPVC Drain Conx. |
HP2426C |
20 |
|
86994 |
26″ ID x 28″ OD Pan, 1″ CPVC Drain Conx. |
HP2628C |
10 |
|
86999 |
28″ ID x 30″ OD Pan, 1″ CPVC Drain Conx. |
HP2830C |
5 |
|
86998 |
30″ ID x 32″ OD Pan, 1″ CPVC Drain Conx. |
HP3032C |
5 |
|
87073 |
32″ ID x 34″ OD Pan, 1″ CPVC Drain Conx. |
HP3234C |
5 |
|
Plastic Water Heater Pans, PVC Drain Connection, No Hole |
|||
|
86976 |
20″ ID x 22″ OD Pan Undrilled, 1″ x 1-1/2″ PVC Drain Connection |
HP2022NH |
20 |
|
86981 |
22″ ID x 24″ OD Pan Undrilled, 1″ x 1-1/2″ PVC Drain Connection |
HP2224NH |
20 |
|
86986 |
24″ ID x 26″ OD Pan Undrilled, 1″ x 1-1/2″ PVC Drain Connection |
HP2426NH |
20 |
|
86991 |
26″ ID x 28″ OD Pan Undrilled, 1″ x 1-1/2″ PVC Drain Connection |
HP2628NH |
10 |
|
86996 |
30″ ID x 32″ OD Pan Undrilled, 1″ x 1-1/2″ PVC Drain Connection |
HP3032NH |
5 |
Don’t see the product you need? Call Customer Service at 800-888-8312.
