Metal DWV Hanger with Plastic Sleeve

Product Description and Features

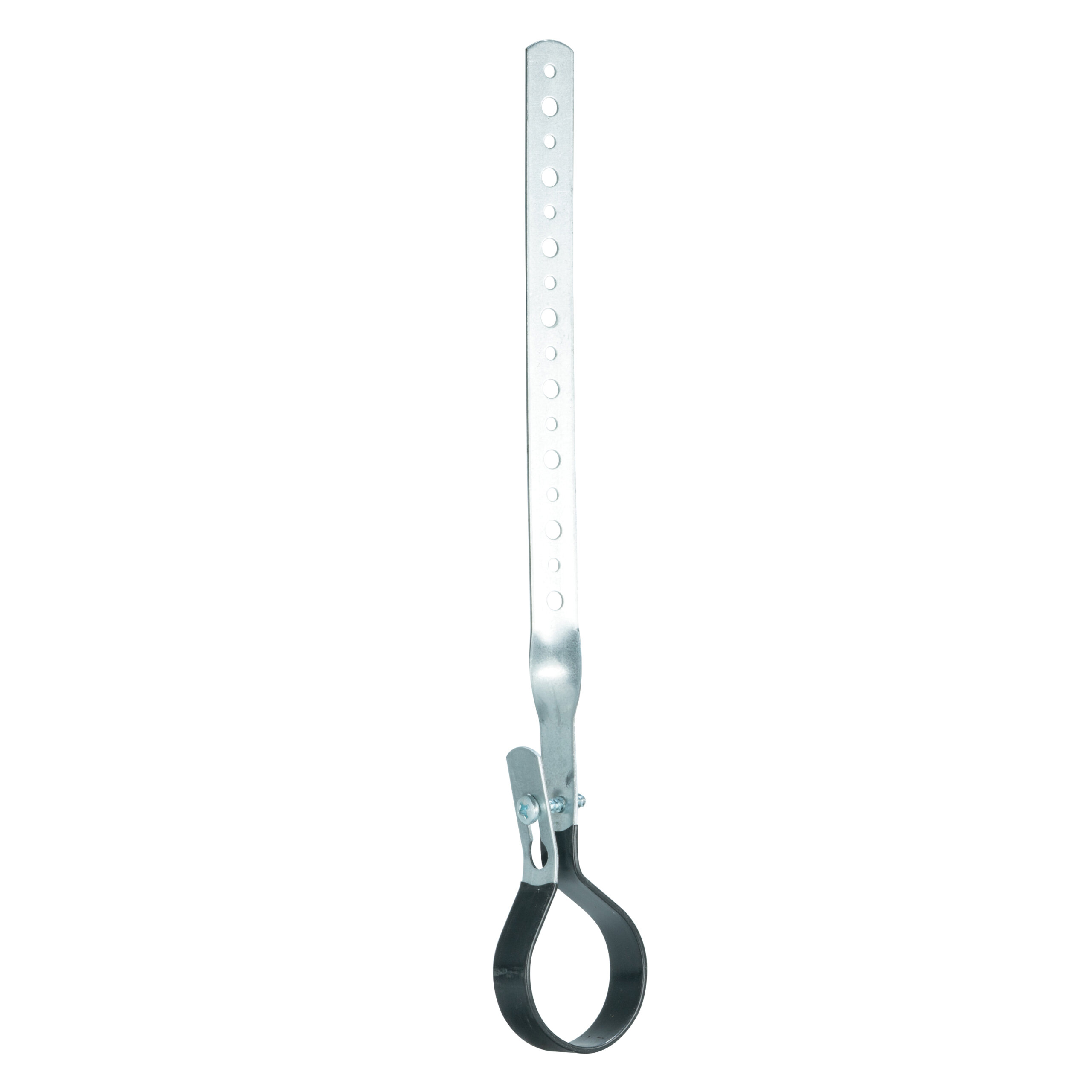

Water-Tite Metal DWV Hangers safely suspend and secure DWV (drain, waste, and vent) piping, providing maximum support for a wide variety of applications. Available with or without plastic sleeves, these metal pipe hangers are made of durable 16-gauge galvanized steel with a 3/4-inch-wide stem that is designed to mount flat against the joist. Once installed, the hangers keep supported piping securely in place while still allowing it sufficient space to expand and contract, thereby reducing unpleasant noises and vibrations. Each pipe hanger comes with a pre-installed combo-head #12 screw.

  • Provide maximum support for DWV pipe
  • Secures 1 1/2" - 4" piping
  • 3/4" width
  • Minimum 12" stem for ease in mounting
  • 16 gauge, glavanized construction
  • Contains pre-installed, combo head #12 screw
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

82834

1-1/2″ Galvanized DWV hanger with plastic sleeve, 3/4″ width

MH421

50

82835

2″ Galvanized DWV hanger with plastic sleeve, 3/4″ width

MH422

50

82836

3″ Galvanized DWV hanger with plastic sleeve, 3/4″ width

MH423

50

82837

4″ Galvanized DWV hanger with plastic sleeve, 3/4″ width

MH424

50

Don’t see the box you need? Call Customer Service at 800-888-8312.
