Round Base Metal Roof Flashing – Black

Product Description and Features

These pipe flashings are specifically engineered for metal roof applications. This versatile product combines exceptional weather resistance with a user-friendly design that makes installation in metal roofs quick and easy. Engineered to withstand extreme weather conditions, it ensures a secure, long-lasting seal that protects structures from harsh elements. The Water-Tite® metal roof flashing provides a reliable solution tailored to the unique demands of metal roofing projects.

  • Sleeve flexibility absorbs vibration and pipe movement caused by expansion/contraction
  • Easy on-site customization can accommodate all normal installations
  • Adaptable Base is designed to mold to most panel configurations and roof pitches regardless of pipe location
  • Weather Protection: Made of EPDM or high-temperature silicone, these flashings are compounded specifically for maximum resistance to weathering due to ozone and ultraviolet light
  • EPDM is lab tested and certified to IAPMO PS64-2012ea1
  • Round Base installations up to 10/12 pitch

PRODUCT

DESCRIPTION

PIPE SIZE

BASE SIZE

MODEL

UNITS/CASE

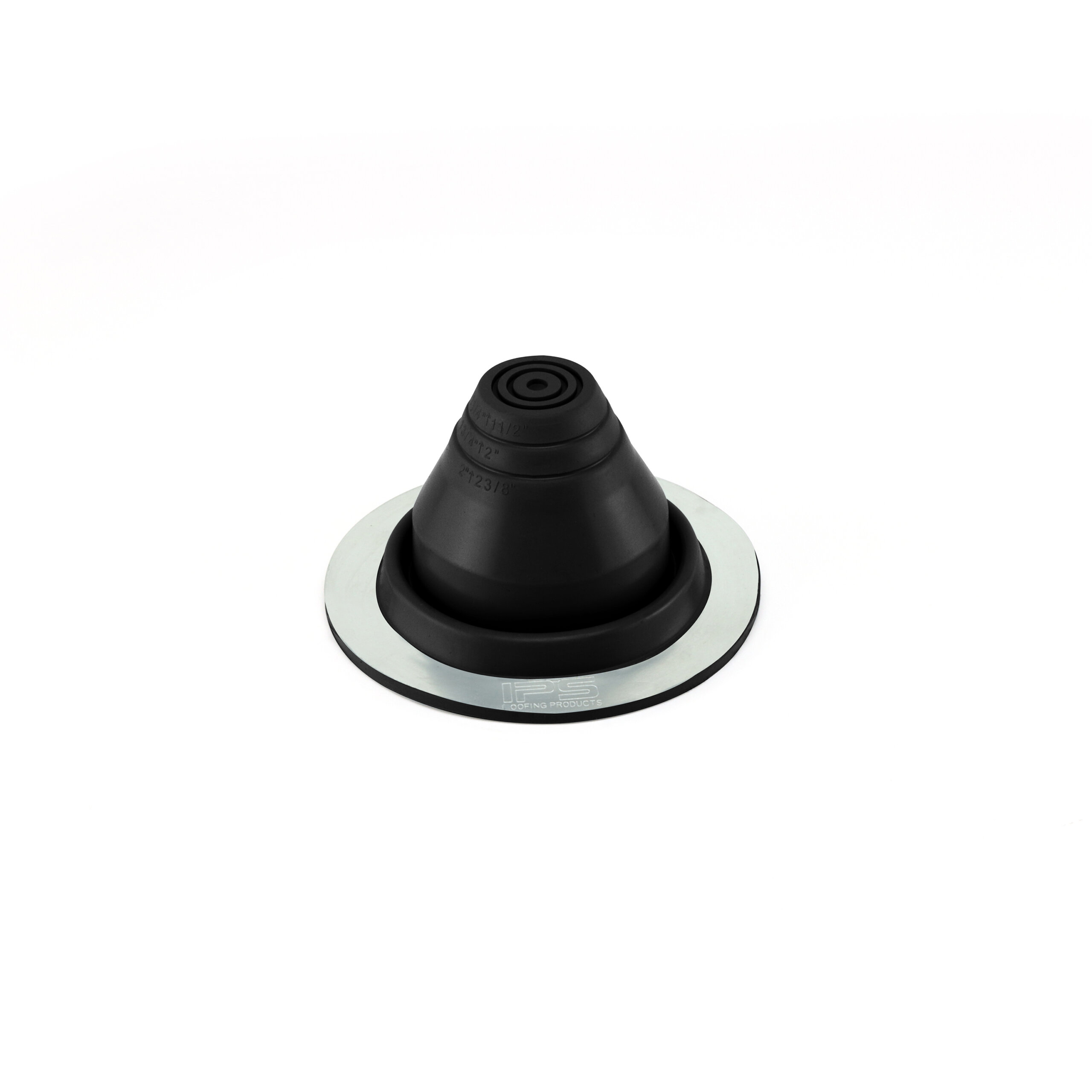

81468

#1, Black, EPDM

0″–2-3/8″

4-3/4″

MRF1BRD

10

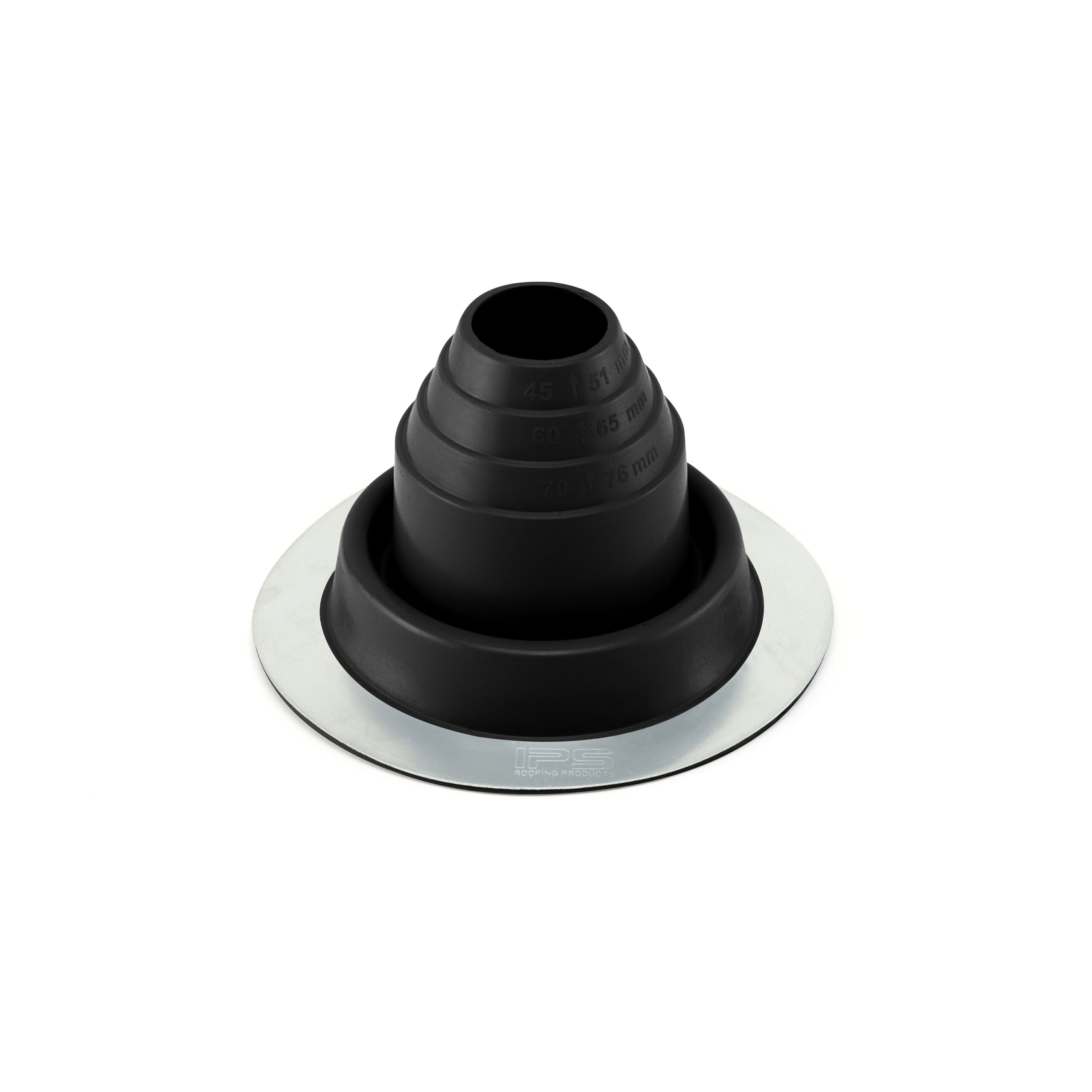

81469

#2, Black, EPDM

1-3/4”–3”

6-1/4″

MRF2BRD

10

81470

#3, Black, EPDM

0″–5″

7-3/4″

MRF3BRD

10

81471

#4, Black, EPDM

3″–6-1/4″

9-1/4″

MRF4BRD

10

81472

#5, Black, EPDM

4-1/4″–7-1/2″

11″

MRF5BRD

10

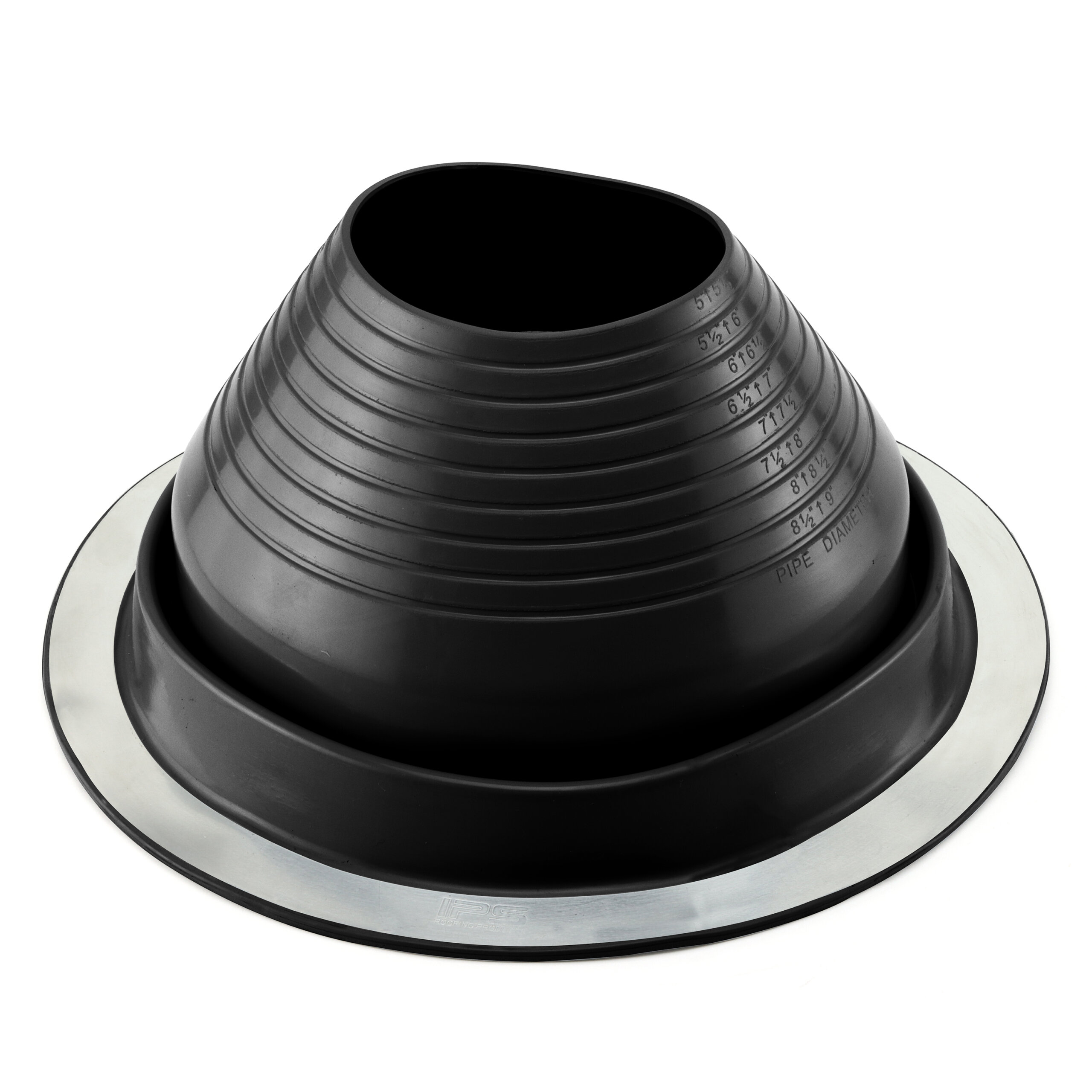

81473

#6, Black, EPDM

5″–9″

12-1/2″

MRF6BRD

10

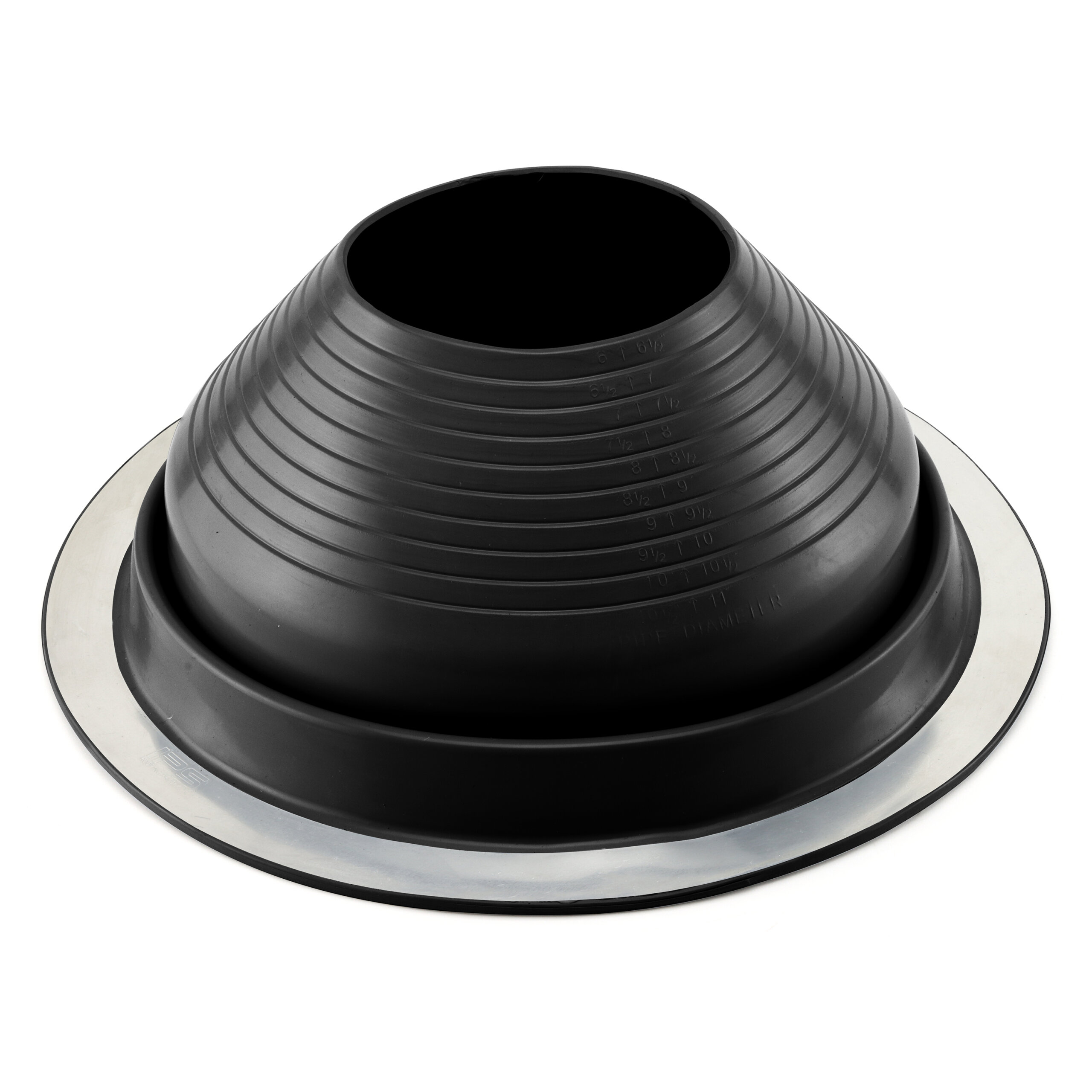

81474

#7, Black, EPDM

6″–11″

14-1/2″

MRF7BRD

10

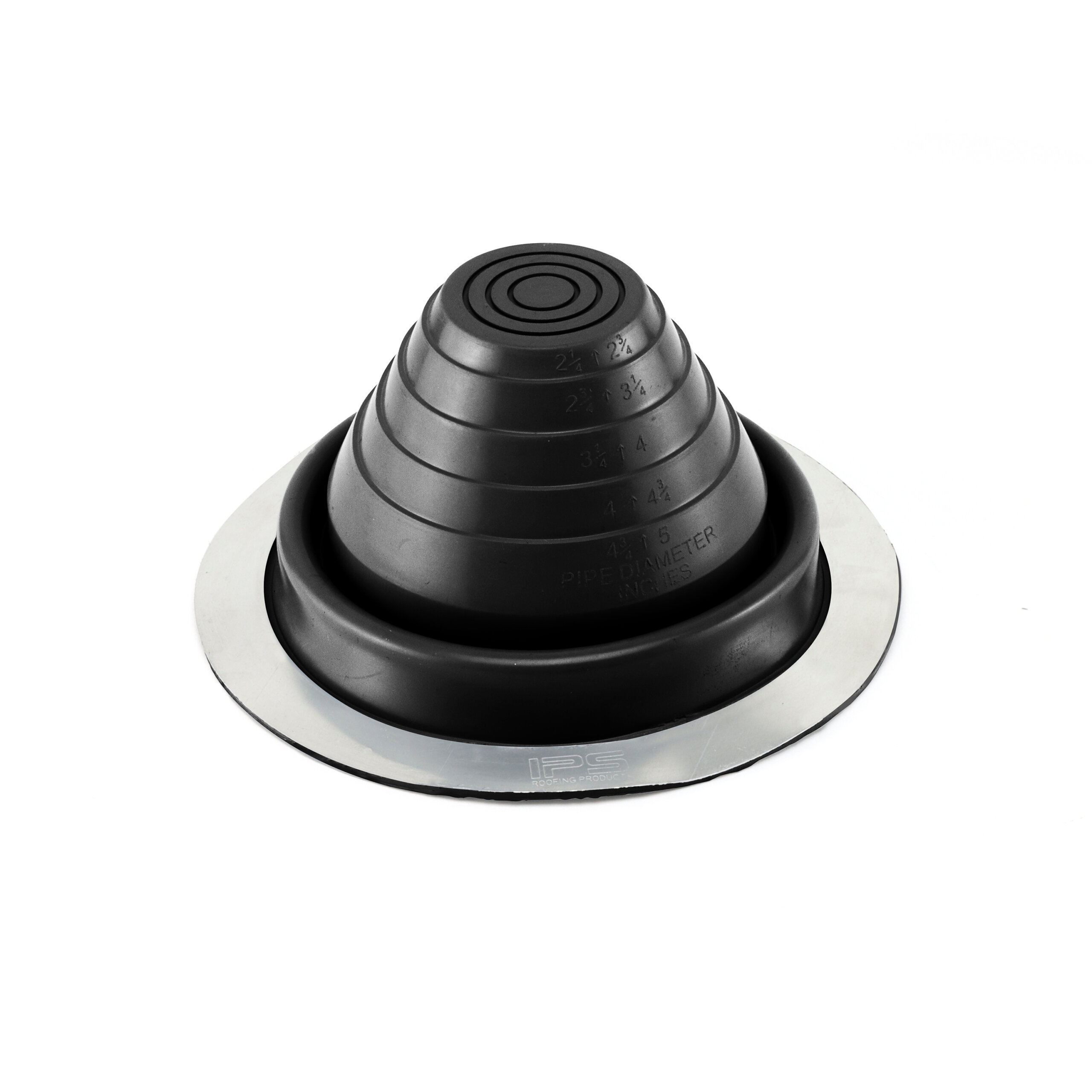

81477

#3, Black, Silicone

0-5″

7-3/4″

MRF3BSRD

6

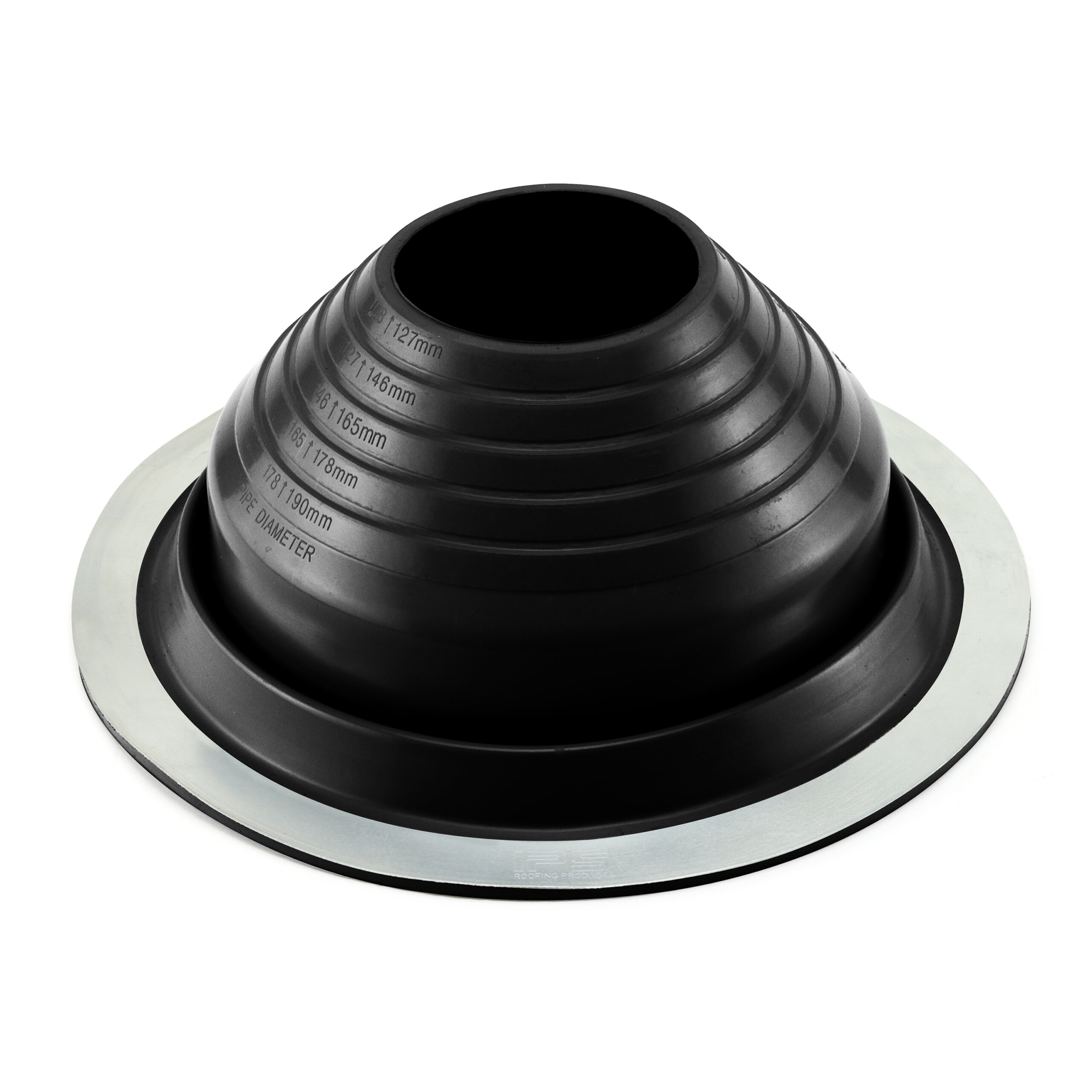

81478

#5, Black, Silicone

4-1/4″–7-1/2″

11″

MRF5BSRD

6

Don’t see the product you need? Call Customer Service at 800-888-8312.
