Round Base Metal Roof Flashing – Gray

Product Description and Features

These pipe flashings are specifically engineered for metal roof applications. This versatile product combines exceptional weather resistance with a user-friendly design that makes installation in metal roofs quick and easy. Engineered to withstand extreme weather conditions, it ensures a secure, long-lasting seal that protects structures from harsh elements. The Water-Tite® metal roof flashing provides a reliable solution tailored to the unique demands of metal roofing projects.

  • Sleeve flexibility absorbs vibration and pipe movement caused by expansion/contraction
  • Easy on-site customization can accommodate all normal installations
  • Adaptable Base is designed to mold to most panel configurations and roof pitches regardless of pipe location
  • Weather Protection: Made of EPDM, these flashings are compounded specifically for maximum resistance to weathering due to ozone and ultraviolet light
  • EPDM is lab tested and certified to IAPMO PS64-2012ea1
  • Round Base installations up to 10/12 pitch

PRODUCT

DESCRIPTION

PIPE SIZE

BASE SIZE

MODEL

UNITS/CASE

81820

#1, Gray, EPDM

0″–2-3/8″

4-3/4″

MRF1GRD

10

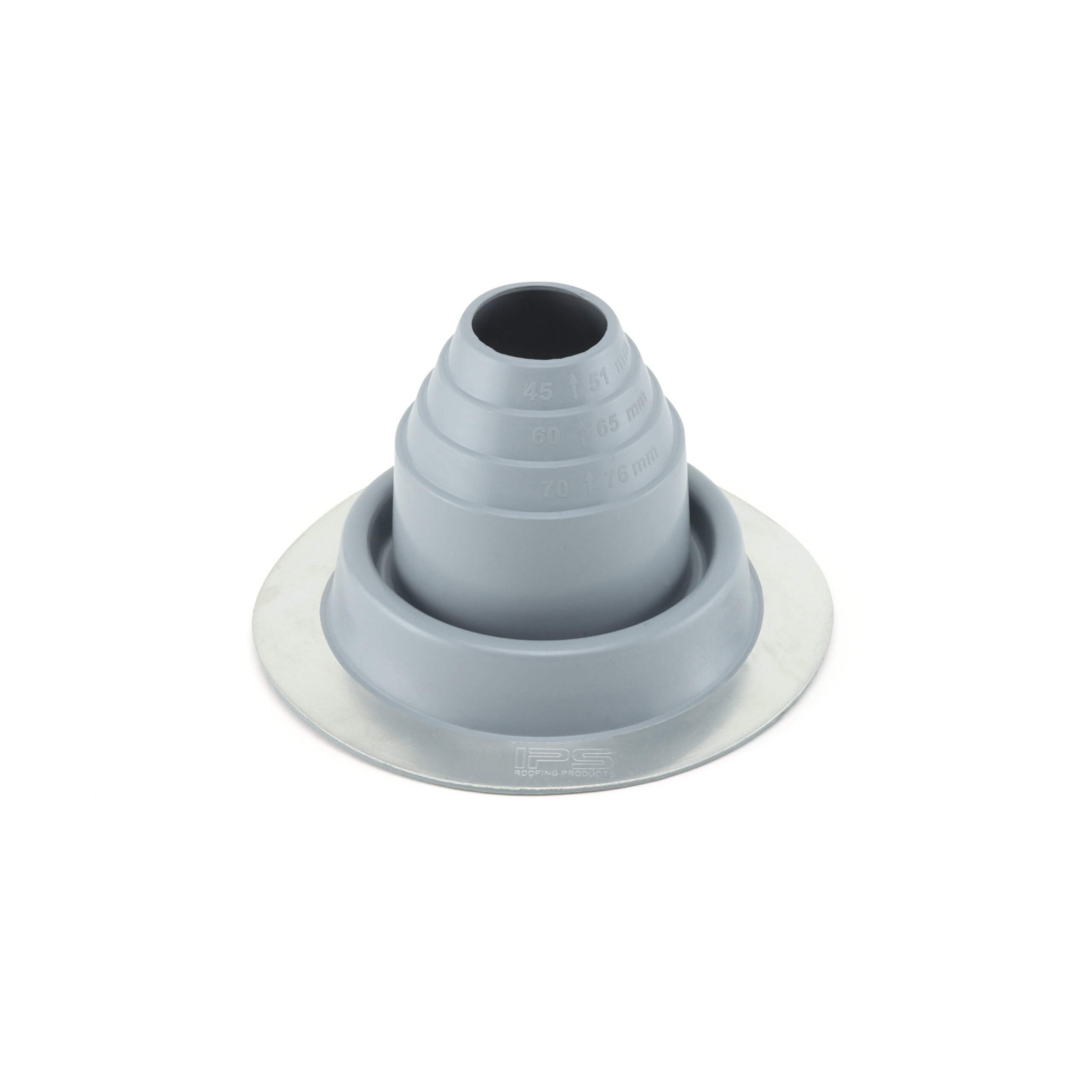

81821

#2, Gray, EPDM

1-3/4″–3″

6-1/4″

MRF2GRD

10

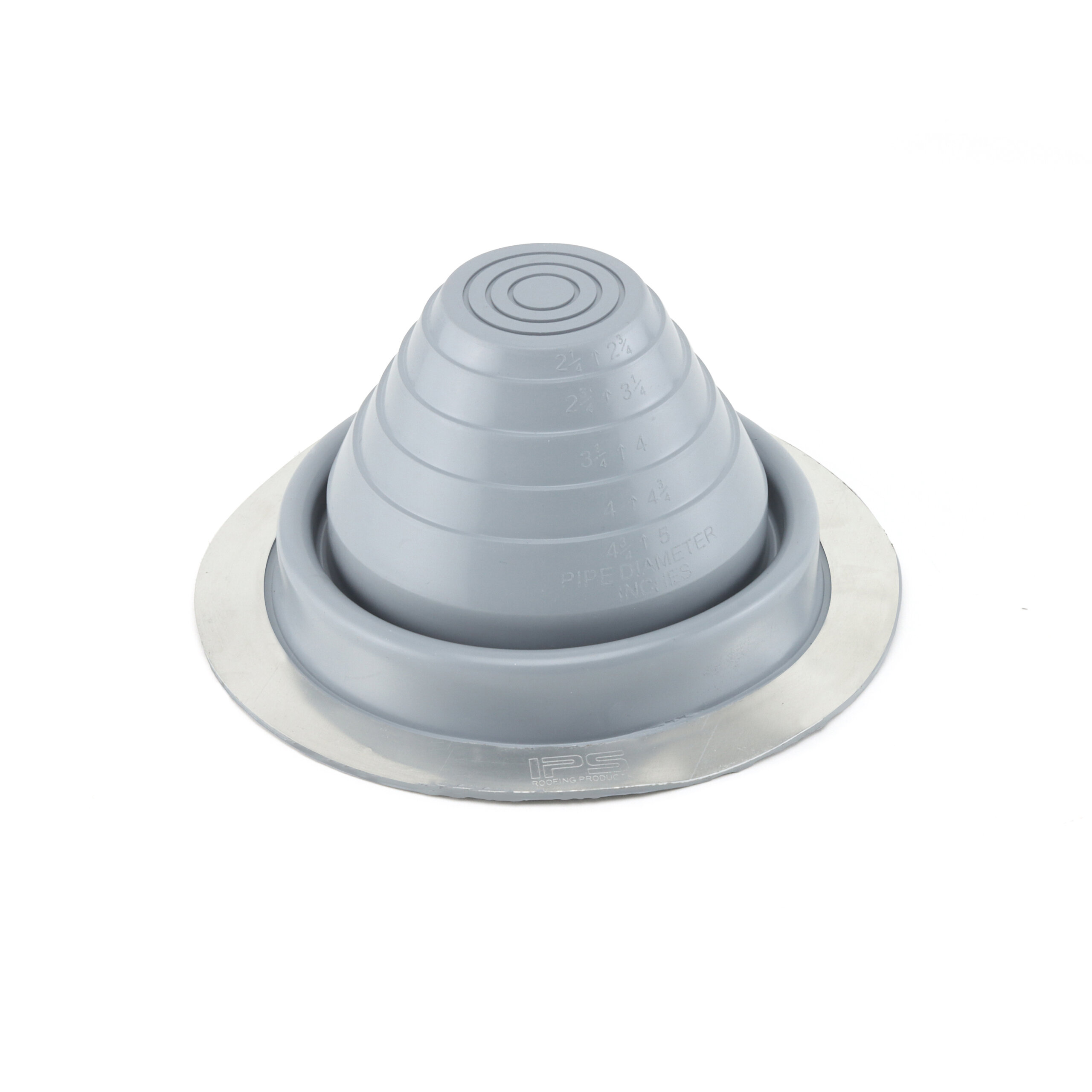

81822

#3,Gray, EPDM

0″–5″

7-3/4″

MRF3GRD

10

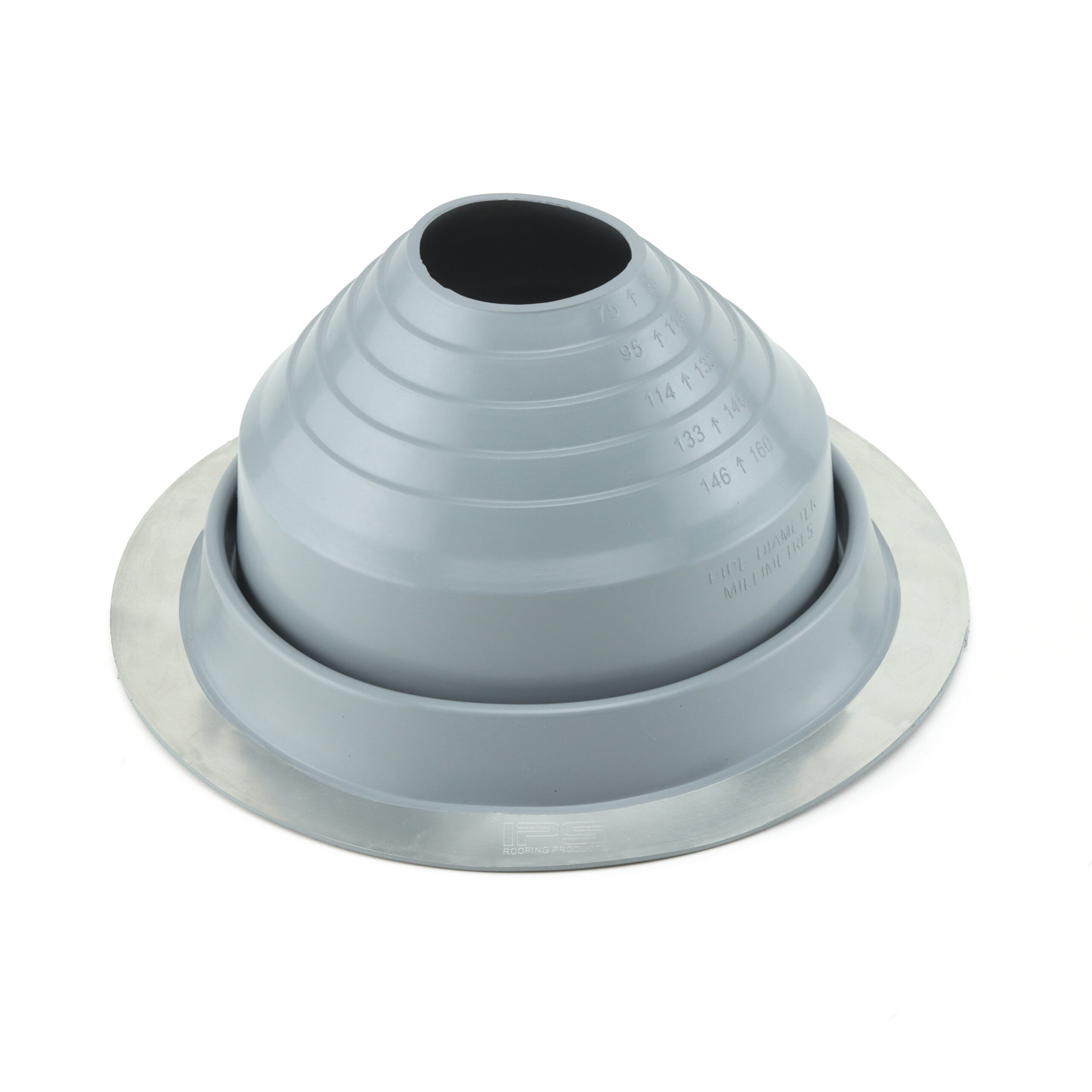

81823

#4, Gray, EPDM

3″–6-1/4″

9-1/4″

MRF4GRD

10

81824

#5, Gray, EPDM

4-1/4″–7-1/2″

11″

MRF5GRD

10

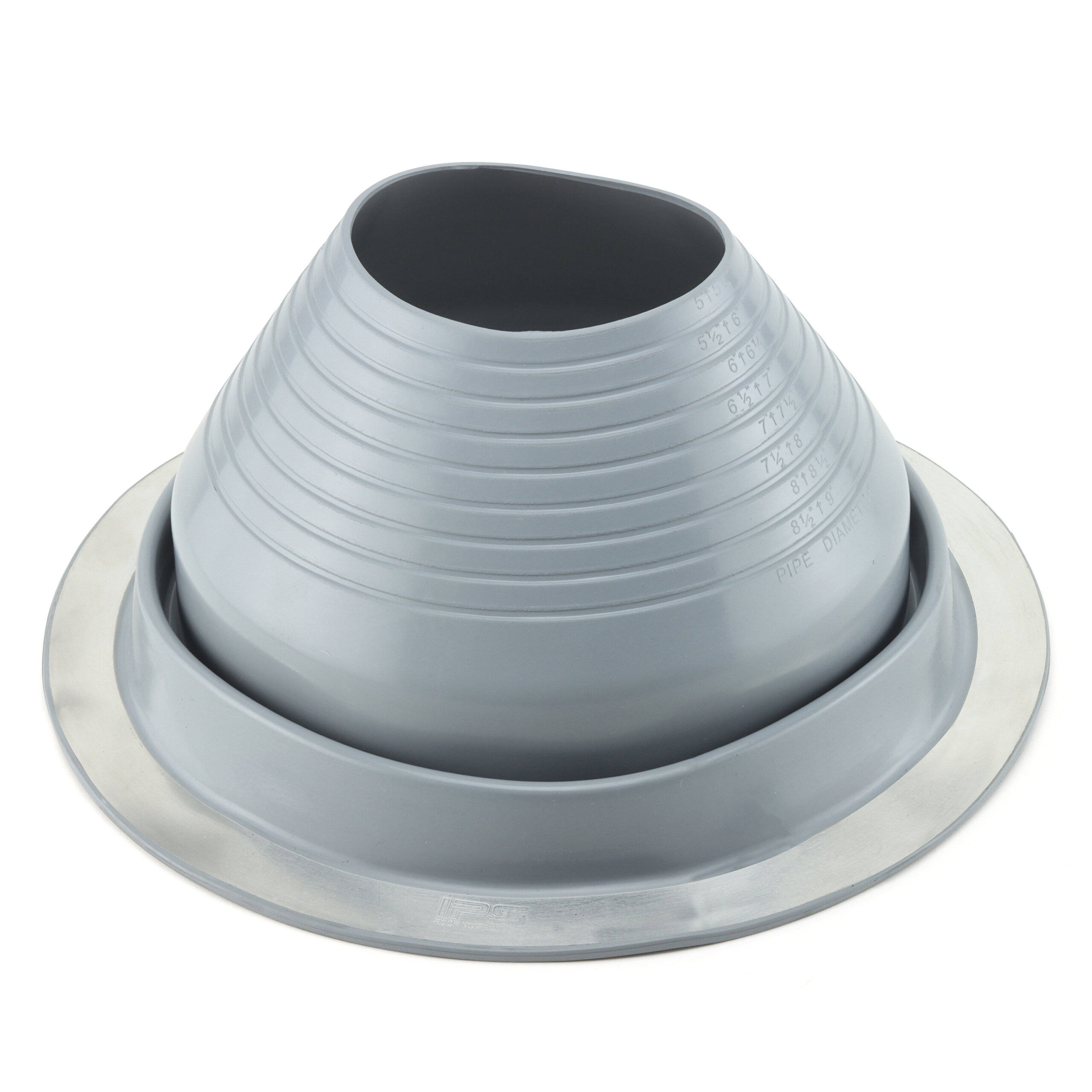

81825

#6, Gray, EPDM

5″–9″

12-1/2″

MRF6GRD

10

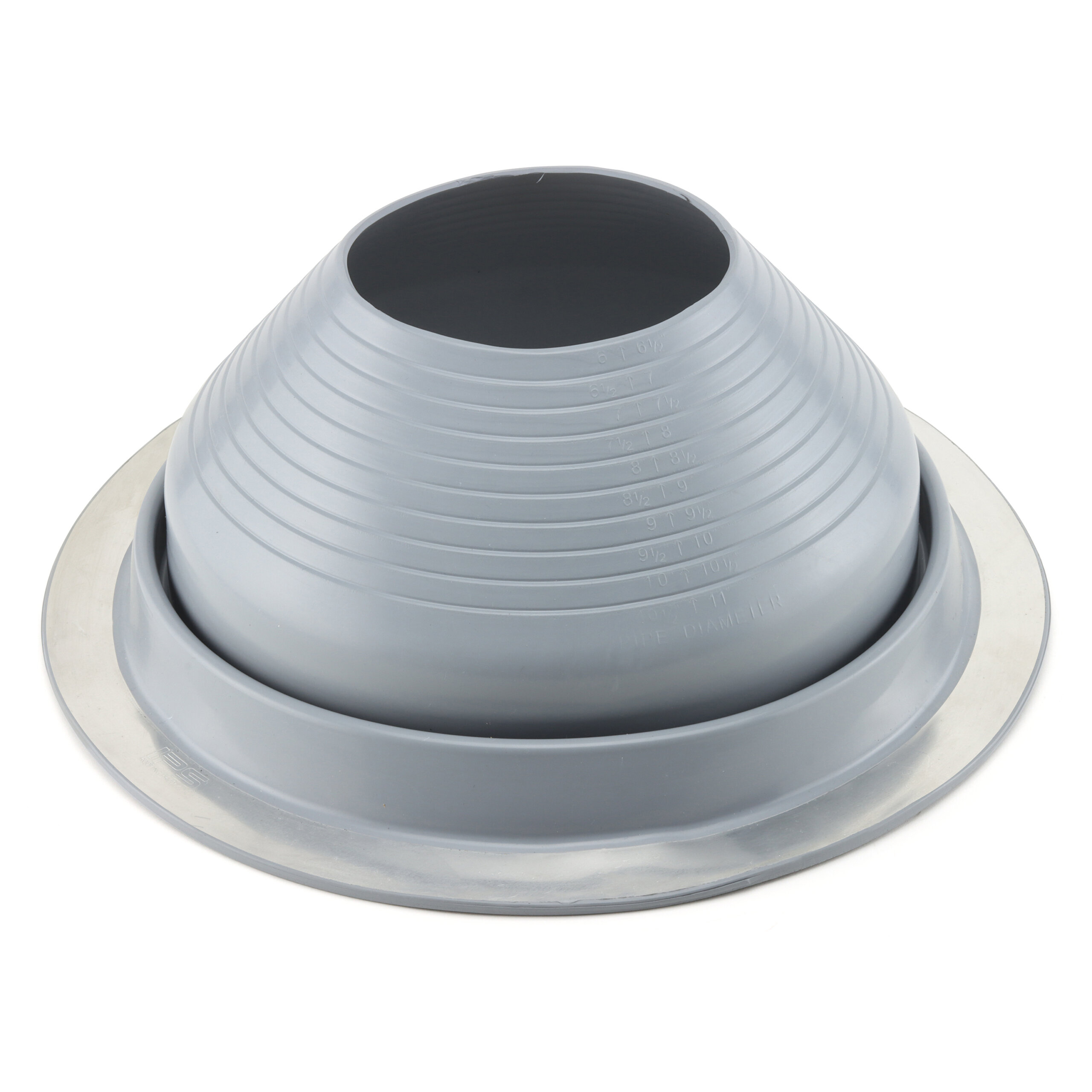

81826

#7, Gray, EPDM

6″–11″

14-1/2″

MRF7GRD

10
