Round Mini Plastic Dishwasher, Commercial Ice Maker, and Coffee Maker Outlet Box with Preloaded Mounting Nails

Product Description and Features

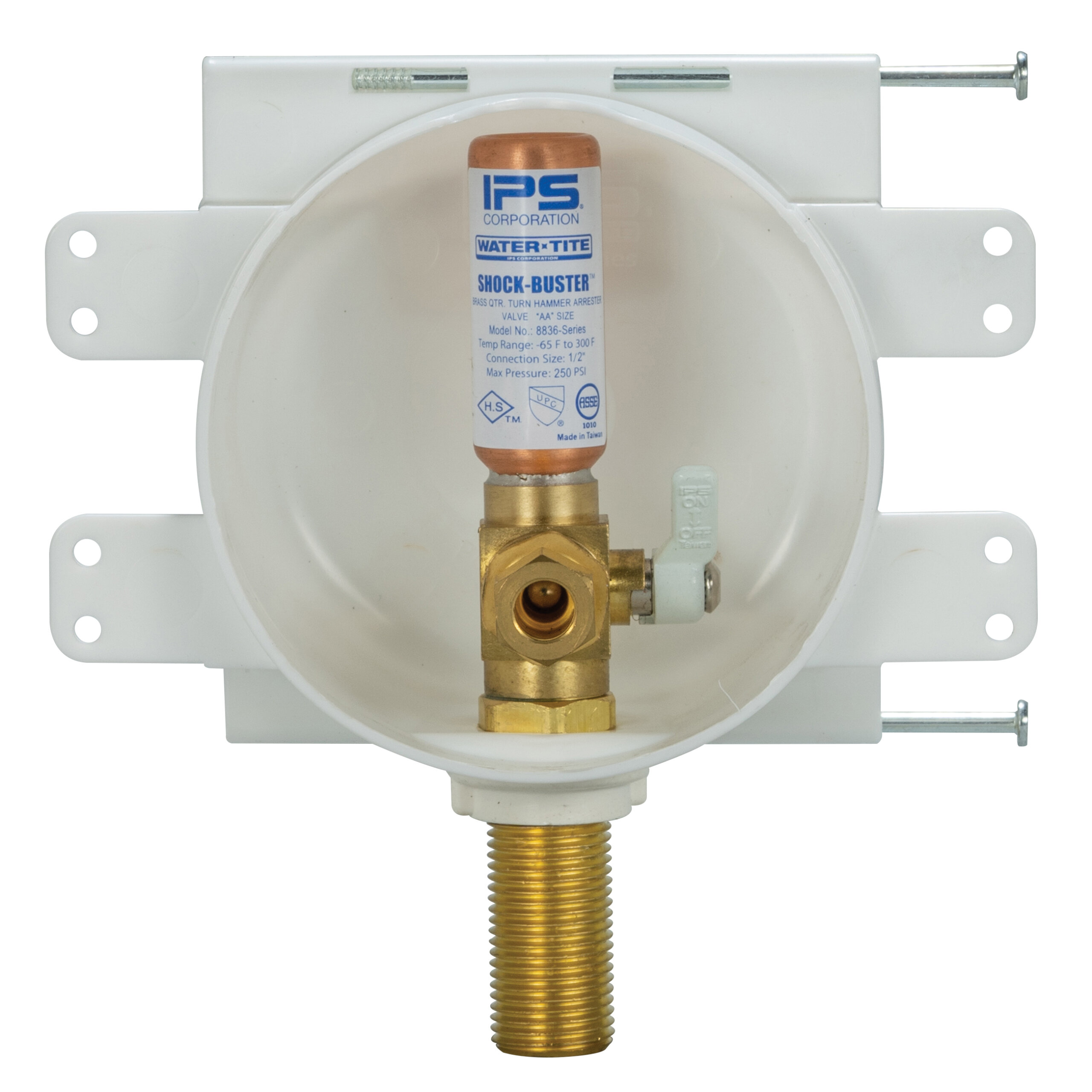

The Water-Tite Mini Round Dishwasher, Commercial Ice Maker, and Coffee Maker Outlet Box features a single-box design with a pre-installed valve and hammer arrester that saves contractors considerable installation time. Ideal for coffee kiosks, sinks, faucets, and toilet connections, this one-piece box has nails that are preloaded and reversible for a strong mount to either side of the stud bay. Molded-in side support brackets help ensure the box remains firmly affixed once installed. The included quarter-turn valve is made of durable and lead-free brass and complies with NSF 61-G requirements. The valve’s integrated hammer arrester absorbs sudden pressure changes to reduce stress on the plumbing system, providing continuous and maintenance-free protection against water hammer. This outlet box comes with a 6-1/8-inch-diameter faceplate that is able to accommodate up to 1-inch drywall. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

  • One Connection installs both hammer arrester and quarter-turn valve saving considerable installation time vs. installing a single valve and hammer arrester separately
  • 3/8" outlet – Quarter-Turn Valve preinstalled
  • Mini-Outlet Box with Preloaded Nails
  • Preloaded reversible nails provide strong rigid mount
  • No support brackets needed
  • Round face plate design
  • Face Plate accommodates up to 1" sheetrock
  • Copper, CPVC and Pex valve options
  • Available in standard and contractor packs
  • Can be used at sink/faucet and toilet connections too
  • Valves comply with the requirements of NSF 61-G and the "Reduction of Lead in Drinking Water Act" (Federal Public Law 111-380)
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs with Arrester Valves

87934

Brass Qtr-turn Arrester Valve, 3/8″ Outlet, Installed, 1/2″ Sweat Conx.

AB9300HA

10

87935

Brass Qtr-turn Arrester Valve, 3/8″ Outlet, Installed, 1/2″ CPVC Conx.

AB9301HA

10

87937

Brass Qtr-turn Arrester Valve, 3/8″ Outlet, Installed, 1/2″ F1807 Conx.

AB9302HA

10

87960

3/8″ Outlet, Qtr-turn, 1/2″ Sweat Conx.

AB9300

10

87961

3/8″ Outlet, Qtr-turn, 1/2″ CPVC Conx.

AB9301

10

87962

3/8″ Outlet, Qtr-turn, 1/2″ F1807 Conx.

AB9302

10

Contractor Packs with Arrester Valves

87938

Brass Qtr-turn Arrester Valve, 3/8″ Outlet, Uninstalled, 1/2″ F1807 Conx.

AB9302HACP

20

Don’t see the box you need? Call Customer Service at 800-888-8312.
