MultiBox™ Fire-Rated Angle Stop Box

Product Description and Features

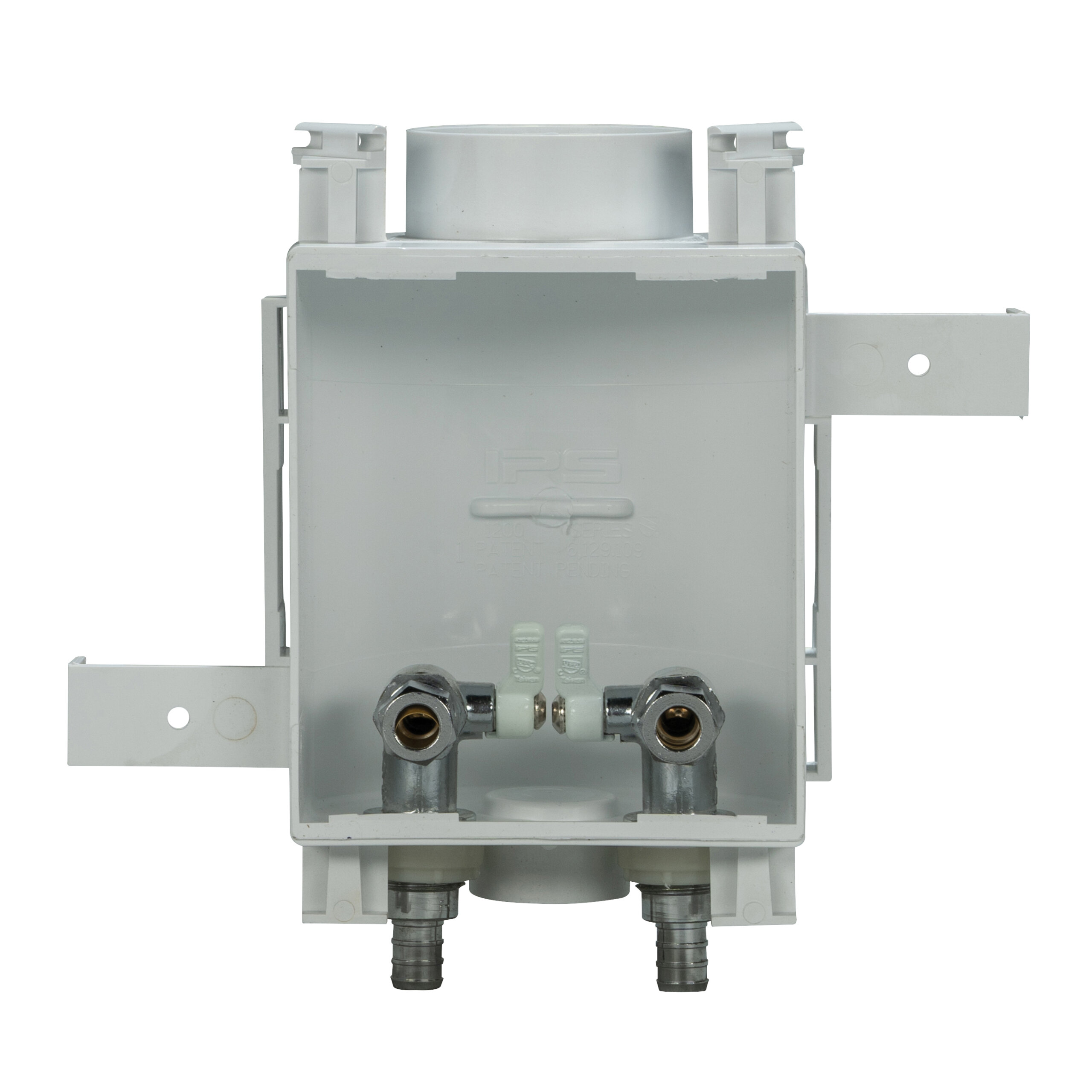

The Water-Tite MultiBox Fire-Rated Angle Stop Outlet Box is smartly designed for easy installation and intuitive operation in laundry rooms, bathrooms, and other areas where angle-stop valves are required. This outlet box is ETL Certified and is fire rated for both one- and two-hour-rated walls. It has an intumescent pad attached to the back of the box that swells in the event of fire, acting as an insulator to prevent excessive heat from passing through the structure. The pre-installed lead-free quarter-turn brass valves have an anti-rotational design and comply with NSF 61-G requirements. This one-piece angle stop outlet box features integrated mounting flanges and can be installed more quickly than separate drain and valve boxes. It comes with a faceplate that measures 6-1/2 inches wide by 6-7/8 inches high, can accommodate up to two sheets of 5/8-inch drywall, and is interchangeable with all MultiBox outlet boxes. The box has top and bottom stabilizer-bar slots and nail slots for optional extra support.

  • Fire-rated angle stop outlet box with 2 pre-installed valves; ETL Certified
  • Durable forged-brass quarter-turn valves with anti-rotational design; lead free and compliant with NSF 61-G requirements
  • Snap-on faceplate fits all MultiBox outlet boxes and includes built-in cable tie bosses to secure the drain hose; measures 6-1/2 inches wide by 6-7/8 inches high
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

83092

Two 3/8″ Outlet Valves, 1/2″ Sweat

FRAS1200

10

83093

Two 3/8″ Outlet Valves, 1/2″ CPVC

FRAS1201

10

83094

Two 3/8″ Outlet Valves, 1/2″ F1807

FRAS1202

10

83095

Two 3/8″ Outlet Valves, 1/2″ F1960

FRAS1211

10
