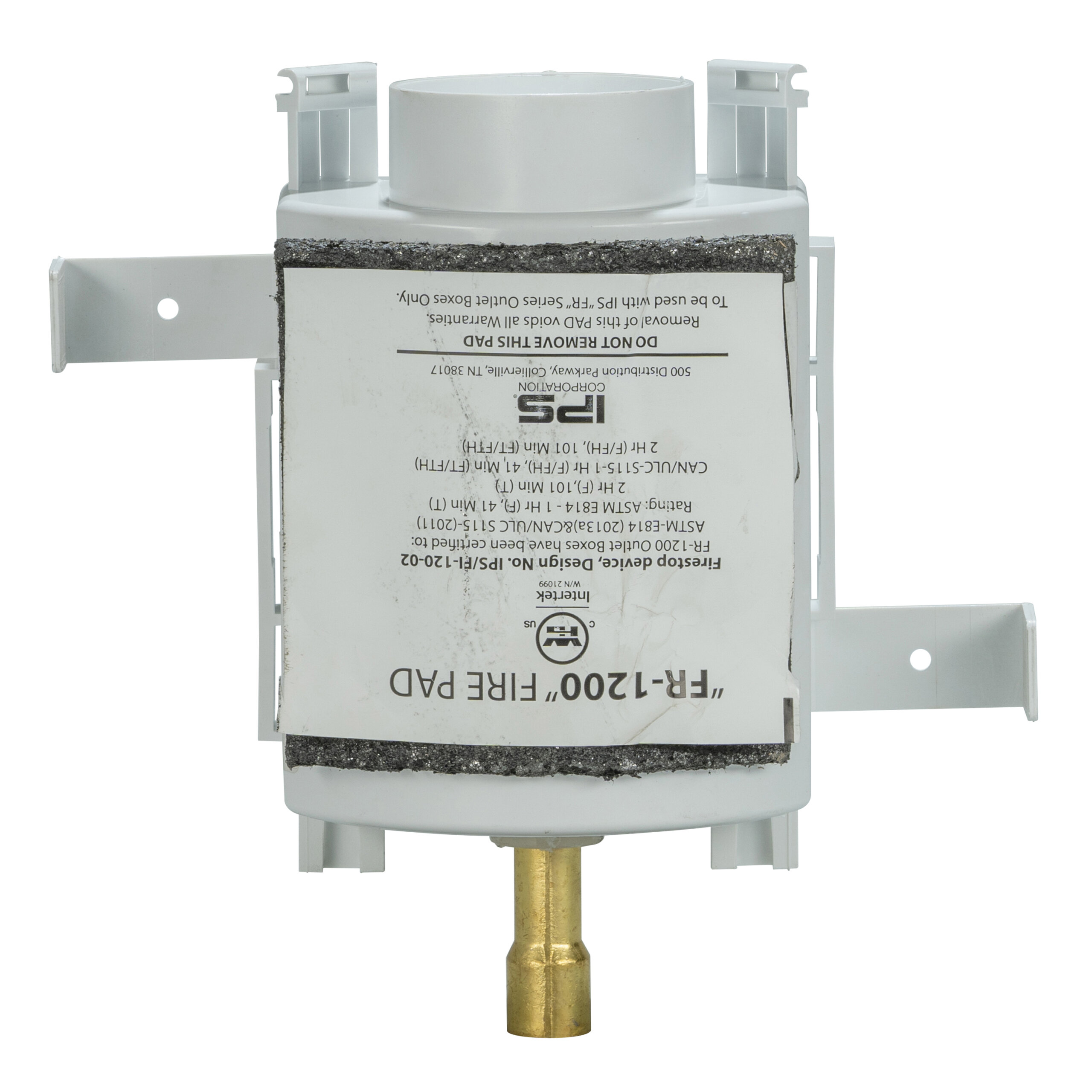

MultiBox™ Fire-Rated Ice Maker Outlet Box with Hammer Arresters

Product Description and Features

Configured for simple and secure installation, the Water-Tite MultiBox Fire-Rated Ice Maker Outlet Box is a reliable choice for contractors and homeowners. This outlet box is ETL Certified and fire rated for both one- and two-hour-rated walls. It has an intumescent pad attached to the back of the box that swells in the event of fire, acting as an insulator to prevent excessive heat from passing through the structure. This outlet box has a lead-free quarter-turn brass valve (installed) that features an anti-rotational design, making it easy to access and use. The valve’s integrated hammer arrester absorbs sudden pressure changes to reduce stress on the plumbing system, providing continuous and maintenance-free protection against water hammer. This icemaker outlet box has integrated mounting flanges for easy installation, as well as top and bottom stabilizer-bar slots and nail slots for optional extra support. The included faceplate measures 6-1/2 inches wide by 6-7/8 inches high, can accommodate up to two sheets of 5/8-inch drywall, and is interchangeable with all MultiBox outlet boxes. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

• Fire-rated icemaker outlet box with pre-installed valve
• Integrated mounting flanges for easy installation; top and bottom stabilizer-bar slots and nail slots for optional extra support
• Snap-on faceplate fits all MultiBox outlet boxes and includes built-in cable tie bosses to secure the drain hose; measures 6-1/2 inches wide by 6-7/8 inches high
