Mini Round Gas Outlet Box

Product Description and Features

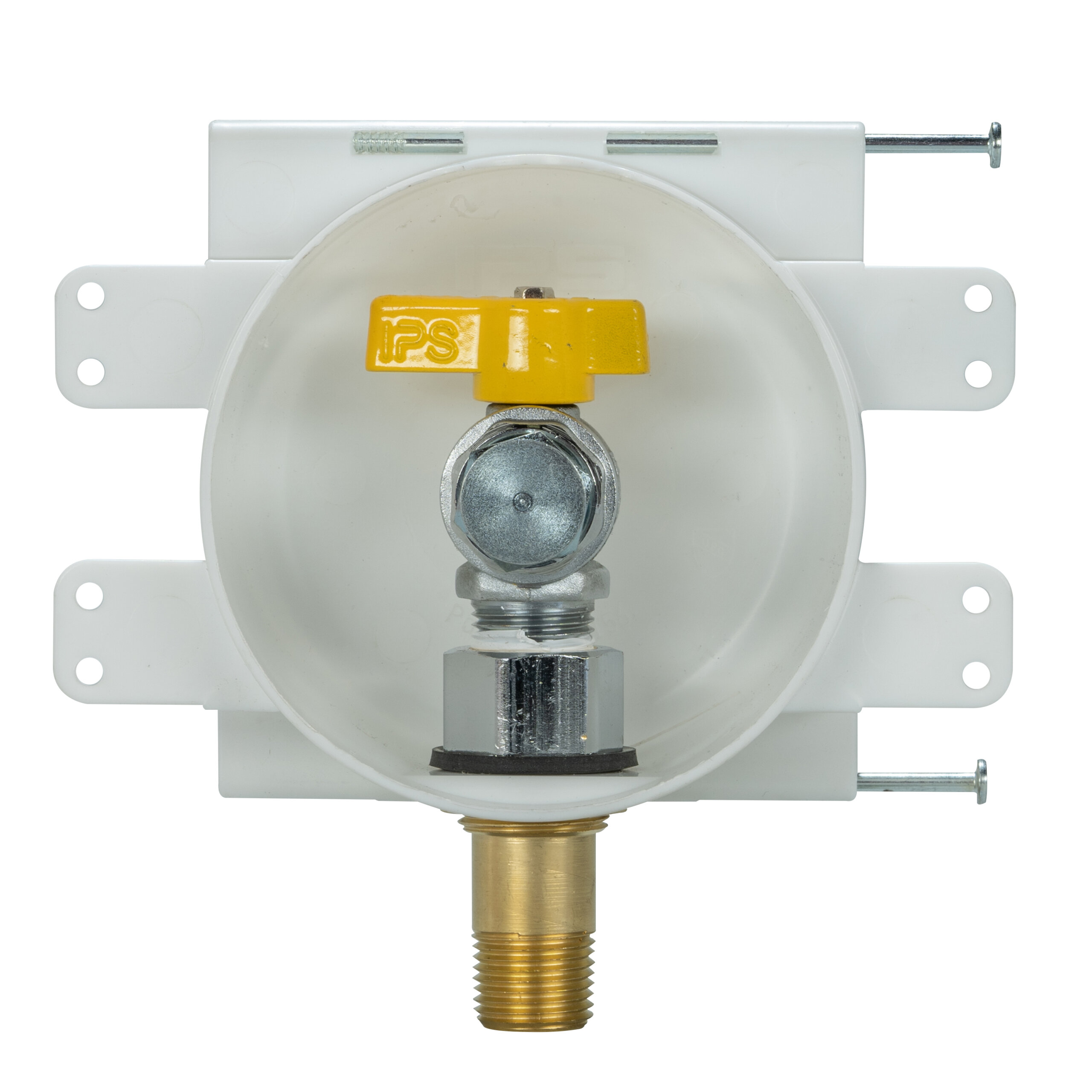

The Water-Tite Mini Round Gas Outlet Box provides a recessed valve installation that allows appliances to sit closer to the wall. This one-piece box comes with molded-in side support brackets for exceptional stability and features pre-loaded, reversible nails, allowing the box to be mounted to either the left or right side of the stud bay. This gas outlet box is available with either a 1/2-inch-iron-pipe or 1/2-inch-CSST-tubing valve, both of which are CSA listed. The included round faceplate (6-1/8-inch diameter) accommodates up to 1-inch sheet rock and can also be used with mini icemaker boxes. A test plug is provided for testing the valve assembly after installation. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

  • Provides a recessed valve installation allowing appliances to be closer to wall
  • Preloaded nails provide a strong rigid mount
  • Nails are reversible and box can be mounted to the left or right hand stud bay
  • 1/2" iron pipe
  • Valves are CSA listed
  • Test plug provided for testing of valve assembly
  • Round face plate fits mini ice maker box & accommodates up to 1" sheet rock
  • Molded side support brackets supports box to stud bay
  • Available in standard or contractor packs
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs

88106

Mini Gas Outlet Box, with nails & 1/2″ valve for iron pipe

W5700

10

Contractor Pack

88107

Mini Gas Outlet Box, with nails & 1/2″ valve for iron pipe

W5700CP

10

Pre-loaded nail

Don’t see the box you need? Call Customer Service at 800-888-8312.
