88480
Brass Qtr-turn Valve, Installed, 1/2" Sweat Conx.
88480
Brass Qtr-turn Valve, Installed, 1/2" Sweat Conx.
88486
Brass Qtr-turn Valve, Installed, 1/2" F1960 Conx.
88484
Brass Qtr-turn Valve, Installed, 1/2" F1807 Conx.
88482
Brass Qtr-turn Valve, Installed, 1/2" CPVC Conx.
88068
Round IM Supply Box only, less valves and SS Hose
88484
Brass Qtr-turn Valve, Installed, 1/2" F1807 Conx. (360 view)

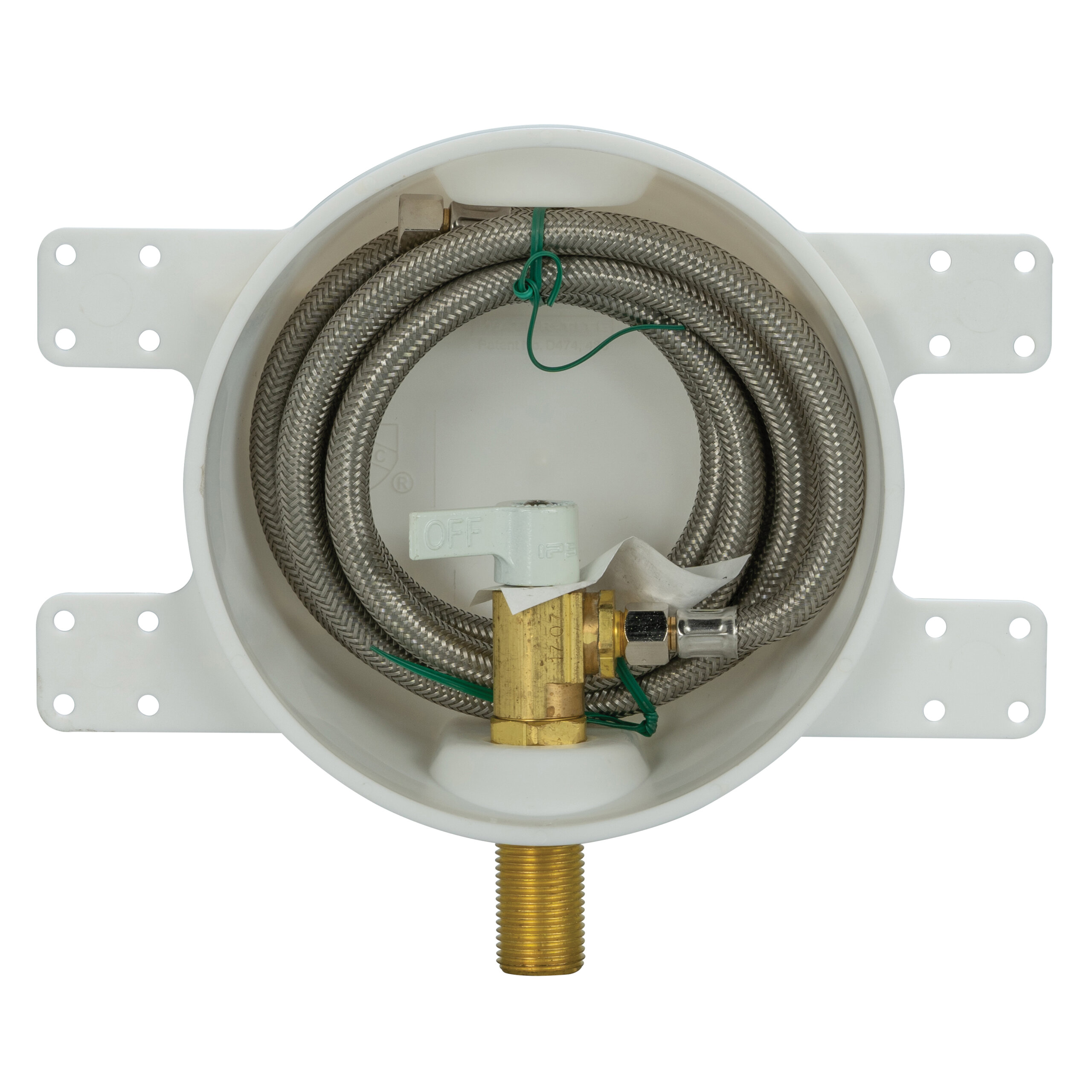

Round Ice Maker Outlet Box with Hose
Product Description and Features
Featuring a round faceplate, the Water-Tite Round Ice Maker Outlet Box is specially designed to to never look uneven. This outlet box includes one pre-installed lead-free quarter-turn brass valve, which complies with NSF 61-G requirements. Additional top knockouts are molded into the box to allow for mounting shut-off valves or gas valves. This outlet box is constructed with flat-sided walls to ensure a rigid mount against the stud bay and has four integrated flanges to facilitate easy and secure installation. It comes with an 8-inch-diameter faceplate as well as a protective cover that shields the valve from paint and debris during construction. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate. Some models come with a 72-inch lead-free stainless-steel braided hose (pre-installed).
- Stainless Steel Braided Hose Comes Attached to Valve
- Hose is Replaceable
- Round Face Plate Provides Easier Installation After Wallboard is Installed
- Flatsided Walls Insure Rigid Mount Against Stud Bay
- Protective Cover Protects Valves and Hose from Paint and Debris During Construction
- Additional Top Knockouts Molded in Box to Allow for Mounting Shut-Off Valves or Gas Valves
- Valves comply with the requirements of NSF 61-G and the "Reduction of Lead in Drinking Water Act" (Federal Public Law 111-380)
- California Residents: WARNING – www.P65warnings.ca.gov
|
PRODUCT |
DESCRIPTION |
MODEL |
UNITS/CASE |
|
Standard Packs |
|||
|
88480 |
Brass Qtr-turn Valve, Installed, 1/2″ Sweat Conx. |
AB9800 |
10 |
|
88482 |
Brass Qtr-turn Valve, Installed, 1/2″ CPVC Conx. |
AB9801 |
10 |
|
88484 |
Brass Qtr-turn Valve, Installed, 1/2″ F1807 Conx. |
AB9802 |
10 |
|
88486 |
Brass Qtr-turn Valve, Installed, 1/2″ F1960 Conx. |
AB9811 |
10 |
|
88068 |
Round IM Supply Box only, less valves and SS Hose |
W9800LV |
10 |
|
Contractor Packs |
|||
|
88481 |
Brass Qtr-turn Valve, Installed, 1/2″ Sweat Conx. |
AB9800CP |
20 |
|
88483 |
Brass Qtr-turn Valve, Installed, 1/2″ CPVC Conx. |
AB9801CP |
20 |
|
88485 |
Brass Qtr-turn Valve, Installed, 1/2″ F1807 Conx. |
AB9802CP |
20 |
|
88487 |
Brass Qtr-turn Valve, Installed, 1/2″ F1960 Conx. |
AB9811CP |
20 |
Don’t see the product you need? Call Customer Service at 800-888-8312.
