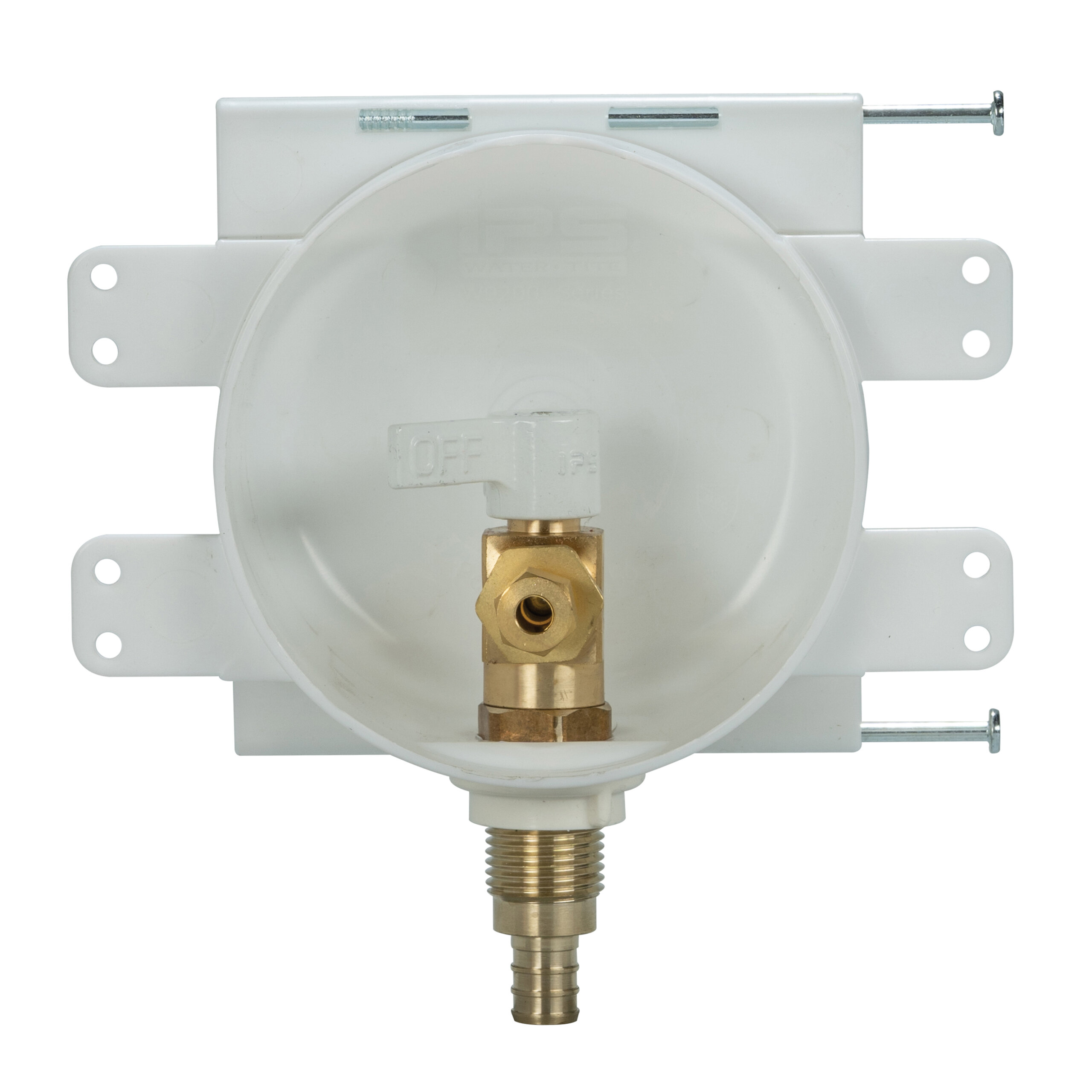

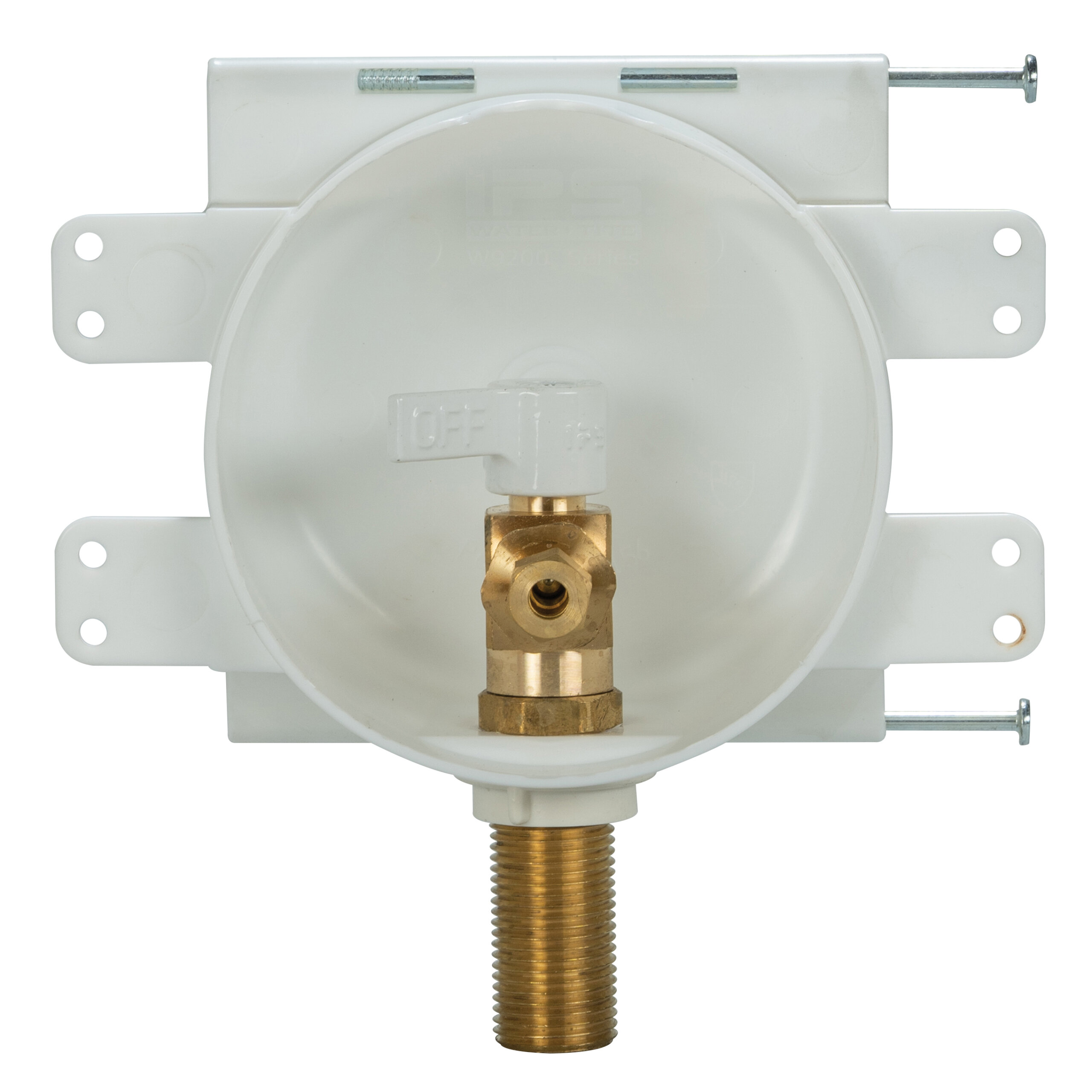

Round Mini Lead-free Ice Maker Outlet Box and Preloaded Mounting Nails

Product Description and Features

Designed for simple yet versatile installation, the Water-Tite Econo Box Center-Drain Washing Machine Outlet Box is thoughtfully constructed to reduce labor for contractors and homeowners. This outlet box comes with pre-installed quarter-turn brass valves and features a design that can be inverted for top-mount valves with a center drain. Thanks to a single-piece construction that includes a raised drip guard, any potential hose or valve leaks will be contained and sent directly down the drain instead of onto the laundry room wall and floor. The EZ Out test cap is raised for quick removal, and the knockouts are oversized, so they won’t fall down the drain.Featuring a one-piece design, this washing machine outlet box can be installed more quickly than separate drain and valve boxes. It comes with a snap-on faceplate that measures 10-3/16 inches wide by 8-13/16 inches high and is interchangeable with DU-All outlet-box faceplates. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

• Pre-loaded Nails provide strong rigid mount
• No support bracket needed
• Nails are reversible and box can be mounted to left or right hand stud bay
• Round Trim Ring
• Trim Ring accommodates up to 1" Sheet Rock
• Valve options: Copper, CPVC, 1/2" & 3/8" Pex, Wirsbo™, Kitec™, domestic copper
• Molded side support brackets supports box to stud bay
• Available in standard and contractor packs
• Brass 1/4 turn valve installed
• Valves comply with the requirements of NSF 61-G and the "Reduction of Lead in Drinking Water Act" (Federal Public Law 111-380)
• California Residents: WARNING – www.P65warnings.ca.gov

• Mini-Round Ice Maker Box Specification Sheet
