MultiBox™ Angle Stop Box

Product Description and Features

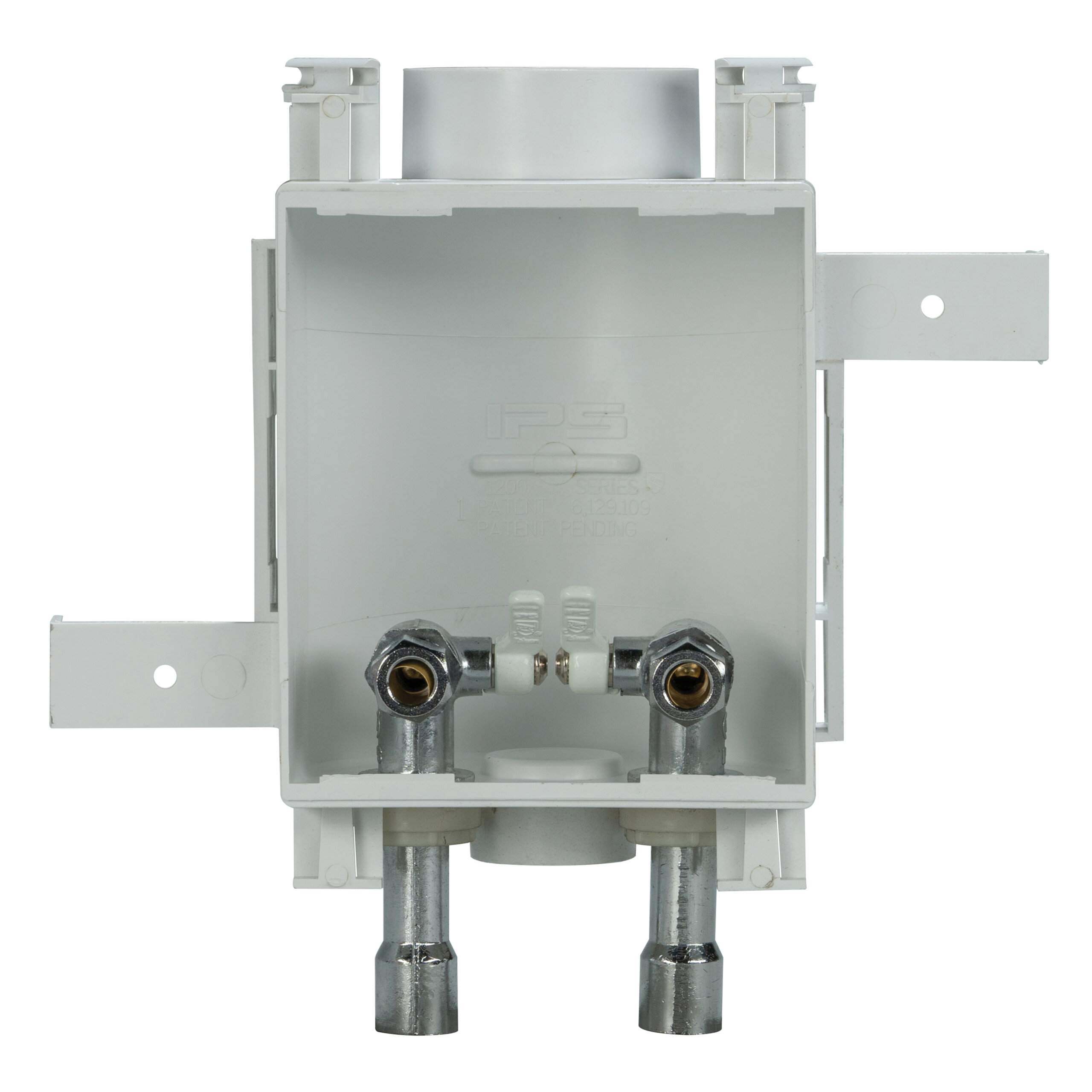

The Water-Tite MultiBox Angle Stop Outlet Box is smartly designed for easy installation and intuitive operation in laundry rooms, bathrooms, and other areas where angle-stop valves are required. This ETL Certified outlet box has pre-installed lead-free quarter-turn brass valves with an anti-rotational design and complies with NSF 61-G requirements. This one-piece angle stop outlet box features integrated mounting flanges and can be installed more quickly than separate drain and valve boxes. It comes with a faceplate that measures 6-1/2 inches wide by 6-7/8 inches high, can accommodate up to two sheets of 5/8-inch drywall, and is interchangeable with all MultiBox outlet boxes. The box has top and bottom stabilizer-bar slots and nail slots for optional extra support.

• Mounting flanges - no clips to lose or hassle with
• Top and bottom stabilizer bar slots
• Nail slots
• Nine valve knock-outs
• Two drain knock-outs: 2" in standard washing machine drain, optional 1" to pipe valve box to DWV system
• Integrated drain knock outs will not fall down the drain after DWV test
• Anti-rotational valve design
• Faceplates fit any box configuration, including fire-rated
• All faceplates fit up to two sheets of 5/8" drywall
• Standard faceplate includes cable tie bosses to secure drain hose
• California Residents: WARNING – www.P65warnings.ca.gov
