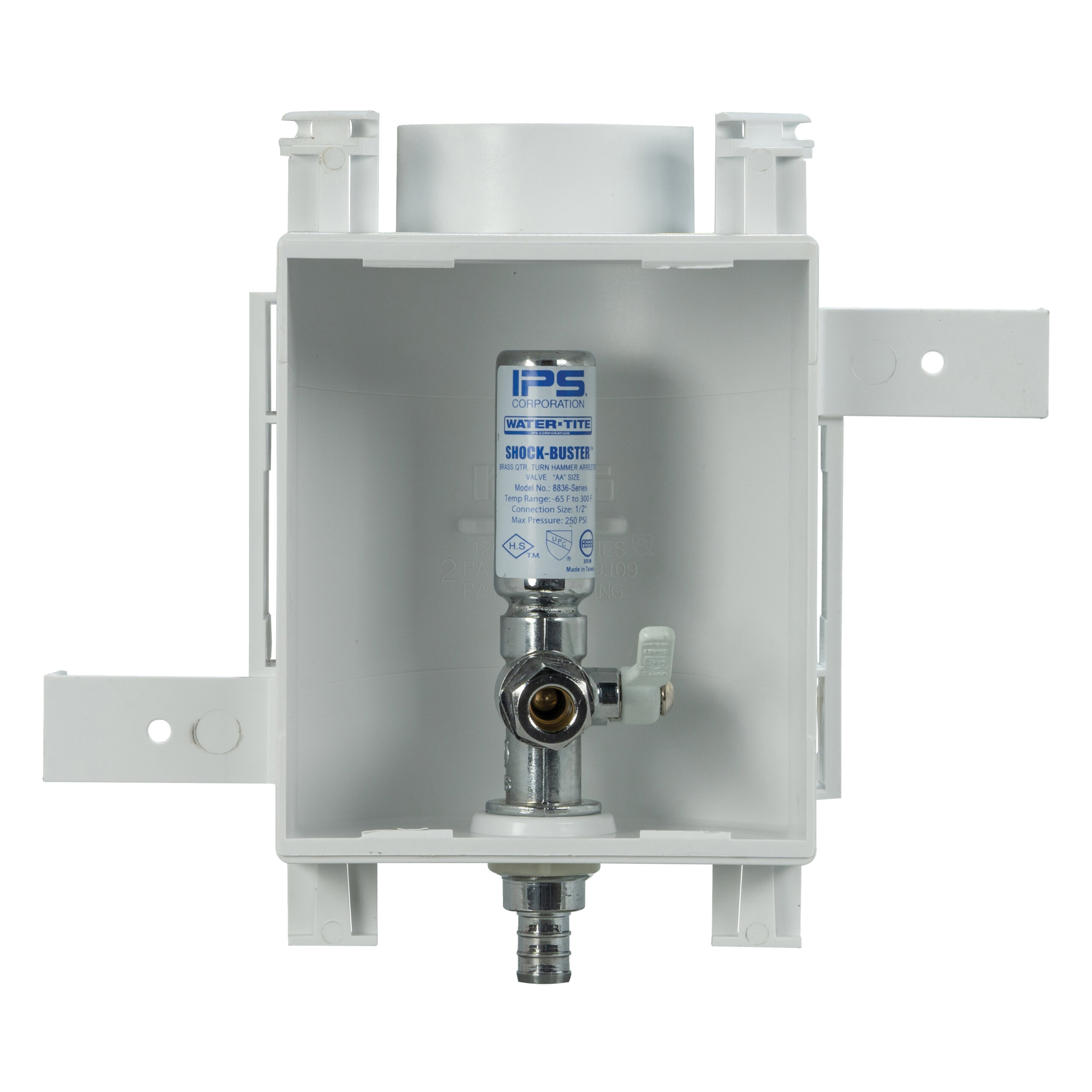

MultiBox™ Dishwasher/Commercial Ice Maker Outlet Box

Product Description and Features

The Water-Tite MultiBox Dishwasher and Commercial Ice Maker Outlet Box gives contractors a versatile option for installing two popular appliances in homes or businesses. This outlet box has a pre-installed lead-free quarter-turn brass valve that features an anti-rotational design, making it easy to access and use. The valve’s integrated hammer arrester absorbs sudden pressure changes to reduce stress on the plumbing system, providing continuous and maintenance-free protection against water hammer. The box can also be inverted to utilize an optional 2-inch drain. This outlet box has integrated mounting flanges for easy installation, as well as top and bottom stabilizer-bar slots and nail slots for optional extra support. It comes with a faceplate that measures 6-1/2 inches wide by 6-7/8 inches high, can accommodate up to two sheets of 5/8-inch drywall, and is interchangeable with all MultiBox outlet boxes.

• Mounting flanges - no clips to lose or hassle with
• Top and bottom stabilizer bar slots
• Nail slots
• Nine valve knock-outs
• Two drain knock-outs: 2" in standard washing machine drain, optional 1" to pipe valve box to DWV system
• Integrated drain knock outs will not fall down the drain after DWV test
• Anti-rotational valve design
• Faceplates fit any box configuration, including fire-rated
• All faceplates fit up to two sheets of 5/8" drywall
• Standard faceplate includes cable tie bosses to secure drain hose
• California Residents: WARNING – www.P65warnings.ca.gov
