MultiBox™ Ice Maker Outlet Box

Product Description and Features

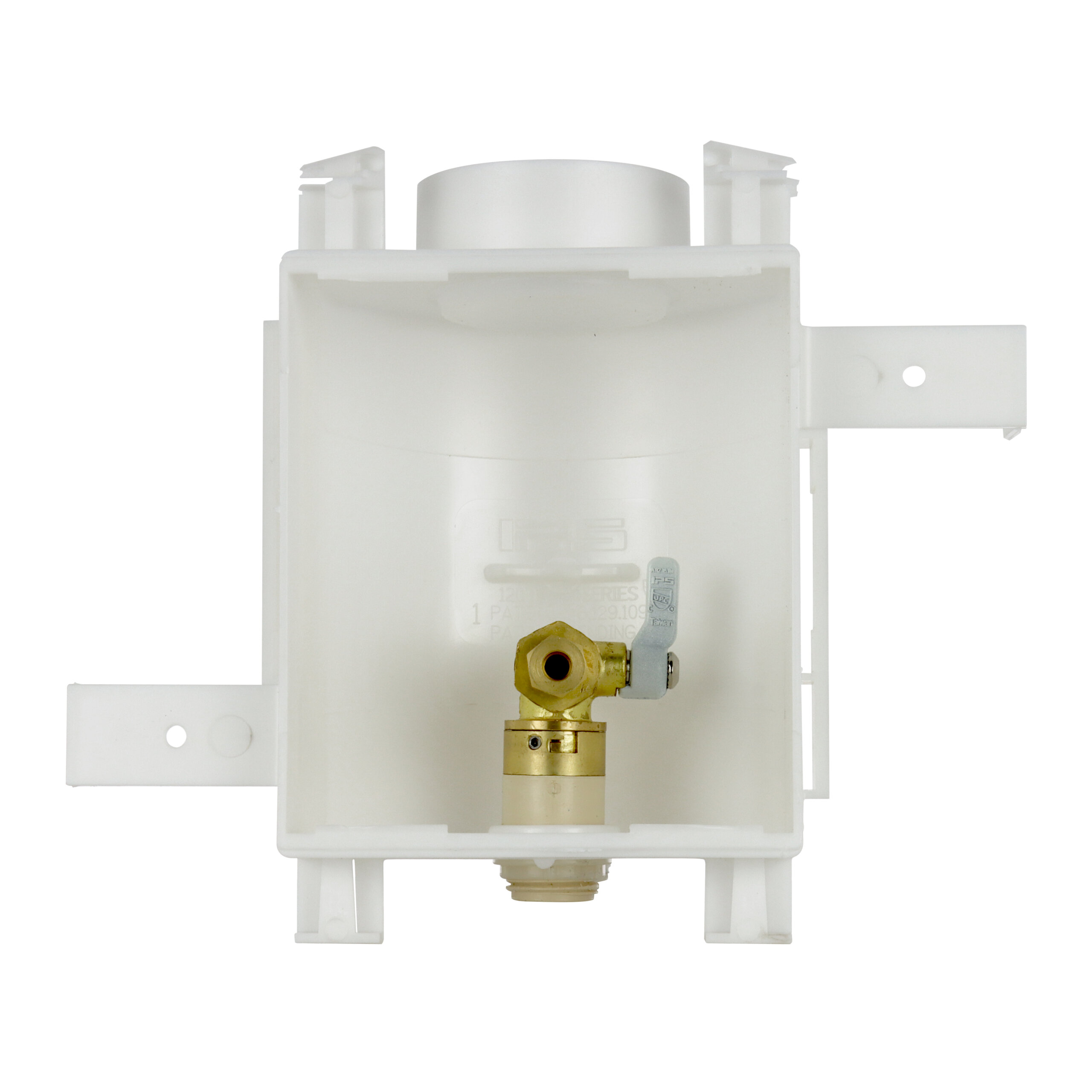

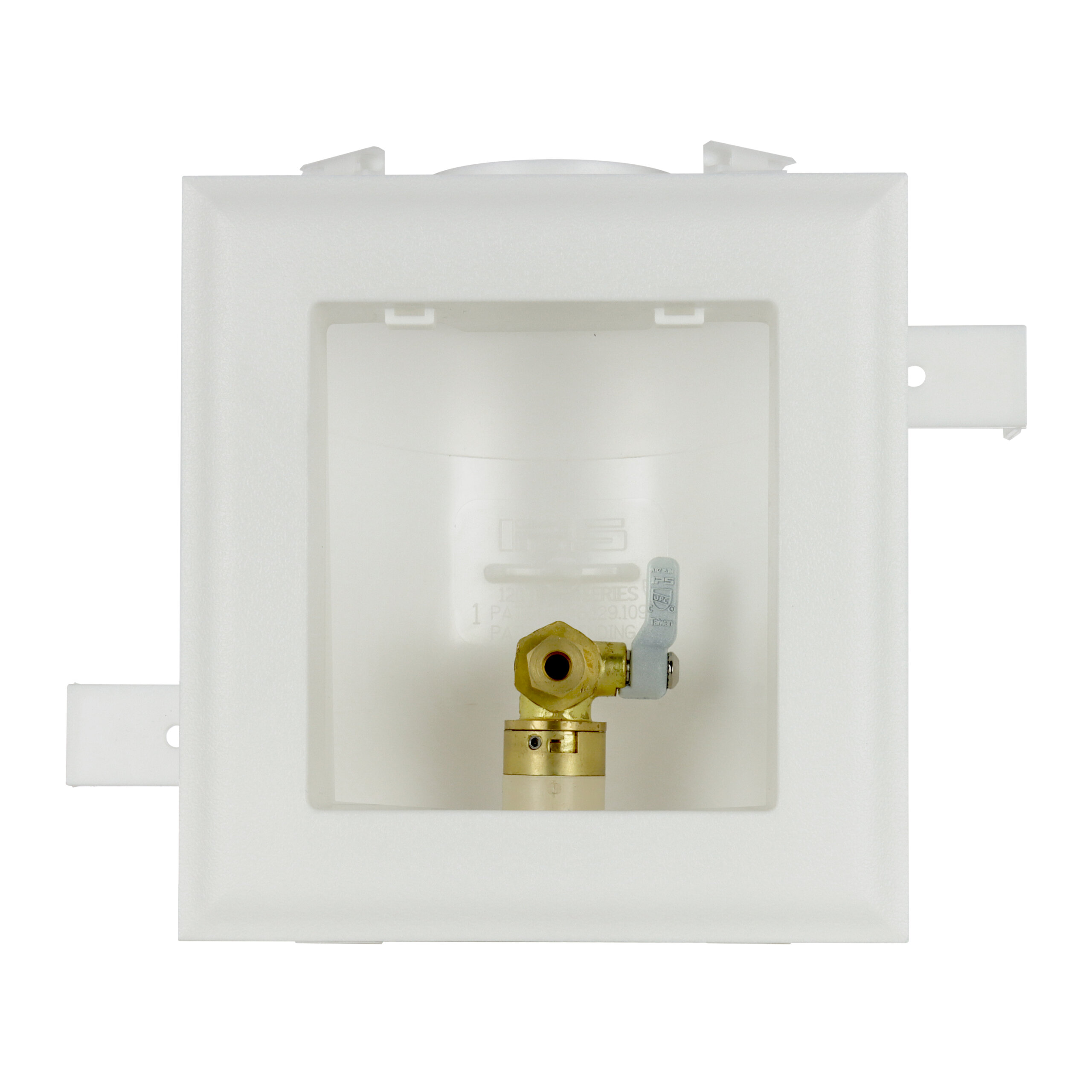

Configured for simple and secure installation, the Water-Tite MultiBox Ice Maker Outlet Box is a reliable choice for contractors and homeowners. This outlet box has a lead-free quarter-turn brass valve (installed) that features an anti-rotational design, making it easy to access and use. This icemaker outlet box has integrated mounting flanges for easy installation, as well as top and bottom stabilizer-bar slots and nail slots for optional extra support. The included faceplate measures 6-1/2 inches wide by 6-7/8 inches high, can accommodate up to two sheets of 5/8-inch drywall, and is interchangeable with all MultiBox outlet boxes. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

  • Mounting flanges - no clips to lose or hassle with
  • Top and bottom stabilizer bar slots
  • Optional nail slots
  • 2" standard drain, for optional use
  • Integrated drain knock outs will not fall down the drain after DWV test
  • Anti-rotational valve design
  • Forged brass qtr-turn valves
  • MultiBox faceplates fit any MultiBox configuration, including fire-rated
  • All faceplates fit up to two sheets of 5/8" drywall
  • Valves are IAPMO listed to ASME A112.18.1 / CSA B125.1 and are NSF 61/NSF 372 compliant to lead leaching

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs

82922

1/4″ Outlet, 1/2″ Sweat

AB1200

10

82923

1/4″ Outlet, 1/2″ CPVC

AB1201

10

82924

1/4″ Outlet, 1/2″ F1807

AB1202

10

82925

1/4″ Outlet, 1/2″ F1960

AB1211

10

83378

1/4″ Outlet, 1/2″ REHAU EVERLOC+

AB1205

10

Contractor Packs

82926

1/4″ Outlet, 1/2″ Sweat

AB1200CP

10

82927

1/4″ Outlet, 1/2″ CPVC

AB1201CP

10

82928

1/4″ Outlet, 1/2″ F1807

AB1202CP

10

82929

1/4″ Outlet, 1/2″ F1960

AB1211CP

10

83379

1/4″ Outlet, 1/2″ REHAU EVERLOC+

AB1205CP

10

Don’t see the box you need? Call Customer Service at 800-888-8312.
