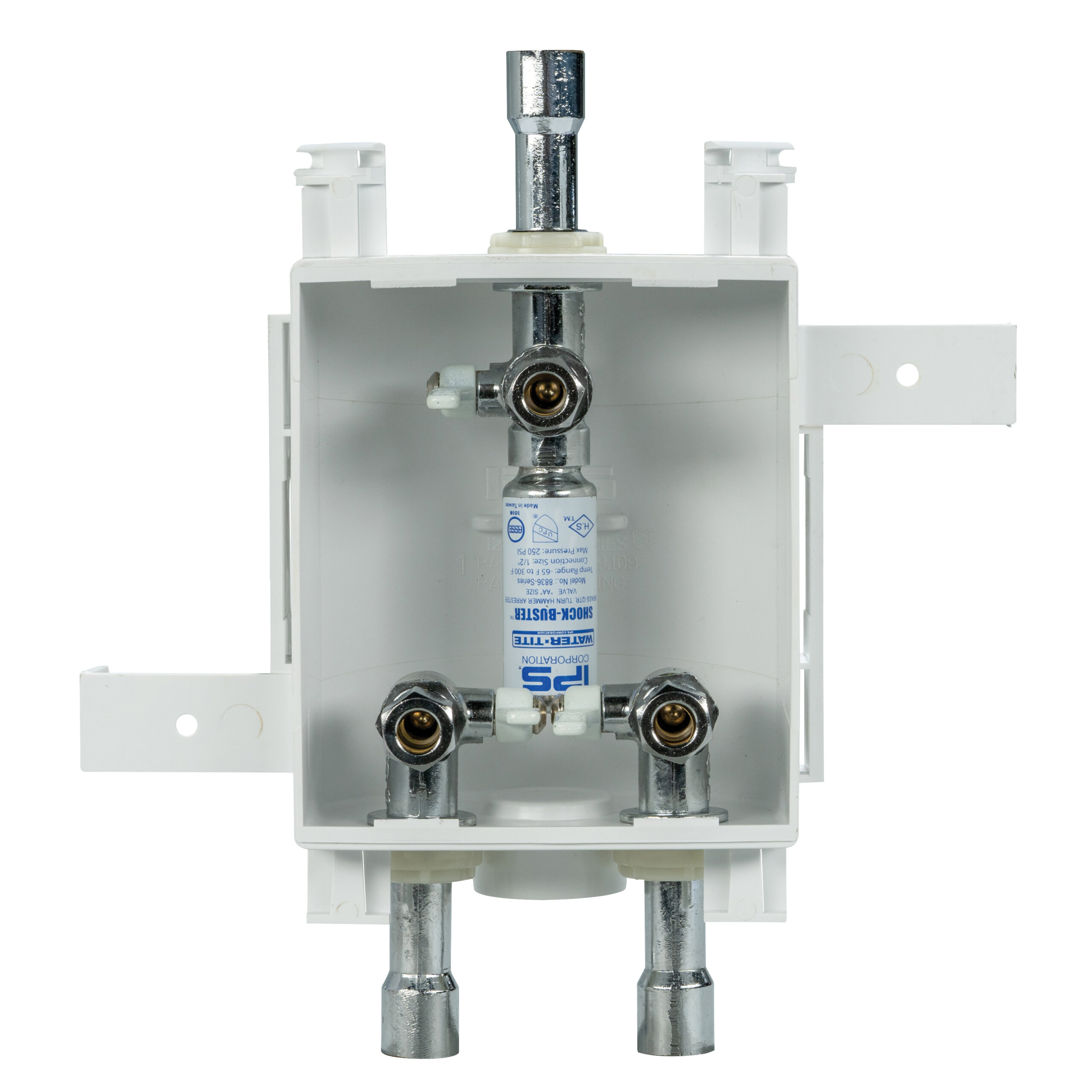

MultiBox™ Kitchen Outlet Boxes with Hammer Arresters

Product Description and Features

The Water-Tite MultiBox Kitchen Outlet Box gives contractors a versatile option for connecting a variety of popular appliances in homes or businesses. This outlet box includes three pre-installed quarter-turn brass valves (including one with a hammer arrester) that are lead free and comply with NSF 61-G requirements. The box has integrated mounting flanges for easy installation, as well as top and bottom stabilizer-bar slots and nail slots for optional extra support. The included extra-large faceplate (6-1/2 inches wide by 6-7/8 inches high) provides breaklines for a custom fit to cabinetry and an extra 1 inch of coverage for potential rough cuts.

  • Mounting flanges - no clips to lose or hassle with
  • Top and bottom stabilizer bar slots
  • Nail slots
  • Nine valve knock-outs
  • Two drain knock-outs: 2" in standard washing machine drain, optional 1" to pipe valve box to DWV system
  • Integrated drain knock outs will not fall down the drain after DWV test
  • Anti-rotational valve design
  • Faceplates fit any box configuration, including fire-rated
  • All faceplates fit up to two sheets of 5/8" drywall
  • Standard faceplate includes cable tie bosses to secure drain hose
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

83199

Three 3/8″ Outlet Valves, Includes One Integral HA, 1/2″ Sweat

ASDW1200HA

10

83206

Three 3/8″ Outlet Valves, Includes One Integral HA, 1/2″ CPVC

ASDW1201HA

10

83207

Three 3/8″ Outlet Valves, Includes One Integral HA, 1/2″ F1807

ASDW1202HA

10

83208

Three 3/8″ Outlet Valves, Includes One Integral HA, 1/2″ F1960

ASDW1211HA

10

83386

Three 3/8″ Outlet Valves, Includes One Integral HA, 1/2″ REHAU EVERLOC+

ASDW1205HA

10

Don’t see the box you need? Call Customer Service at 800-888-8312.
