MultiBox™ Washing Machine Outlet Box with Auxiliary Drain Box and Hammer Arresters

Product Description and Features

Designed with separate valve and drain boxes, the Water-Tite MultiBox Washing Machine Outlet Box with Auxiliary Drain Box gives homeowners expanded functionality for laundry rooms. This dual-box unit has a valve box with a DWV (drain, waste, and vent) drain to capture hose leaks and a drain box with an optional 2-inch drain. The dual-box system features integrated mounting flanges for easy installation, as well as top and bottom stabilizer-bar slots and nail slots for optional extra support. This outlet-box unit comes with two pre-installed supply valves that are durable forged brass and have an anti-rotational design, making them long-lasting and easy to access and use. The valves feature built-in hammer arresters that absorb sudden pressure changes to reduce stress on the plumbing system, providing continuous and maintenance-free protection against water hammer. The included faceplates (6-1/2 inches wide by 6-7/8 inches high) are interchangeable with all MultiBox outlet boxes and are able to accommodate up to two sheets of 5/8-inch drywall. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

  • Mounting flanges - no clips to lose or hassle with
  • Top and bottom stabilizer bar slots
  • Nail slots
  • Nine valve knock-outs
  • Two drain knock-outs: 2" in standard washing machine drain, optional 1" to pipe valve box to DWV system
  • Integrated drain knock outs will not fall down the drain after DWV test
  • Anti-rotational valve design
  • Faceplates fit any box configuration, including fire-rated
  • All faceplates fit up to two sheets of 5/8" drywall
  • Standard faceplate includes cable tie bosses to secure drain hose
  • ETL Certified
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Hammer Arrester Standard Packs

82914

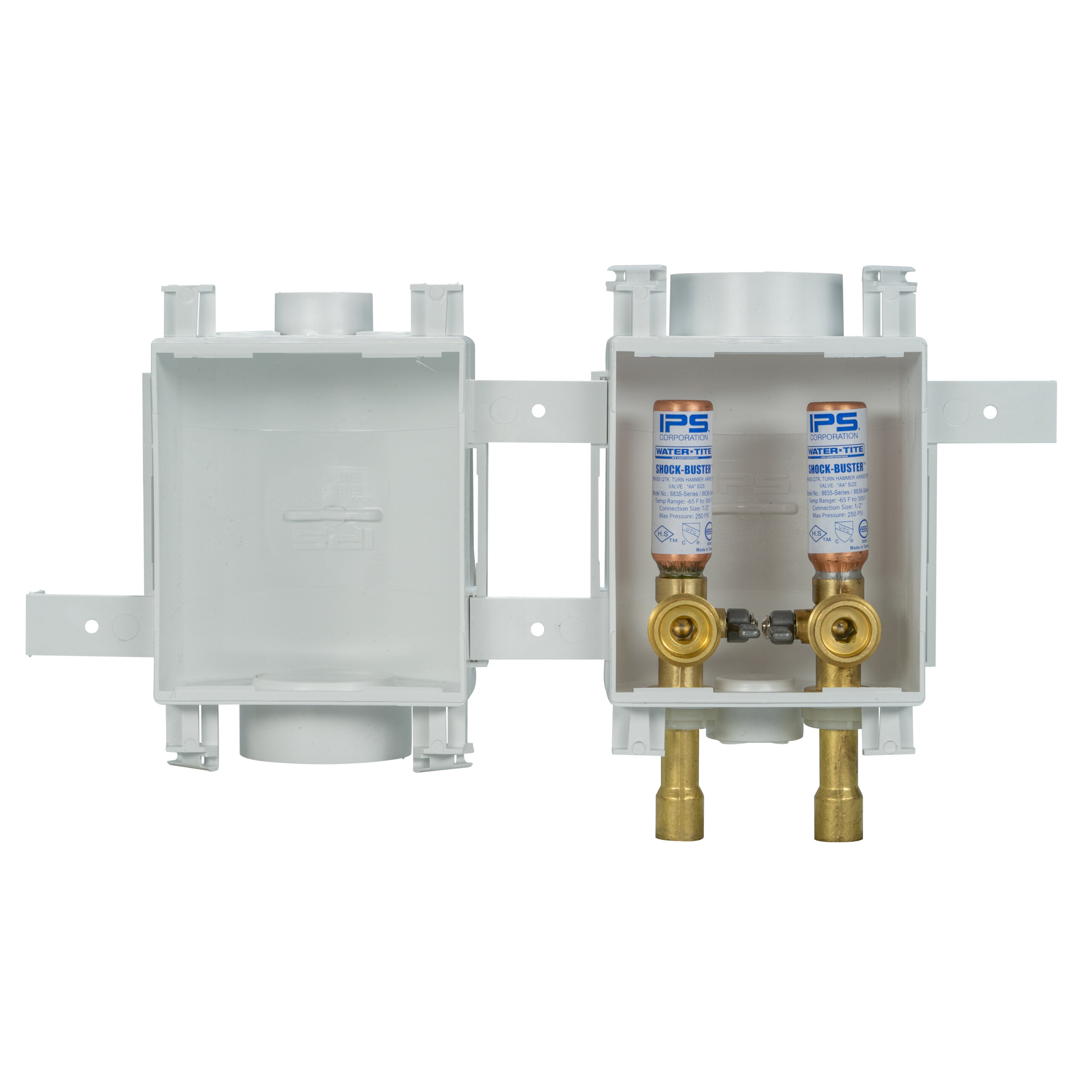

Dual Box System w/Hammer Arresters, 1/2″ Sweat

MB1200HA

10

82915

Dual Box System w/Hammer Arresters, 1/2″ CPVC

MB1201HA

10

82916

Dual Box System w/Hammer Arresters, 1/2″ F1807

MB1202HA

10

82917

Dual Box System w/Hammer Arresters, 1/2″ F1960

MB1211HA

10

83174

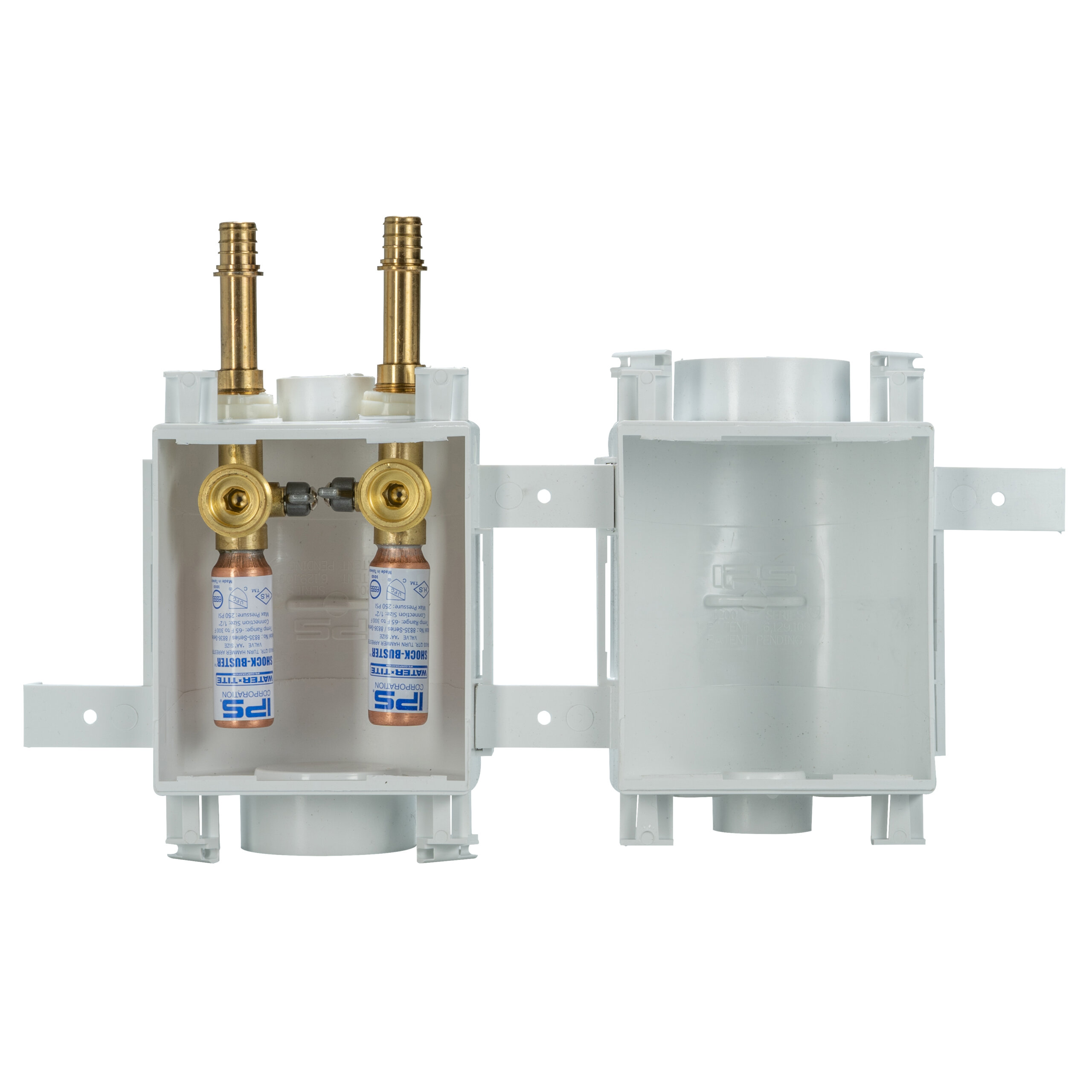

Dual Box System w/Hammer Arresters, 1/2″REHAU EVERLOC+

MB1205HA

10

Hammer Arrester Contractor Packs

82918

Dual Box System w/Hammer Arresters, 1/2″ Sweat

MB1200HACP

10

82919

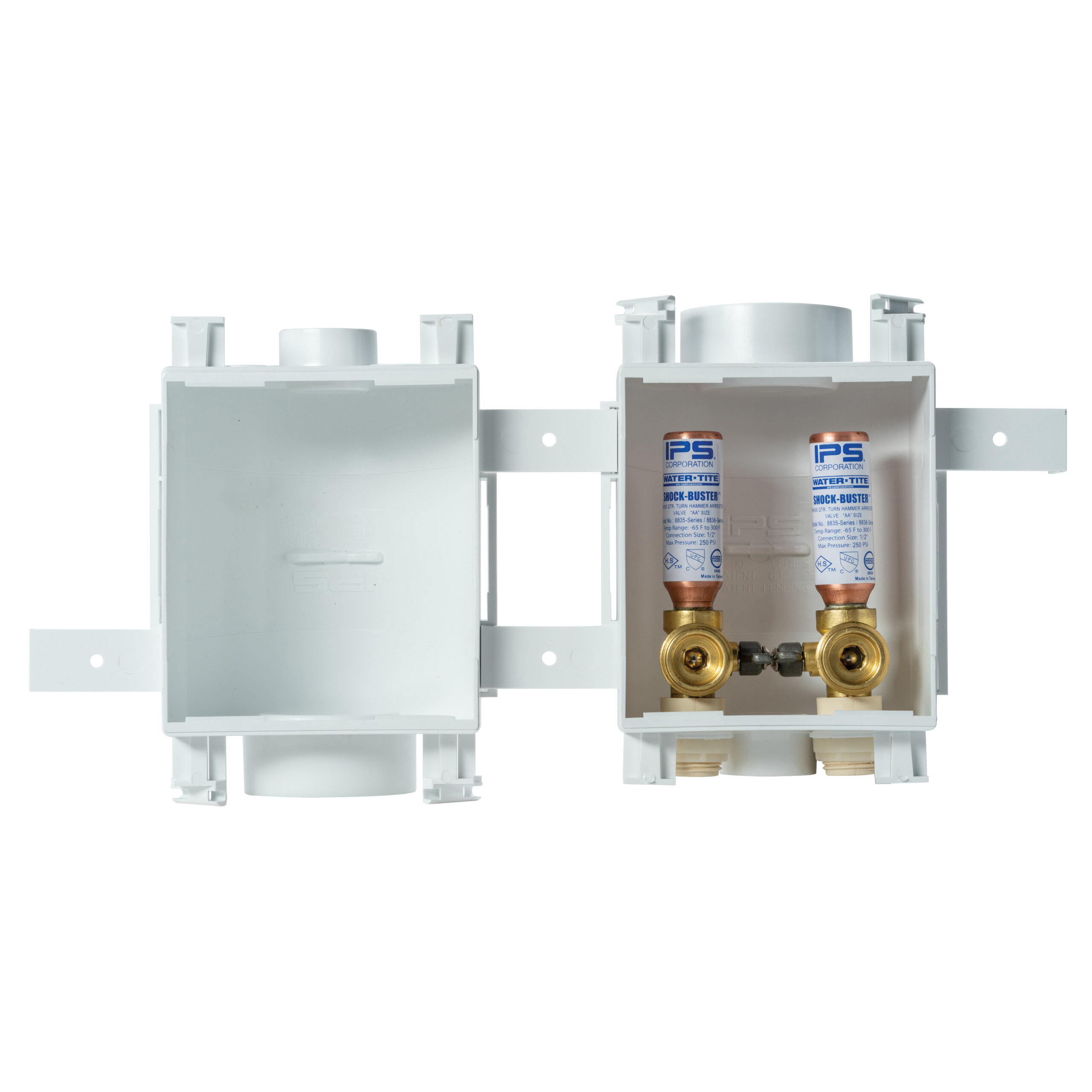

Dual Box System w/Hammer Arresters, 1/2″ CPVC

MB1201HACP

10

82920

Dual Box System w/Hammer Arresters, 1/2″ F1807

MB1202HACP

10

82921

Dual Box System w/Hammer Arresters, 1/2″ F1960

MB1211HACP

10

82954

Dual Box System  Single Lever w/Hammer Arresters, 1/2″ F1960

MB1211SLHACP

10

83175

Dual Box System w/Hammer Arresters, 1/2″REHAU EVERLOC+

MB1205HACP

10

Don’t see the box you need? Call Customer Service at 800-888-8312.
