MultiBox™ Washing Machine Outlet Box with Auxiliary Drain Box

Product Description and Features

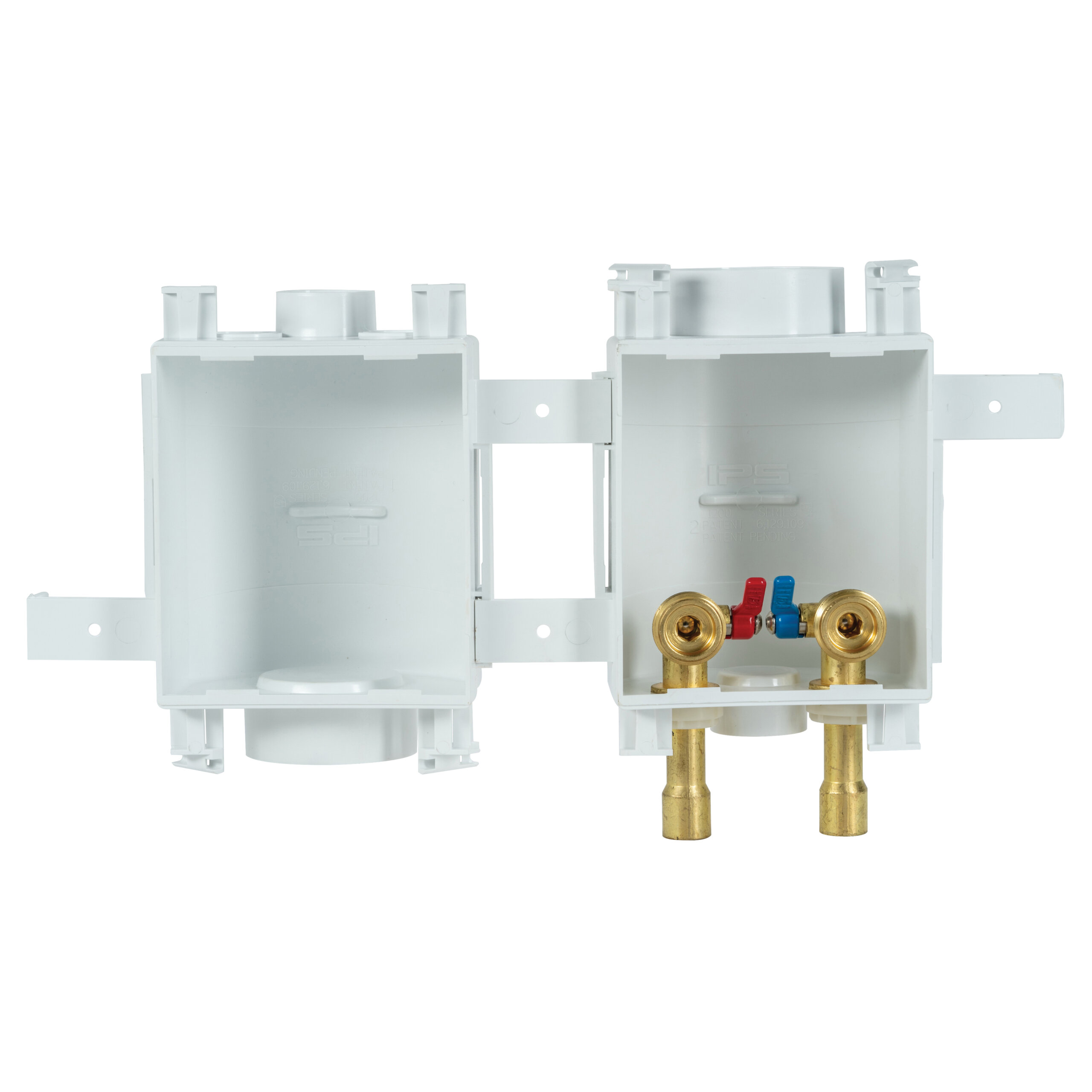

Designed with separate valve and drain boxes, the Water-Tite MultiBox Washing Machine Outlet Box with Auxiliary Drain Box gives homeowners expanded functionality for laundry rooms. This dual-box unit has a valve box with an optional DWV (drain, waste, and vent) drain to capture hose leaks and a drain box with a standard 2-inch drain. The dual-box system features integrated mounting flanges for easy installation, as well as top and bottom stabilizer-bar slots and nail slots for optional extra support. This outlet-box unit comes with two pre-installed supply valves that are durable forged brass and have an anti-rotational design, making them long-lasting and easy to access and use. The included faceplates (6-1/2 inches wide by 6-7/8 inches high) are interchangeable with all MultiBox outlet boxes and are able to accommodate up to two sheets of 5/8-inch drywall. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

  • Mounting flanges - no clips to lose or hassle with
  • Top and bottom stabilizer bar slots
  • Nail slots
  • Nine valve knock-outs
  • Two drain knock-outs: 2" in standard washing machine drain, optional 1" to pipe valve box to DWV system
  • Integrated drain knock outs will not fall down the drain after DWV test
  • Anti-rotational valve design
  • Faceplates fit any box configuration, including fire-rated
  • All faceplates fit up to two sheets of 5/8" drywall
  • Standard faceplate includes cable tie bosses to secure drain hose
  • ETL Certified
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs

82906

Two Box WMOB System, Qtr-turn Valves, 1/2″ Sweat Conx.

MB1200

10

82907

Two Box WMOB System, Qtr-turn Valves, 1/2″ CPVC Conx.

MB1201

10

82908

Two Box WMOB System, Qtr-turn Valves, 1/2″ PEX Conx.

MB1202

10

82909

Two Box WMOB System, Qtr-turn Valves, 1/2″ Wirsbo Conx.

MB1211

10

83028

Two Box WMOB System, Qtr-turn Valves, 1/2″ F3347 Conx.

MB1222

10

83172

Two Box WMOB System, Qtr-turn Valves, REHAU EVERLOC+™ Conx.

MB1205

10

Hammer Arrester Contractor Packs

82910

Two Box WMOB System, Qtr-turn Valves, 1/2″ Sweat Conx.

MB1200CP

10

82911

Two Box WMOB System, Qtr-turn Valves, 1/2″ CPVC Conx.

MB12001P

10

82912

Two Box WMOB System, Qtr-turn Valves, 1/2″ PEX Conx.

MB1202CP

10

82913

Two Box WMOB System, Qtr-turn Valves, 1/2″ Wirsbo Conx.

MB1211CP

10

83173

Two Box WMOB System, Qtr-turn Valves, REHAU EVERLOC+™ Conx.

MB1205CP

10

Don’t see the box you need? Call Customer Service at 800-888-8312.
