MultiBox™ Washing Machine Outlet Box with Hammer Arresters

Product Description and Features

The Water-Tite MultiBox Washing Machine Outlet Box is configured for simple and secure installation, making it a reliable choice for contractors and homeowners. This single-box unit has multiple valve knockouts and two drains: one for a standard 2-inch washing machine drain and an optional 1-inch drain to pipe the box to the DWV (drain, waste, and vent) system. The supply valves come pre-installed and are durable forged brass with an anti-rotational design. They feature integrated hammer arresters that absorb sudden pressure changes to reduce stress on the plumbing system, providing continuous and maintenance-free protection against water hammer. This one-piece washing machine outlet box features integrated mounting flanges and can be installed more quickly than separate drain and valve boxes. It comes with a snap-on faceplate (6-1/2 inches wide by 6-7/8 inches high) that is interchangeable with all MultiBox outlet boxes and is able to accommodate up to two sheets of 5/8-inch drywall. The box has top and bottom stabilizer-bar slots and nail slots for optional extra support. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

  • For top mount water supply
  • Mounting flanges - no clips to lose or hassle with
  • Top and bottom stabilizer bar slots
  • Nail slots
  • Nine valve knock-outs
  • Two drain knock-outs: 2" in standard washing machine drain, optional 1" to pipe valve box to DWV system
  • Integrated drain knock outs will not fall down the drain after DWV test
  • Anti-rotational valve design
  • Faceplates fit any box configuration, including fire-rated
  • All faceplates fit up to two sheets of 5/8" drywall
  • Standard faceplate includes cable tie bosses to secure drain hose
  • ETL Certified
  • California Residents: WARNING – www.P65warnings.ca.gov

SPEC SHEET

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Hammer Arrester Standard Packs

82898

Single Box System w/Hammer Arresters, 1/2″ Sweat

MBS1200HA

10

82899

Single Box System w/Hammer Arresters, 1/2″ CPVC

MBS1201HA

10

82900

Single Box System w/Hammer Arresters, 1/2″ F1807

MBS1202HA

10

82901

Single Box System w/Hammer Arresters, 1/2″ F1960

MBS1211HA

10

83168

Single Box System w/Hammer Arresters, 1/2″ REHAU EVERLOC+

MBS1205HA

10

 Hammer Arrester Contractor Packs

82902

Single Box System w/Hammer Arresters, 1/2″ Sweat

MBS1200HACP

10

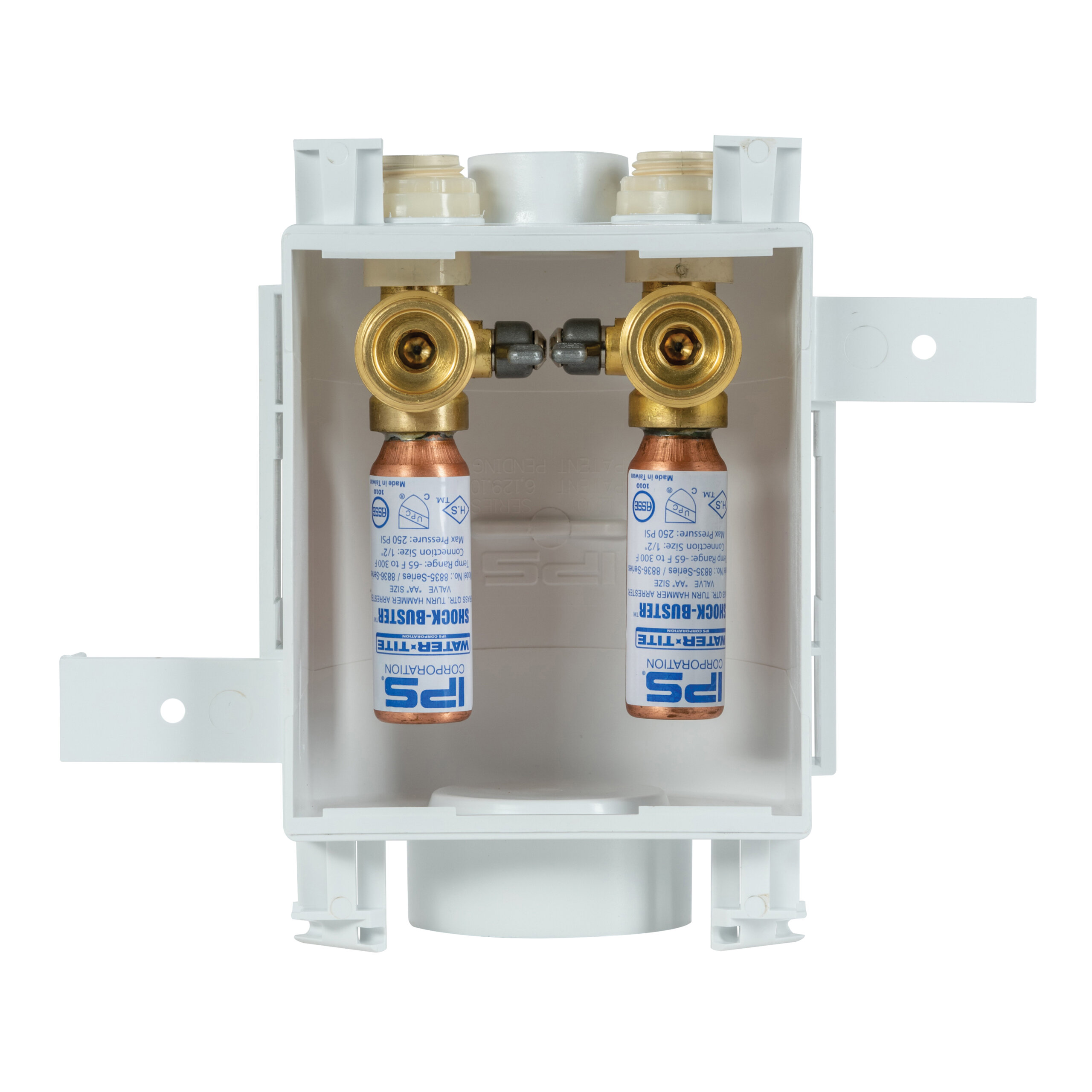

82903

Single Box System w/Hammer Arresters, 1/2″ CPVC

MBS1201HACP

10

82904

Single Box System w/Hammer Arresters, 1/2″ F1807

MBS1202HACP

10

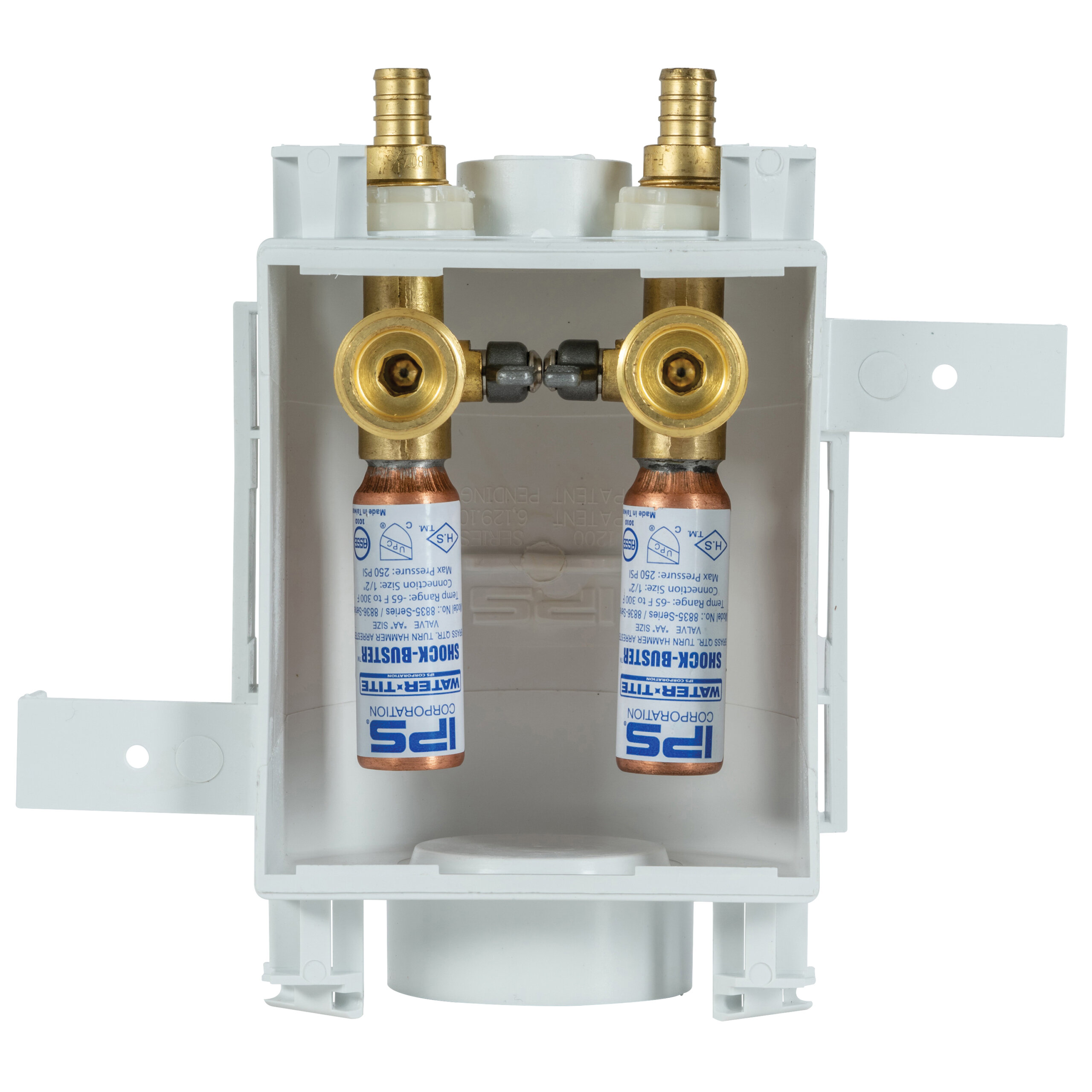

82905

Single Box System w/Hammer Arresters, 1/2″ F1960

MBS1211HACP

10

83169

Single Box System w/Hammer Arresters, 1/2″ REHAU EVERLOC+

MBS1205HACP

10



House Pack: Washing Machine Outlet Box and Ice Maker Outlet Box with Hammer Arrester

82969

Single Box System and Ice Maker Box, F1807

MBSAB1202HACP

10

82973

Single Box System and Ice Maker Box, F1960

MBSAB1211HACP

10

Don’t see the box you need? Call Customer Service at 800-888-8312.
