Econo Center Drain Washing Machine Outlet Boxes

Product Description and Features

Designed for simple yet versatile installation, the Water-Tite Econo Box Center-Drain Washing Machine Outlet Box is thoughtfully constructed to reduce labor for contractors and homeowners. This outlet box comes with pre-installed quarter-turn brass valves and features a design that can be inverted for top-mount valves with a center drain. Thanks to a single-piece construction that includes a raised drip guard, any potential hose or valve leaks will be contained and sent directly down the drain instead of onto the laundry room wall and floor. The EZ Out test cap is raised for quick removal, and the knockouts are oversized, so they won’t fall down the drain.Featuring a one-piece design, this washing machine outlet box can be installed more quickly than separate drain and valve boxes. It comes with a snap-on faceplate that measures 10-3/16 inches wide by 8-13/16 inches high and is interchangeable with DU-All outlet-box faceplates. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

  • Box can be inverted for top mount valves/center drain option.
  • Textured faceplate for aesthetic finish.
  • Valves pre-installed.
  • One piece construction with raised drip guard contains potential leaks down the drain.
  • Raised EZ Out Test Caps allow for EZ Removal.
  • Oversized KO’s will not fall down drain.
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs

82064

Brass Qtr-turn Valves, Installed, 1/2″ Sweat Conx.

W4700

10

82066

Brass Qtr-turn Valves, Installed, 1/2″ CPVC Conx.

W4701

10

82068

Brass Qtr-turn Valves, Installed, 1/2″ F1807 Conx.

W4702

10

82003

Brass Qtr-turn Valves, Installed, 1/2″ F1960 Conx.

W4711

10

82308

Brass Qtr-turn Valves, Installed, 1/2″ Viega Conx.

W4722

10

82752

Brass Qtr-turn Valves, Installed, 1/2″ REHAU EVERLOC+™

W4705

10

87203

Washer Box Only – No Valves, 1-1/2″ x 2″ Coupling

W4015

10

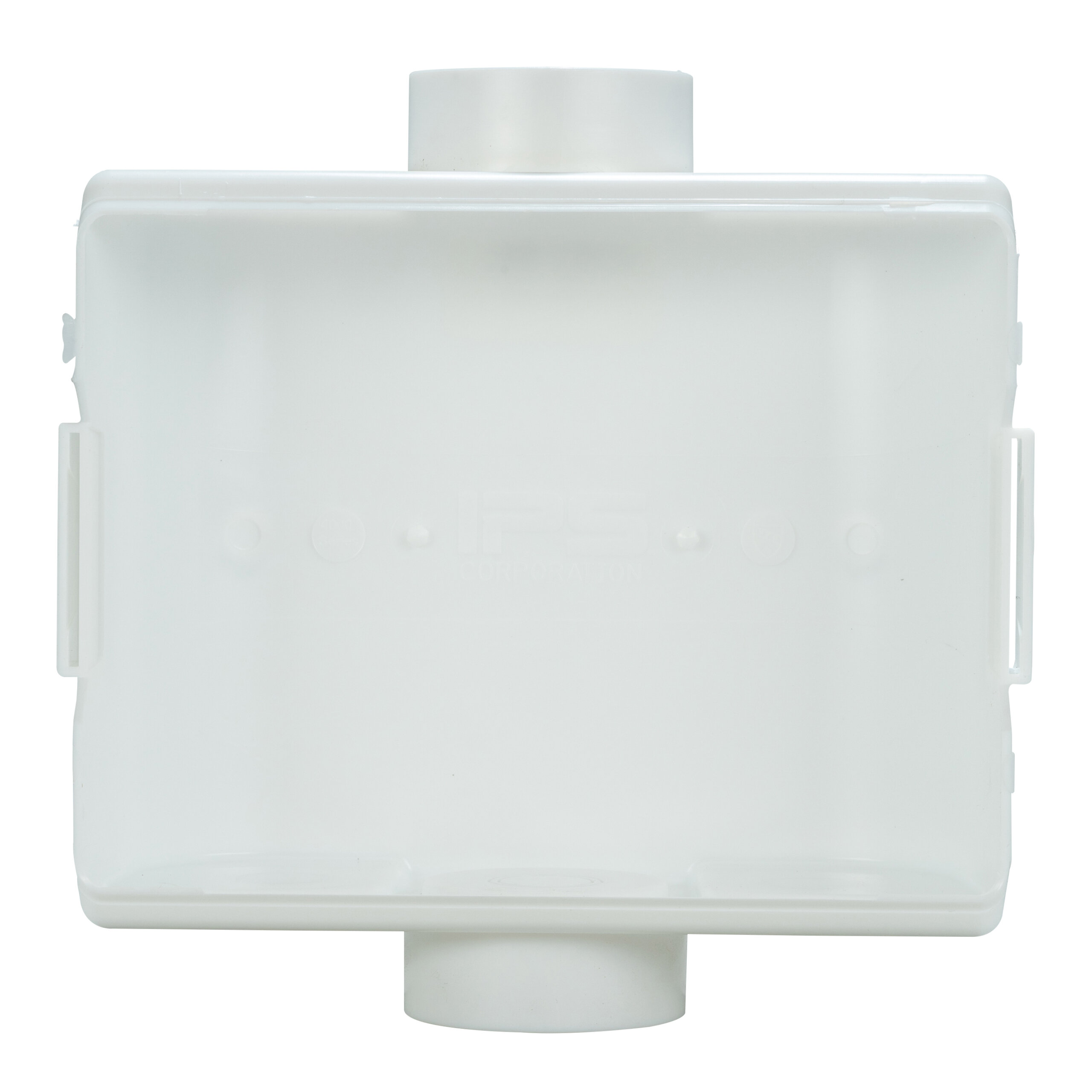

87204

Washer Box Only – No Valves

W4012

10

Contractor Packs

82065

Brass Qtr-turn Valves, Installed, 1/2″ Sweat Conx.

W4700CP

20

82067

Brass Qtr-turn Valves, Installed, 1/2″ CPVC Conx.

W4701CP

20

82069

Brass Qtr-turn Valves, Installed, 1/2″ F1807 Conx.

W4702CP

20

82004

Brass Qtr-turn Valves, Installed, 1/2″ F1960 Conx.

W4711CP

20

82753

Brass Qtr-turn Valves, Installed, 1/2″ REHAU EVERLOC+™

W4705CP

20

Center Drain Display Pack

81977

Brass Qtr-turn Valves, Installed 1/2″ F1807

R4702

4

89267

Replacement Faceplate 1

W7070

1

Don’t see the box you need? Call Customer Service at 800-888-8312.
