Right-hand Wide-Mouth Outlet Boxes

Product Description and Features

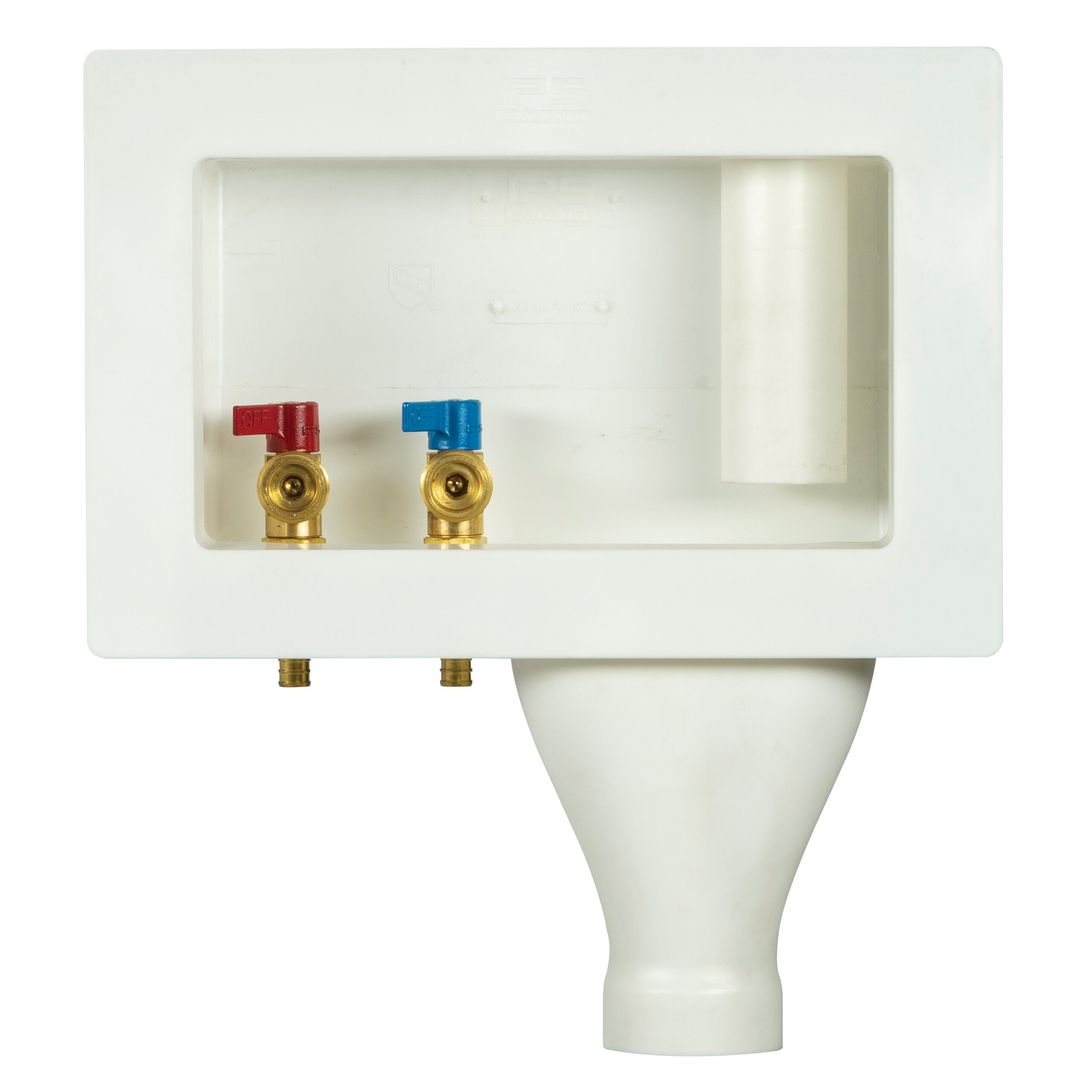

Featuring a wide-mouth opening for draining auxiliary appliances in the DWV (drain, waste, and vent) system, the Water-Tite Right-Hand-Drain Wide-Mouth Washing Machine Outlet Box is a reliable choice for connecting your washing machine to water lines and drain piping. This drain box features two valves and one drain outlet with an integrated drain-line partition that separates the washer discharge hose and the auxiliary discharge line. A discharge guide tube holds the discharge line firmly in place and protects against splashes. For easy installation across the stud bay, four mounting brackets are included with the outlet box. The one-piece molded test cap is specially designed to prevent it from falling down the drain after it has been knocked out. The Water-Tite Right-Hand-Drain Wide-Mouth Washing Machine Outlet Box comes with a faceplate that measures 13 inches wide by 8-5/8 inches high. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.

  • Wide Mouth Opening for Drainage of Auxiliary Line
  • Right Hand and Left Hand Drain Outlets Available
  • Drain Line partition for separation of washer discharge hose and auxiliary discharge line
  • Discharge guide tube holds discharge line firmly and protects against splashes
  • One Drain Outlet--No additional fittings
  • One piece molded in test cap will not fall down drain line
  • Four Mounting Brackets included
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

Standard Packs

87351

Brass Qtr-turn Valves, Installed, 1/2″ Sweat Conx.

W8900

10

87355

Brass Qtr-turn Valves, Installed, 1/2″ CPVC Conx.

W8901

10

87359

Brass Qtr-turn Valves, Installed, 1/2″ F1807 Conx.

W8902

10

87378

Brass Qtr-turn Valves, Installed, 1/2″ F1960 Conx.

W8911

10

87349

Brass Qtr-turn Valves, Uninstalled, 1/2″ Sweat Conx.

W8912

10

87386

Brass Qtr-turn Valves, Uninstalled, 1/2″ F1960 Conx.

W8411

10

82771

Brass Qtr-turn Arrester Valves, Installed, 1/2″ REHAU EVERLOC+™

W8905

10

87363

Single-lever Valve, Installed, 1/2″ Sweat Conx.

W8904

10

Contractor Packs

87353

Brass Qtr-turn Valves, Installed, 1/2″ Sweat Conx.

W8900CP

10

87357

Brass Qtr-turn Valves, Installed, 1/2″ CPVC Conx.

W8901CP

10

87361

Brass Qtr-turn Valves, Installed, 1/2″ F1807 Conx.

W8902CP

10

87379

Brass Qtr-turn Valves, Installed, 1/2″ F1960 Conx.

W8911CP

10

82772

Brass Qtr-turn Valves, Installed, 1/2″ REHAU EVERLOC+™

W8905CP

10

87365

Single-lever Valve, Installed, 1/2″ Sweat Conx.

W8904CP

10

87398

Single-lever Valve, Installed, 1/2″ F1960 Conx.

W8914CP

10

87435

Wide Mouth WMOB, Uninstalled – 1/2″ Pex Conx., Knockouts for Top or Bottom Mount

W8902KOCP

10

87385

Brass Qtr-turn Valves, Installed, Top-mount, 1/2″ Sweat Conx.

W8900CPTM

10

87383

Brass Qtr-turn Valves, Installed, Top-mount, 1/2″ CPVC Conx.

W8901CPTM

10

87384

Brass Qtr-turn Valves, Installed, Top-mount, 1/2″ F1807 Conx.

W8902CPTM

10

87382

Brass Qtr-turn Valves, Installed, Top-mount, 1/2″ F1960 Conx.

W8911CPTM

10

89277

Replacement Faceplate 1

89277

1

Don’t see the box you need? Call Customer Service at 800-888-8312.
