Classic Half Kits with Test Kit – PVC with Touch Toe Stopper

Schedule 40 Waste & Overflow

Product Description and Features

The AB&A Classic Waste and Overflow Half Kit includes everything you need to replace or install a new waste and overflow system in your bathtub with your existing piping. Compatible with Schedule 40 PVC piping, this half kit includes a high-flow-capacity overflow plate that is slotted to provide greater drainage through the tub overflow, draining water at a rate of 7 GPM (gallons per minute) compared to the output of a typical tub spout of 5-6 GPM. The Toe Touch Stopper allows for easy plugging and unplugging of the tub drain. Designed for quick, tool-free installation, this waste and overflow kit features a convenient push-on overflow cover plate that secures to the overflow elbow with a simple push for a snug fit against the tub wall. An additional thin gasket is included for thick-walled tubs made of material such as marble, as well as a test kit that allows the waste and overflow system to be pressure tested for safety. AB&A waste and overflow kits are available in full, half, rough/trim, and finish kit configurations and in a variety of finishes to complement today’s designs and customer preferences, delivering consistent high quality in both new construction and retrofit markets.

  • “Classic” high-flow capacity slotted overflow plate provides greater drainage through the tub overflow
  • Thin gasket included for thick-walled tubs (e.g. marble)
  • Strainer and stopper are brass unless noted
  • California Residents: WARNING – www.P65warnings.ca.gov

PRODUCT

DESCRIPTION

MODEL

UNITS/CASE

PVC with Touch Toe Stopper with Classic Test Kit

62013

Chrome

ABA2235CSHF

20

62014

Satin Nickel

ABA2239SNCSHF

6

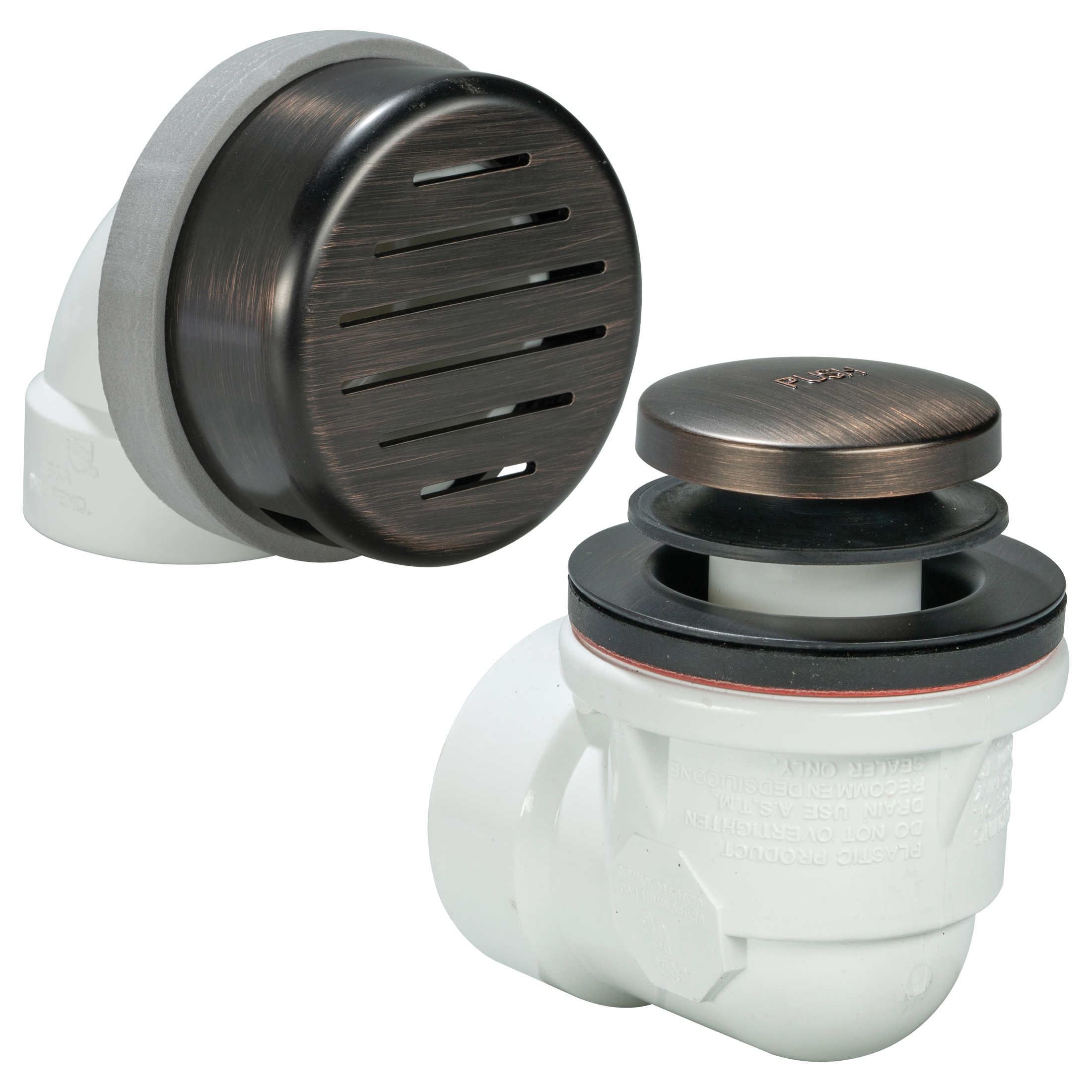

62124

Venetian Bronze

ABA2239VBCSHF

6

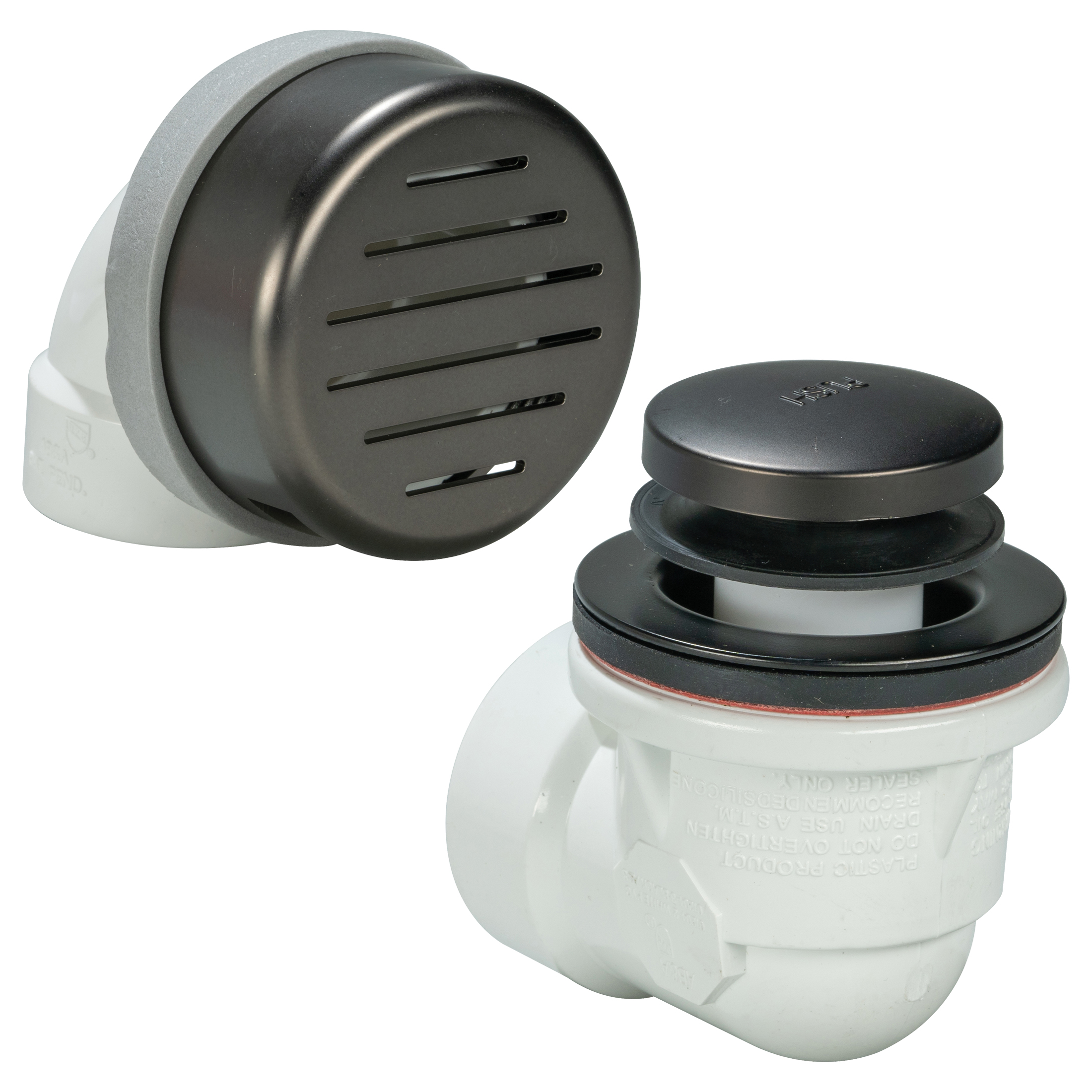

62117

Oil Rubbed Bronze

ABA2239ORBCSHF

6

Don’t see the box you need? Call Customer Service at 800-888-8312.
