MultiBox™ Fire-Rated Kitchen Outlet Box

Product Description and Features

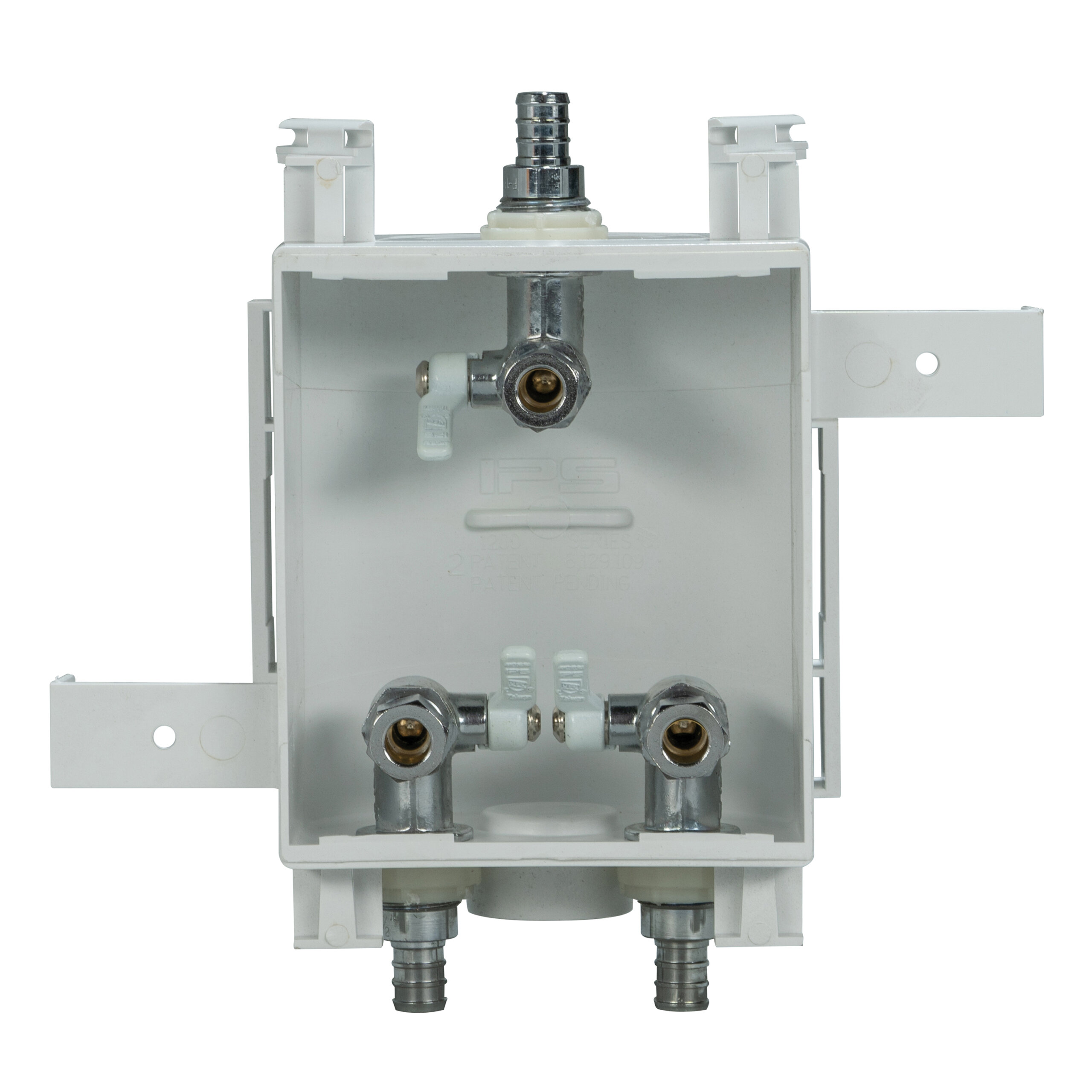

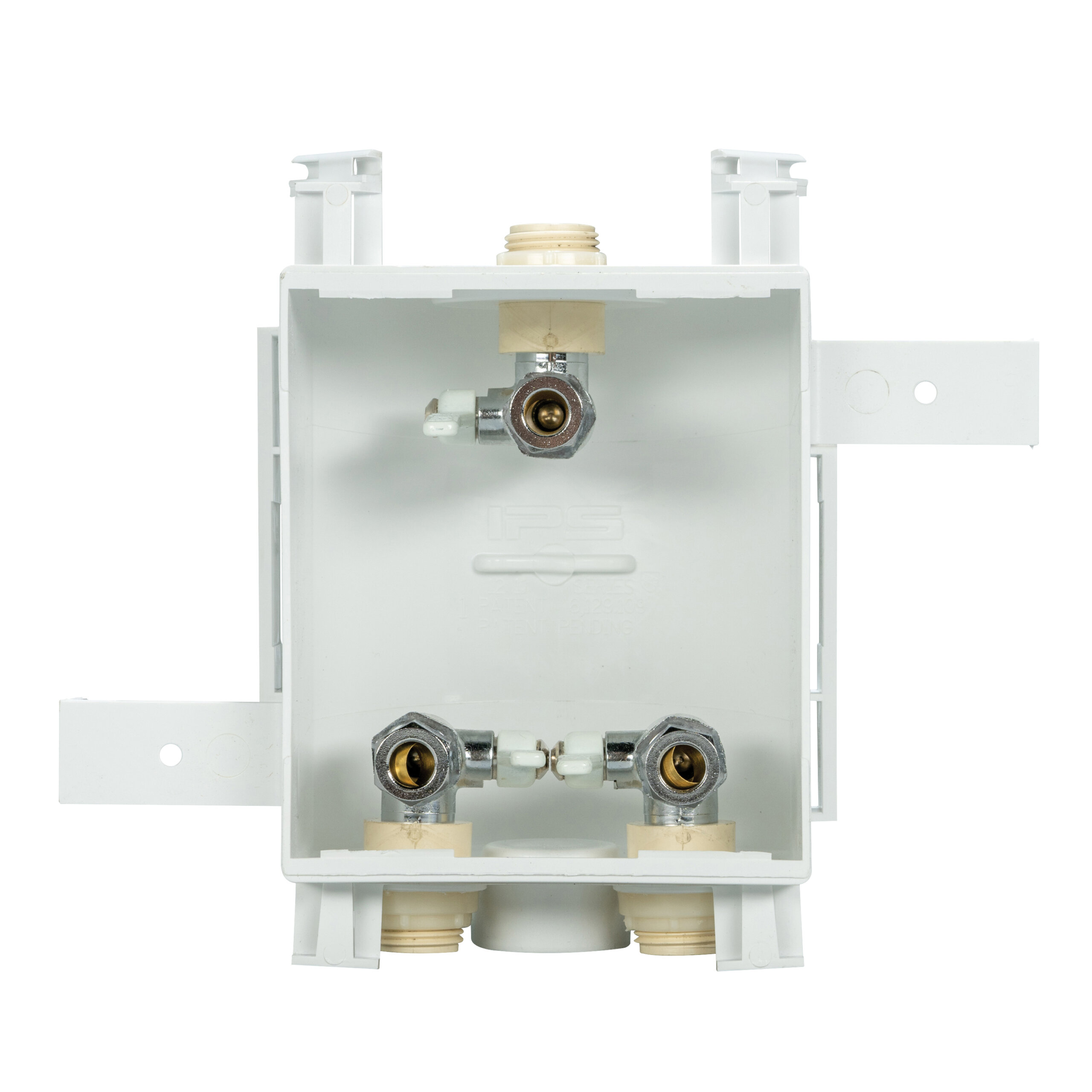

The Water-Tite MultiBox Fire-Rated Kitchen Outlet Box gives contractors a versatile option for connecting a variety of popular appliances in homes or businesses. This outlet box is ETL Certified and fire rated for both one- and two-hour-rated walls. It features an intumescent pad attached to the back of the box that swells in the event of fire, acting as an insulator to prevent excessive heat from passing through the structure. This single-box unit includes three pre-installed quarter-turn brass valves that comply with NSF 61-G requirements. The outlet box has integrated mounting flanges for easy installation, as well as top and bottom stabilizer-bar slots and nail slots for optional extra support. The included extra-large faceplate (6-1/2 inches wide by 6-7/8 inches high) provides breaklines for a custom fit to cabinetry and an extra 1 inch of coverage for potential rough cuts.

• Intumescent pad attached to back of outlet box
• Extra deep frame allows space for cabinetry
• Easily and quickly mounts to stud with integrated mounting flanges
• Available with three standard qtr.-turn valves or two standard qtr-turn valves and one hammer arrester valve
• Includes top and bottom stabilizer bar slots for additional securement options
• 1 hr & 2hr rated
• Warnock Hersey certified
• Easily and quickly mounts to stud with integrated mounting flanges
• California Residents: WARNING – www.P65warnings.ca.gov

• Kitchen Boxes Flyer
• Specification Sheet
• Hammer Arrester Specification Sheet
• MultiBox Fire Rated Design Specification Sheet
