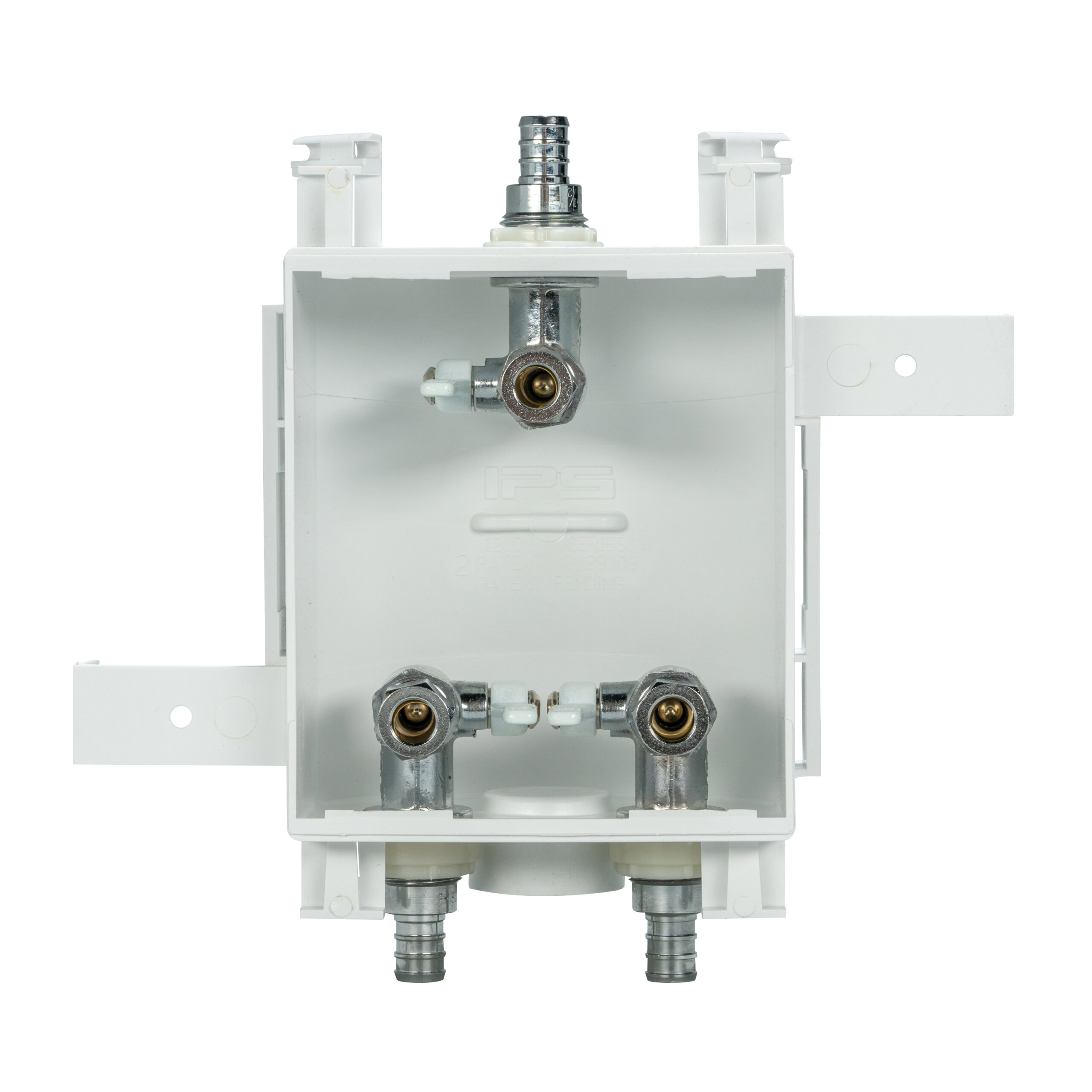

MultiBox™ Kitchen Outlet Box
Product Description and Features
The Water-Tite MultiBox Kitchen Outlet Box gives contractors a versatile option for connecting a variety of popular appliances in homes or businesses. This outlet box includes three pre-installed quarter-turn brass valves that are lead free and comply with NSF 61-G requirements. The box has integrated mounting flanges for easy installation, as well as top and bottom stabilizer-bar slots and nail slots for optional extra support. The included extra-large faceplate (6-1/2 inches wide by 6-7/8 inches high) provides breaklines for a custom fit to cabinetry and an extra 1 inch of coverage for potential rough cuts.
- Mounting flanges - no clips to lose or hassle with
- Top and bottom stabilizer bar slots
- Nail slots
- Nine valve knock-outs
- Two drain knock-outs: 2" in standard washing machine drain, optional 1" to pipe valve box to DWV system
- Integrated drain knock outs will not fall down the drain after DWV test
- Anti-rotational valve design
- Faceplates fit any box configuration, including fire-rated
- All faceplates fit up to two sheets of 5/8" drywall
- Standard faceplate includes cable tie bosses to secure drain hose
- California Residents: WARNING – www.P65warnings.ca.gov
|
PRODUCT |
DESCRIPTION |
MODEL |
UNITS/CASE |
|
83195 |
Three 3/8″ Outlet Valves, 1/2″ Sweat |
ASDW1200 |
10 |
|
83196 |
Three 3/8″ Outlet Valves, 1/2″ CPVC |
ASDW1201 |
10 |
|
83197 |
Three 3/8″ Outlet Valves, 1/2″ F1807 |
ASDW1202 |
10 |
|
83198 |
Three 3/8″ Outlet Valves, 1/2″ F1960 |
ASDW1211 |
10 |
|
83384 |
Three 3/8″ Outlet Valves, 1/2″ REHAU EVERLOC+™ |
ASDW1205 |
10 |
Don’t see the box you need? Call Customer Service at 800-888-8312.
