MultiBox™ Washing Machine Outlet Box
Product Description and Features
The Water-Tite MultiBox Washing Machine Outlet Box is configured for simple and secure installation, making it a reliable choice for contractors and homeowners. This single-box unit has multiple valve knockouts and two drains: one for a standard 2-inch washing machine drain and an optional 1-inch drain to pipe the box to the DWV (drain, waste, and vent) system. The supply valves come pre-installed and are durable forged brass with an anti-rotational design, making them long-lasting and easy to access and use. This one-piece washing machine outlet box features built-in mounting flanges and can be installed more quickly than separate drain and valve boxes. It comes with a snap-on faceplate (6-1/2 inches wide by 6-7/8 inches high) that is interchangeable with all MultiBox outlet boxes and is able to accommodate up to two sheets of 5/8-inch drywall. The box has top and bottom stabilizer-bar slots and nail slots for optional extra support. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.
- For top mount water supply
- Mounting flanges - no clips to lose or hassle with
- Top and bottom stabilizer bar slots
- Nail slots
- Nine valve knock-outs
- Two drain knock-outs: 2" in standard washing machine drain, optional 1" to pipe valve box to DWV system
- Integrated drain knock outs will not fall down the drain after DWV test
- Anti-rotational valve design
- Faceplates fit any box configuration, including fire-rated
- All faceplates fit up to two sheets of 5/8" drywall
- Standard faceplate includes cable tie bosses to secure drain hose
- ETL Certified
- California Residents: WARNING – www.P65warnings.ca.gov
|
PRODUCT |
DESCRIPTION |
MODEL |
UNITS/CASE |
|
82890 |
WMOB, Qtr-turn Valves, 1/2″ Sweat Connection |
MBS1200 |
10 |
|
82891 |
WMOB, Qtr-turn Valves, 1/2″ CPVC Connection |
MBS1201 |
10 |
|
82892 |
WMOB, Qtr-turn Valves, 1/2″ PEX Connection |
MBS1202 |
10 |
|
82893 |
WMOB, Qtr-turn Valves, 1/2″ Wirsbo Connection |
MBS1211 |
10 |
|
83027 |
WMOB, Qtr-turn Valve, 1/2″ F3347 Connection |
MBS1222 |
10 |
|
83166 |
WMOB, Qtr-turn Valves, REHAU EVERLOC+™ Connection |
MBS1205 |
10 |
|
Contractor Packs |
|||
|
82894 |
WMOB, Qtr-turn Valves, 1/2″ Sweat Connection, Contractor Pack |
MBS1200CP |
10 |
|
82895 |
WMOB, Qtr-turn Valves, 1/2″ CPVC Connection, Contractor Pack |
MBS1201CP |
10 |
|
82896 |
WMOB, Qtr-turn Valves, 1/2″ PEX Connection, Contractor Pack |
MBS1202CP |
10 |
|

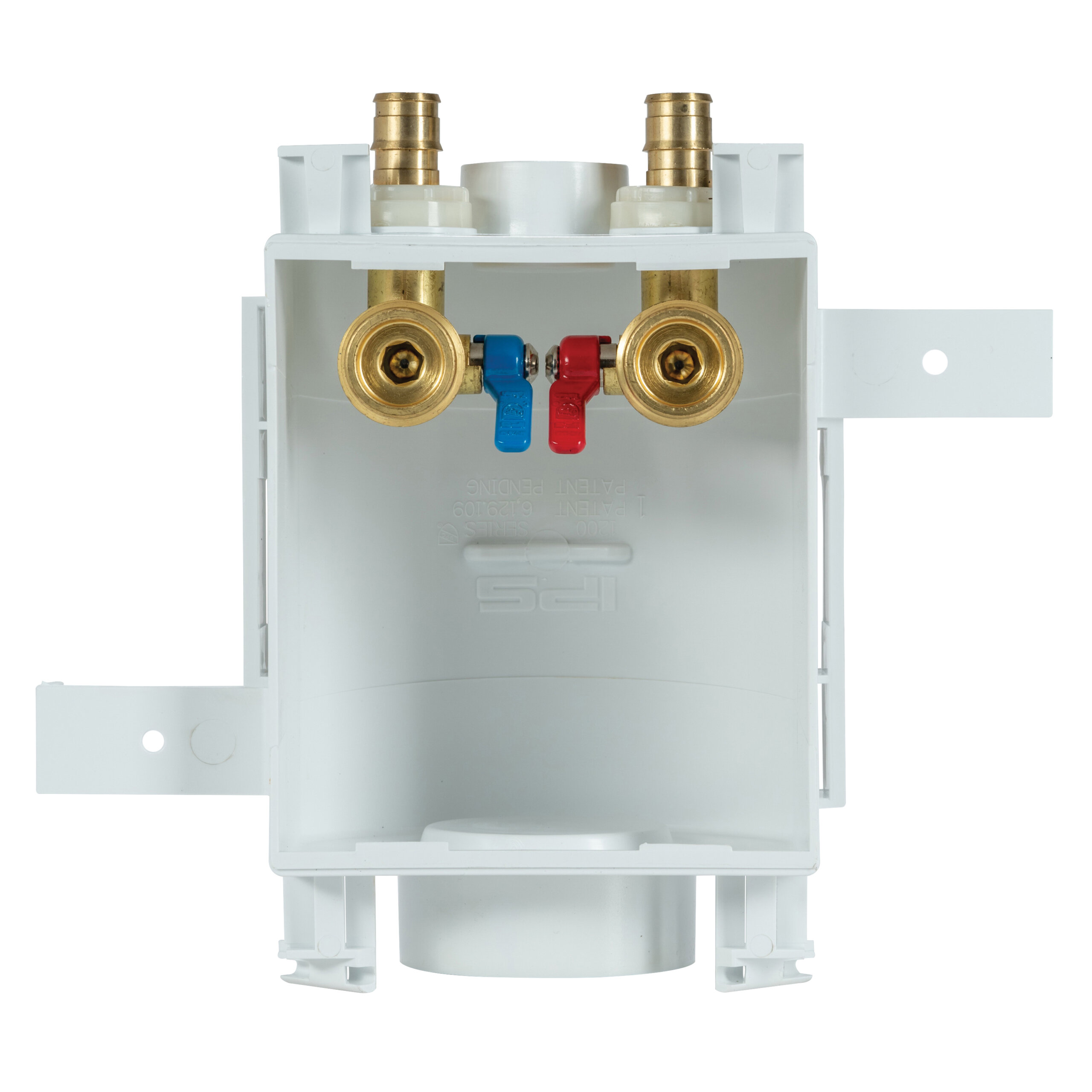

82897 |
WMOB, Qtr-turn Valves, 1/2″ Wirsbo Connection, Contractor Pack |
MBS1211CP |
10 |
|
83167 |
WMOB, Qtr-turn Valves, REHAU EVERLOC+™ Connection, Contractor Pack |
MBS1205CP |
10 |
|
Less Frame |
|||
|
83031 |
WMOB, Qtr-turn valves, 1/2″ CPVC Connection, Less Frame |
MBS1201LF |
10 |
Don’t see the box you need? Call Customer Service at 800-888-8312.
